ASHLEY YACHT

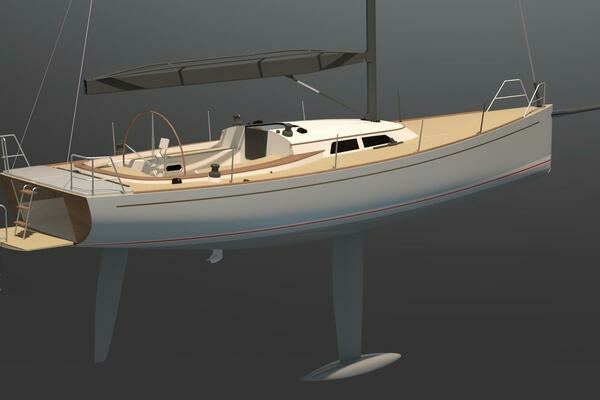

2023 Custom 41' (12.50 m) Rapide 41 | 41ft

Name: 2023 Custom 41' (12.50 m) Rapide 41
Brand: Custom
SKU: 1673
Price: 700000 USD
Availability: InStock

South Carolina, United States

$700,000USD

Broker Info

ASHLEY YACHT

Boat Highlights:

Year of Vessel

2023

Fuel Type

DIESEL

Length

41 ft

Manufacturer

Custom

Condition

New

Boat Type

Sail

Description
Specifications

Description

This is an advertisement for a new, custom boat built to the buyer's specification.

Born and designed as a one-off, Vortec Marine's Rapide 41 laid the foundation for a fantastic design that has now been expanded to include 55, 70, and 100-foot yachts.

Vortec, sensing a void in the market for exactly what the owner of the first Rapide 41 was looking for, saw an opportunity to work alongside in-demand designer Mark Mills to create a truly remarkable new sailing yacht.

Deck and Hull

Composite sandwich hull and deck construction
CoreCell linear SAN foam core
Biaxial and uni-directional E-glass fabrics with high density core blocking
Lifting Keel (6'11" - 10'6")
Approximate hull laminate:
Outer skin = 1250 gsm
Inner skin = 900 gsm
Core = 25mm 80 kg with 100 kg in slamming areas
Shell weight = 650 kg
Engineered and built to meet or exceed ISO 12217 Plan Approval
Keel floors, case, and mast step molded composite
Hydraulic lifting S.S. fabricated keel fin with composite fairings with:
2000kg antimony/lead bulb.
Painted hull and deck finish
Bonded hull to deck joint with flush mount rails, stanchions & hardware
Toe rail to ORC requirements
Composite structural bulkheads bonded to hull and deck
Molded engine bed
Recessed hatch garage
Halyards recessed into coachroof
Molded propane locker, vented into cockpit
Opening transom door
Opening hatches above transom space
Teak deck, seats, cockpit floor

Spars and Rigging

Carbon mast – 2 swept spreader / no runners
Carbon boom with mainsail supports, 16:1 internal outhaul, mainsail reef clutches and sheaves, mainsheet bail and vang lug
Discontinuous rod rigging and turnbuckles
Double masthead spinnaker halyard sheaves
Double genoa halyard sheaves at hounds
Two genoa halyards
Two spinnaker halyards
Main halyard with SS captive pin shackle
Mainsheet
Traveler control lines
Two mainsail clew reef lines
Carbon-fiber fixed bowsprit
Tack line
Two spinnaker sheets
Two genoa sheets
Integral hydraulic backstay cylinder mounted underdeck
Solid Mechanical Vang
Custom composite chainplates and backstay tang

Propulsion and Steering

Yanmar 3JH5E 39hp 3 cylinder, diesel engine with SD60 saildrive, fresh water cooling, fuel filter, & 80 amp alternator
Molded composite engine surround with 25mm engine insulation for sound-proofing
Yanmar C30 recessed engine instrument panel
Low profile Morse-type manual gearshift and throttle
Gori or Bri-Ski folding racing prop
Balanced spade rudder with carbon fiber stock and self-aligning roller bearings
Composite wheel mounted on pedestal
Alloy emergency tiller

Plumbing

Marine head with both direct and holding tank overboard discharge
Hot & cold pressure water system
Water heater
Head shower with sump pump
Manual bilge pumps in cockpit and below decks
Electric bilge pump

Deck Hardware

Two Harken 60.3STEP 3 speed winches
Two Harken 50.2STEP 2 speed winches
Four winch handles
Mesh line bags with integral winch handle holder
Integrally molded mast collar
Harken deck hardware as shown on deck plan
Spinlock Rope Clutches and stoppers
Stainless double rail open bow pulpit and stern rails
Stainless steel tapered lifeline stanchions, aft 2 pairs with support legs
Three flush mount mooring cleats
Flush foredeck hatch
Opening anchor locker
Four Lewmar Size 1 opening ports
Lexan companionway sliding hatch
Offshore weather boards with inside/ outside opening, lockable hasp
Compass Suunto F-116 or equivalent
Small removable single-leg cockpit table
Remote hydraulic pump for backstay with P&S button controls in cockpit
Swim ladder – removeable
Anchor mounted on deployable arm from anchor locker
Removable anchor windlass

Electrical

Two 4D AGM deep cycle house batteries
One Group 27 engine start battery
Battery condition meter
Custom DC electrical panels w/ 12 circuit breakers
220 VAC shorepower system
12 VDC refrigeration system
LED Navigation & steaming lights
Four swivelling white LED lights
Five red/white LED dome lights
Chart Light
LED indirect lighting
VHF wire to masthead windex/aerial unit

Galley

Polished stainless sink recessed in counter top
Fixed two-burner gas stove with removable worktop
Front-opening refrigerator
Gas bottle in cockpit locker connected through solenoid shutoff switch
Pressure water pump
Swivel faucet pressure water
Dry good storage bins
Storage locker under stove
Three drawers, pot storage and locker
Trash bin

Accommodations

Door into the forward stateroom
Door into enclosed head to port with door forward into stateroom
Hanging lockers port and starboard, lockers/drawers under
Large double V-berth, drawers for storage underneath
Enclosed head with mirrors, storage outboard and under sink, dual purpose shower/sink spigot, and door. Shower sump for easy cleaning and draining
Varnished teak & holly veneer sole with removable panels
Main cabin settee berths with cushions, stowage under
Seatback hinges up to form pilot berth, backrest cushions
Port and Starboard grab rails in main cabin
Double quarter berth to port, single quarter berth to starboard

SAIL BOAT SPECIFICATION

Length Overall

41 ft

Beam

12' 3''

Manufacturer

Custom

Boat Model

41' (12.50 m) Rapide 41

Year Of Vessel

2023

Fuel Type

Diesel

Centerboard Draft Up

10' 6''

Centerboard Draft Down

6' 11''

Main Engine Make

Yanmar

Main Engine Model

3JH5E

Main Engine Horsepower

39.00 each
