2019 Trawler Custom for Sale – 40 ft – Seattle, WA, US

Great NW Cruising Yacht, She Must Be Seen To Be Appreciated.

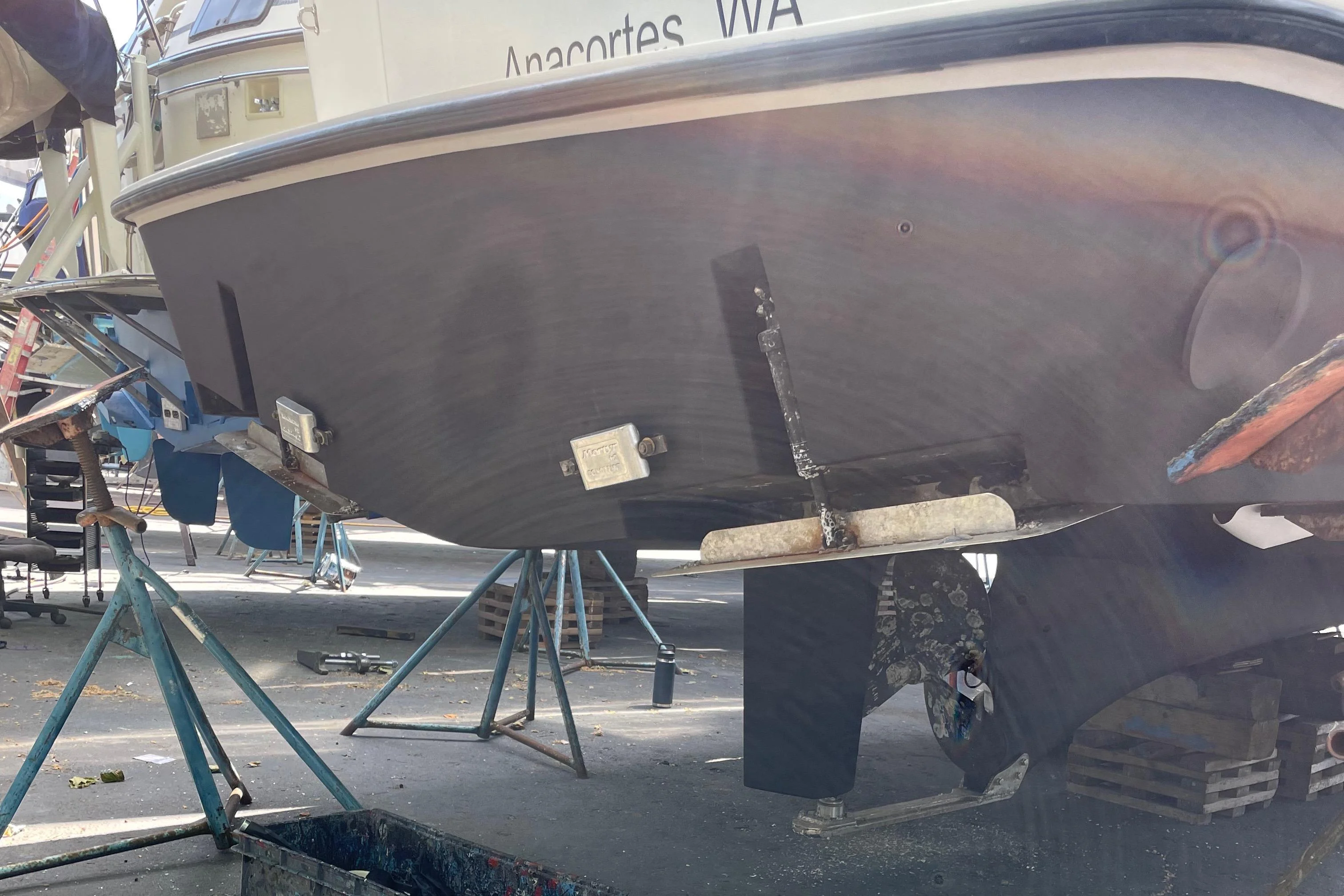

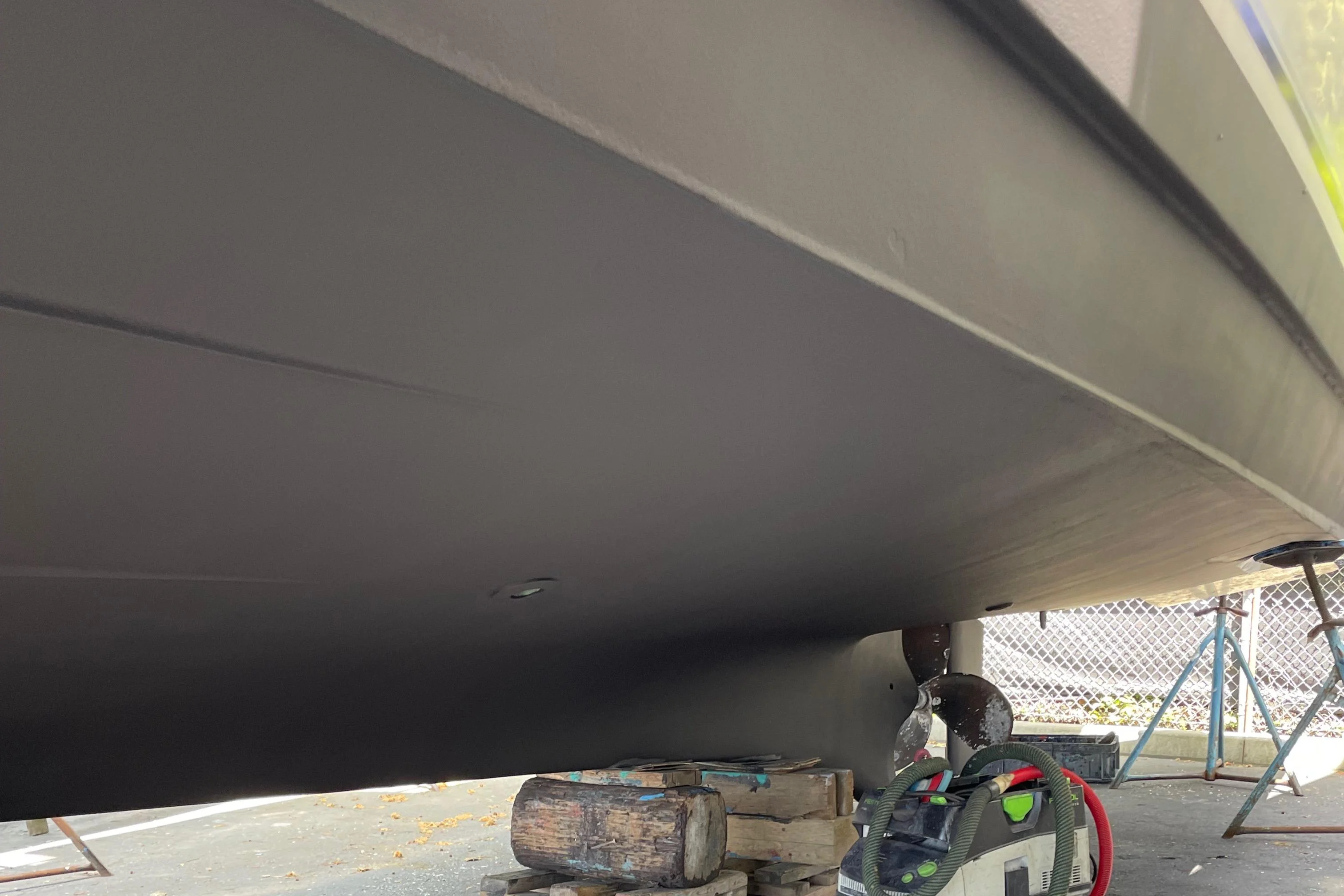

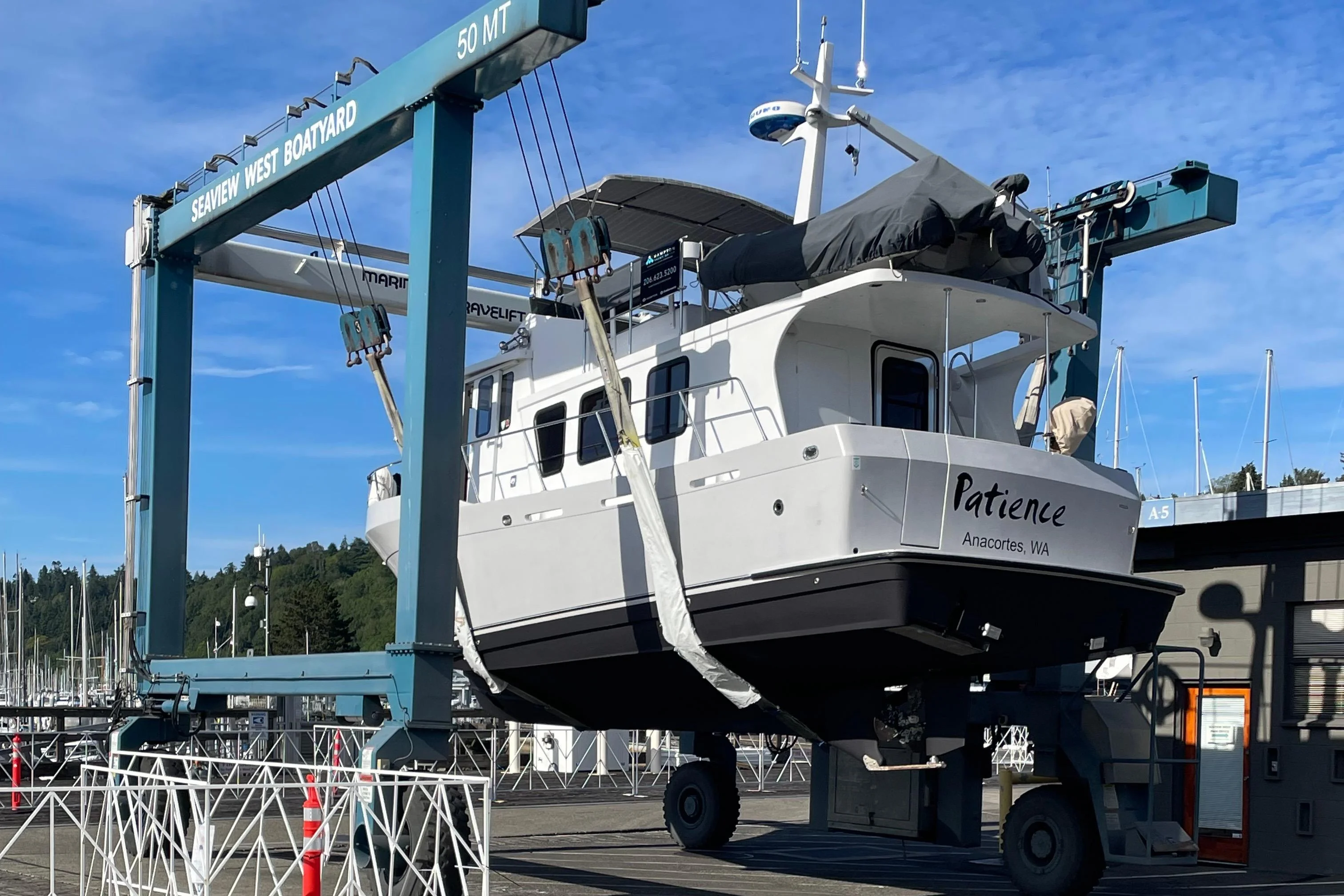

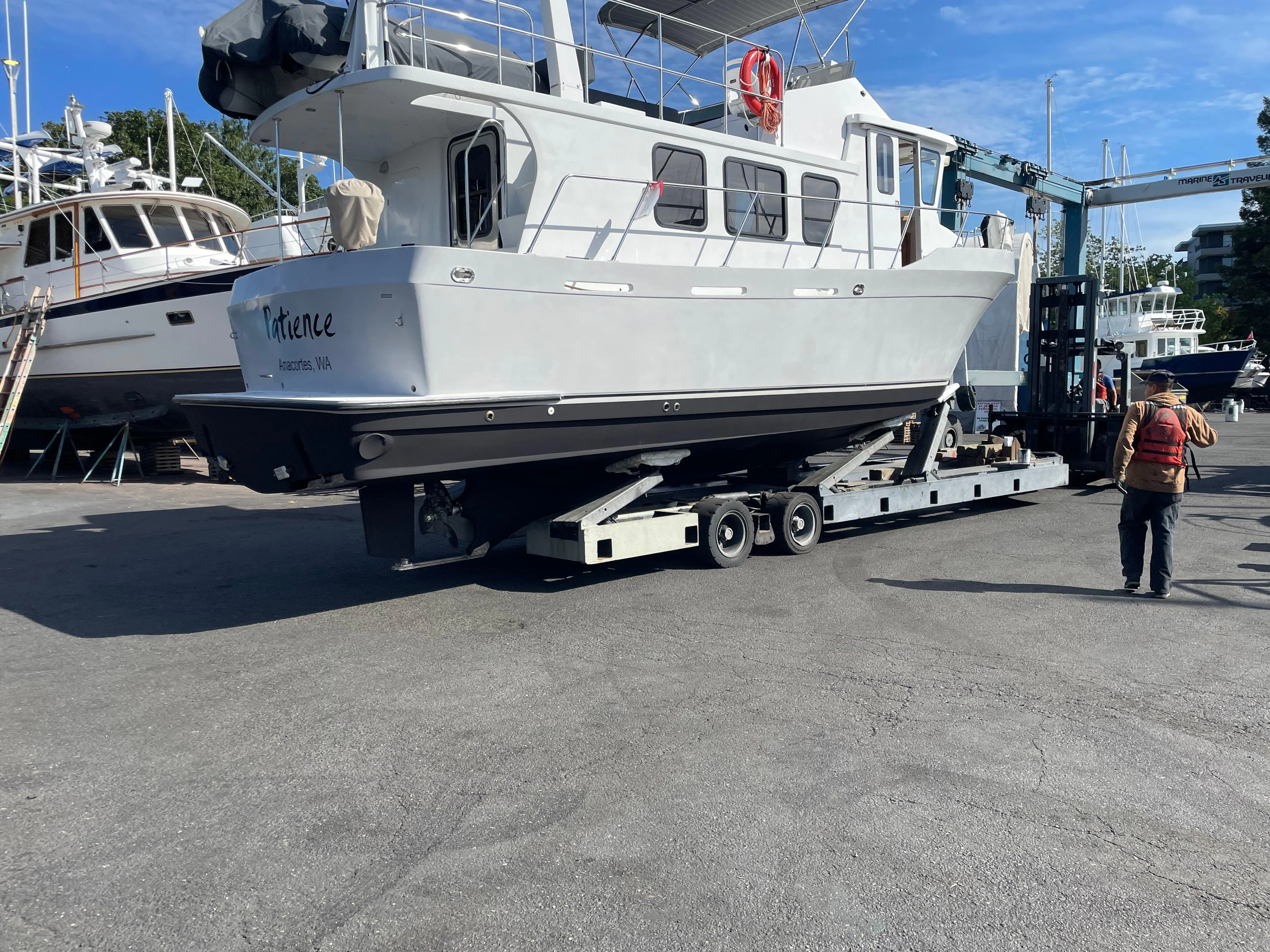

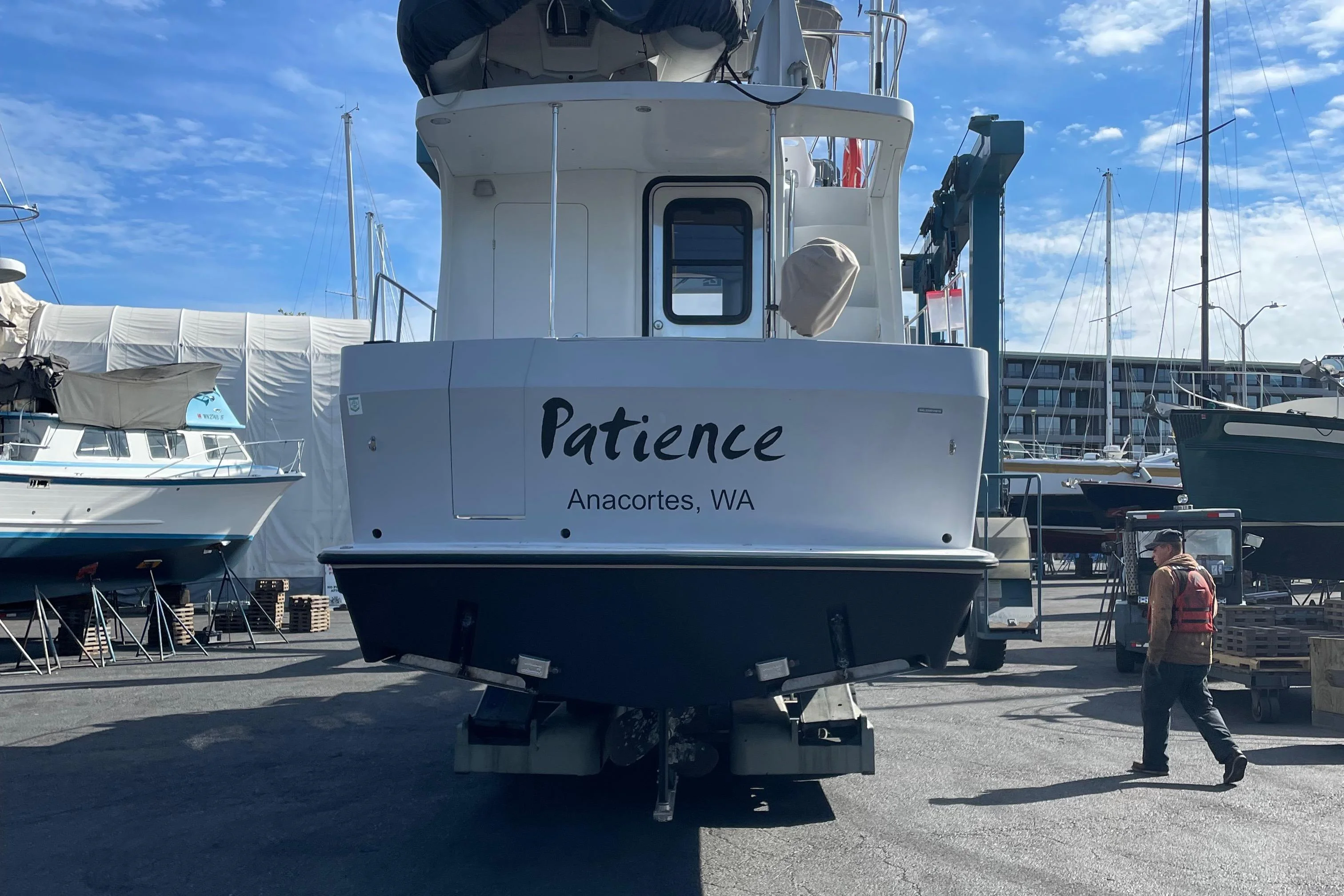

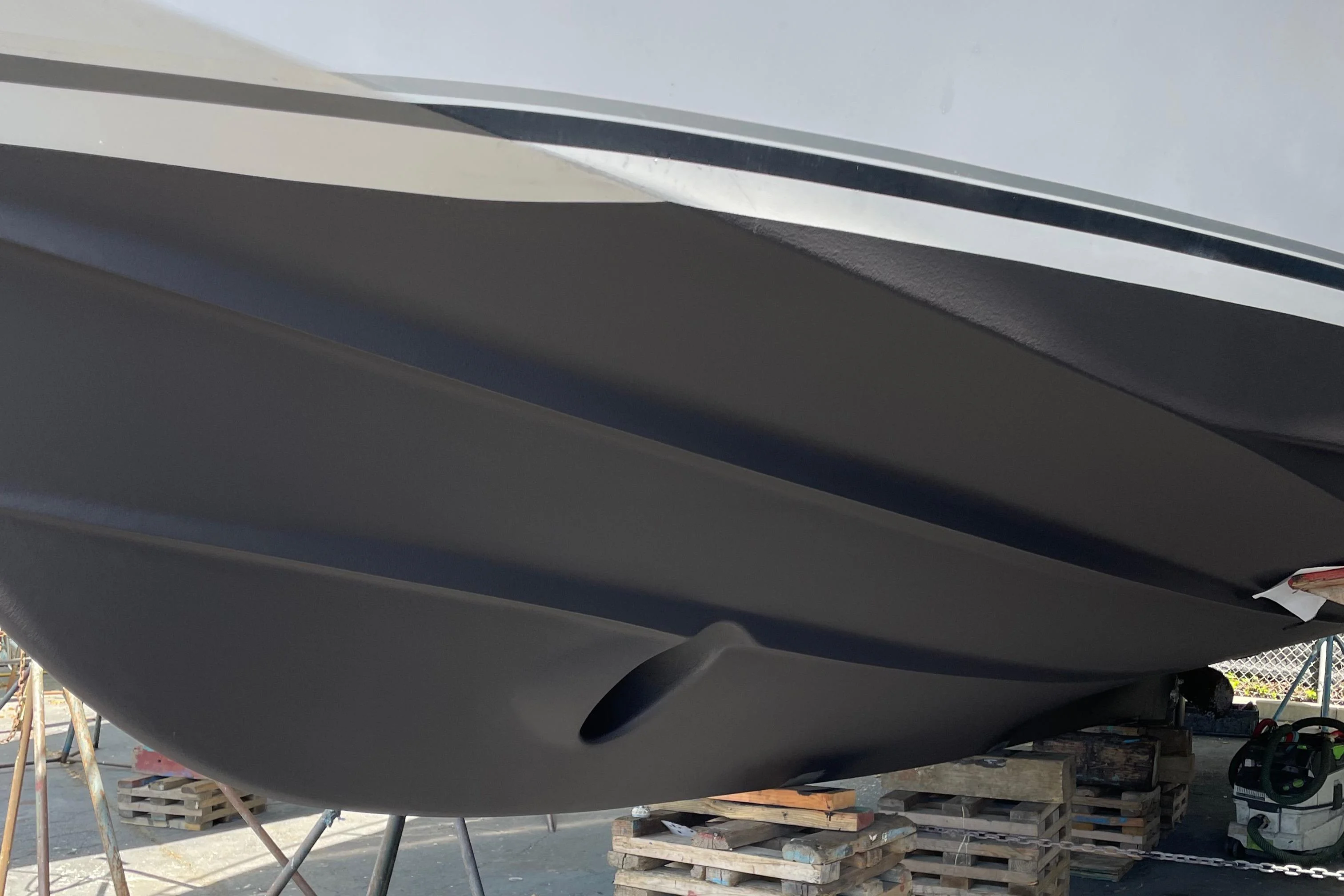

"Fresh bottom paint and Zinks, Ready to cruise"

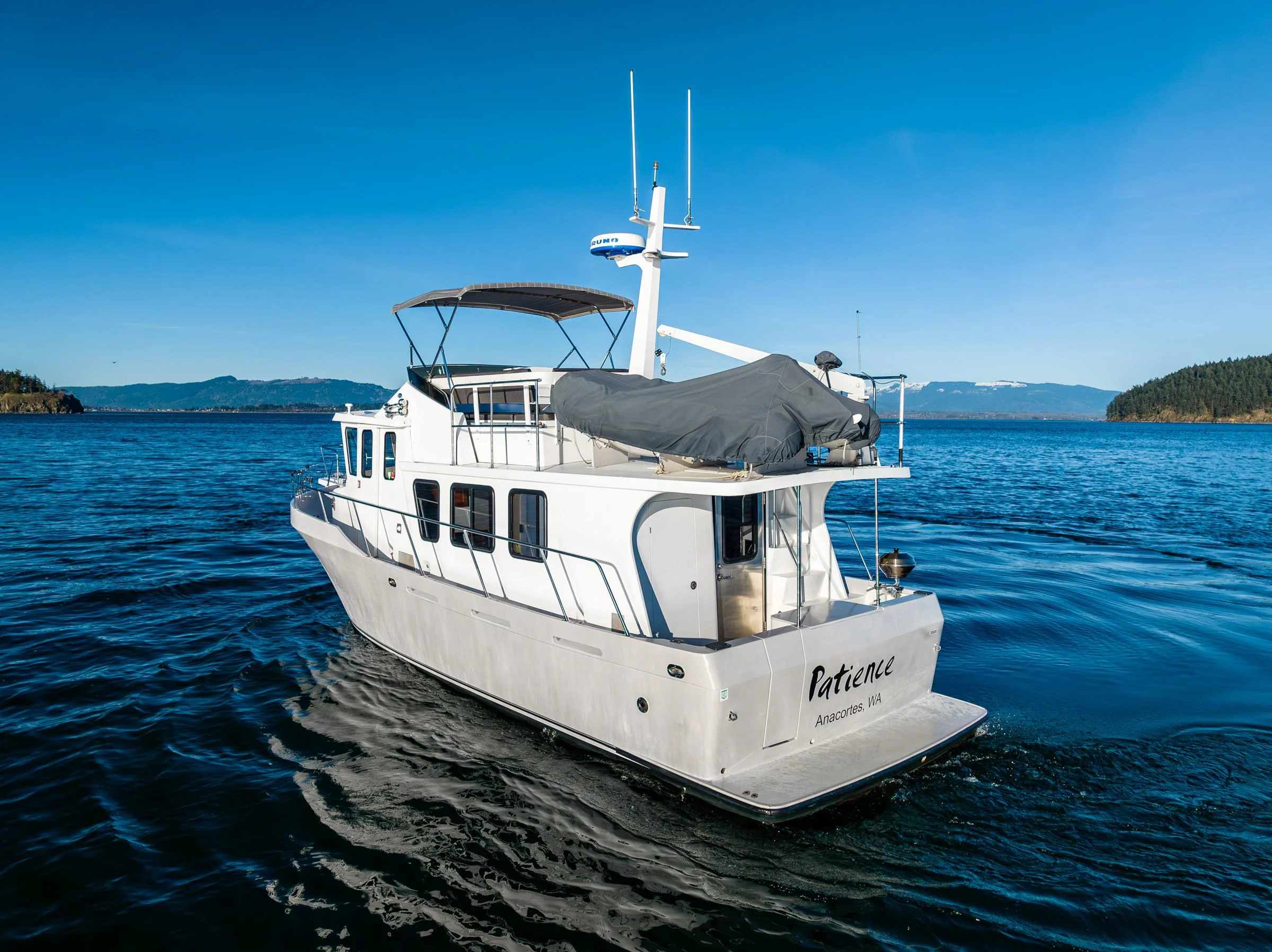

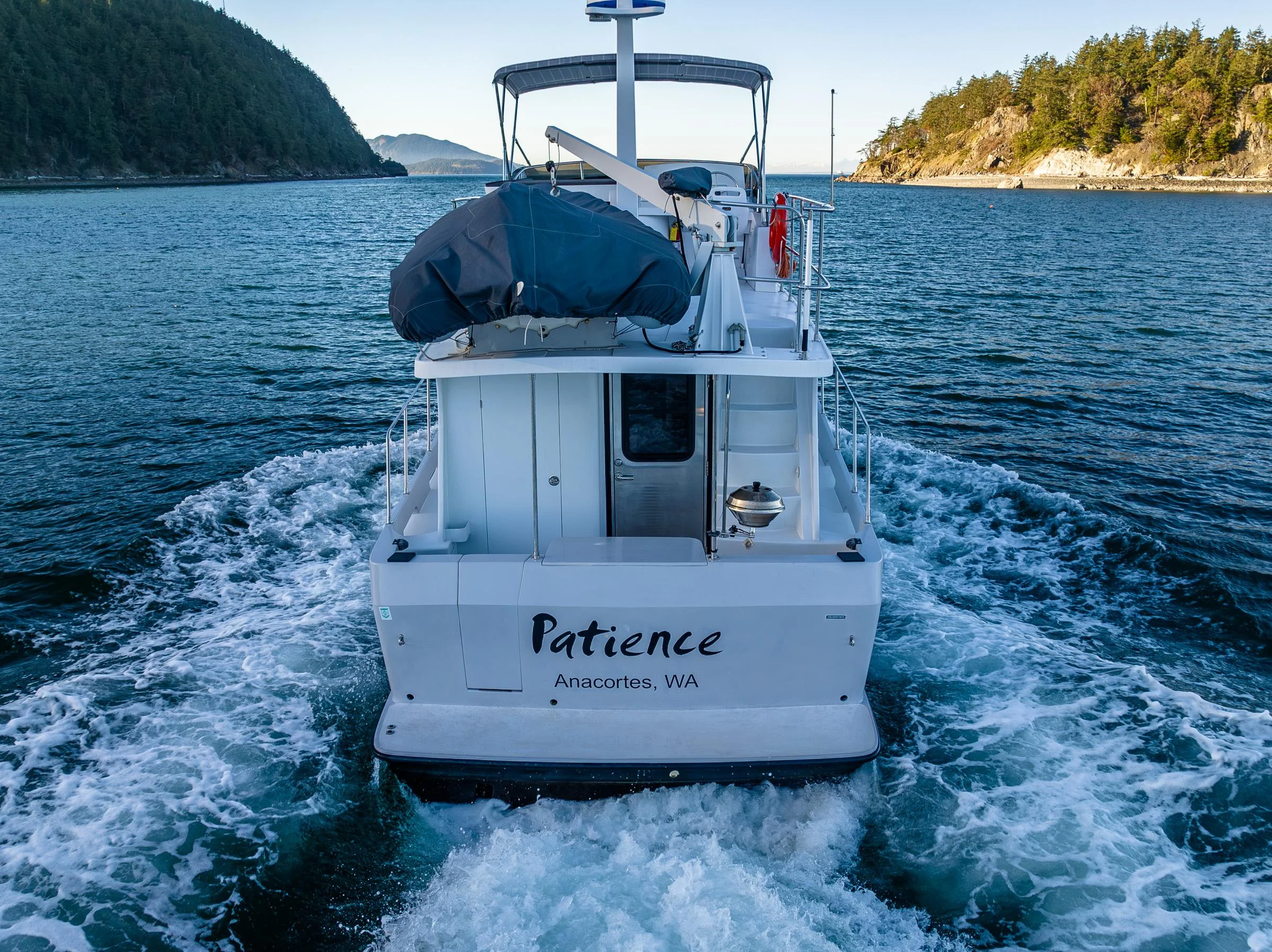

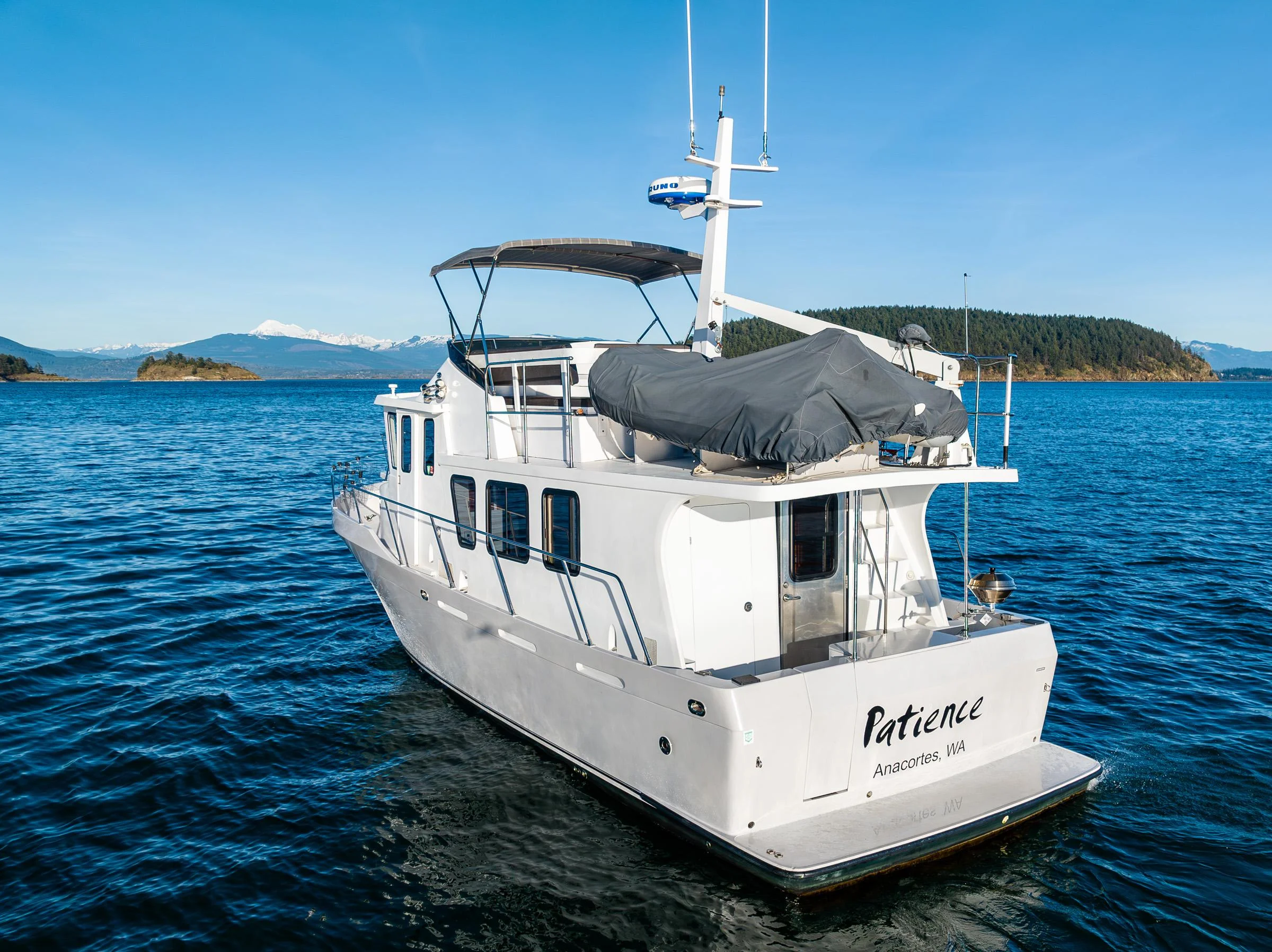

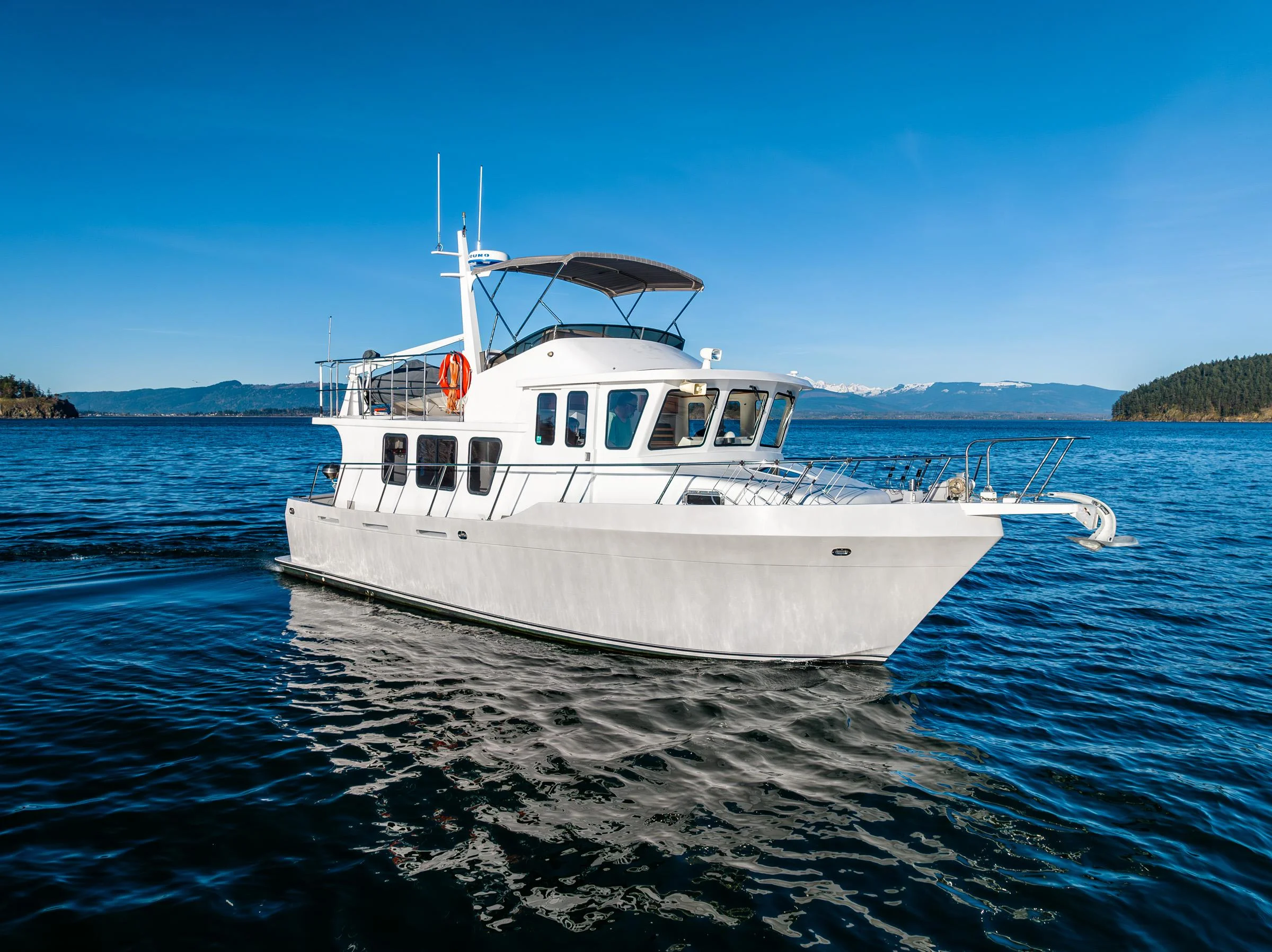

"Patience" is the perfect name for this rugged little ship.  During the planning phase the builder of this custom boat, Glenn Lewis, purchased a new, crated, 1995 Cummins 6BTA 5.9 M2 main engine directly from Cummins USA.  In 2001, in a boatyard in Richmond, BC, Glenn and his marine tech brother began laying up the hull in the mold he had purchased.  For thousands of hours, over the next 18 years, work continued at the boatyard with the attention to ABYC Standards and the fit/finish detail one would expect from an engineer and his marine tech brother, until it was completed and launched in 2019.  Following the factory-specified start-up procedures, the main was started for the first time in 2019.  Given the timeline, one would have to have a lot of “Patience" and perseverance to see a boat construction all the way through to completion.

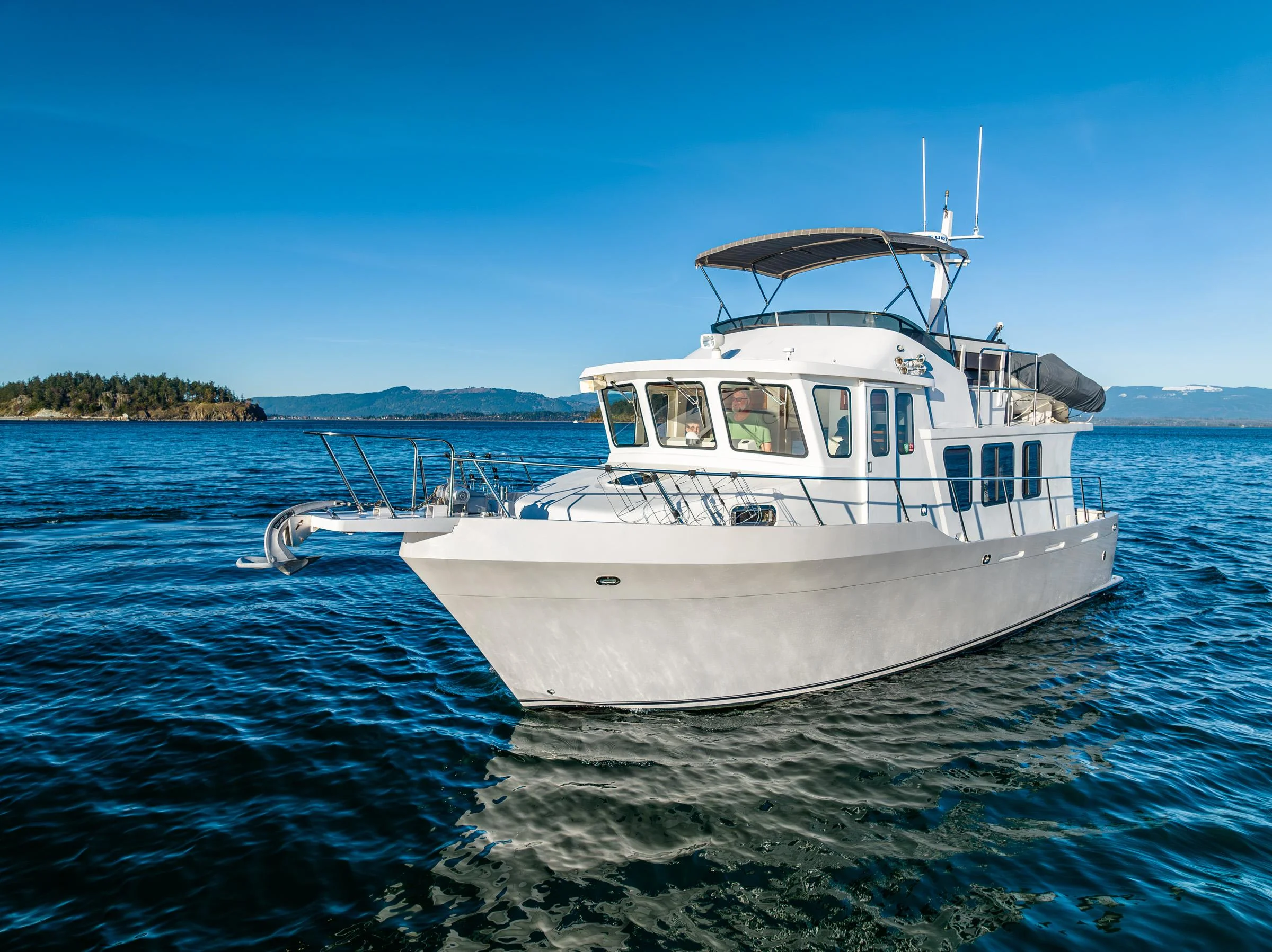

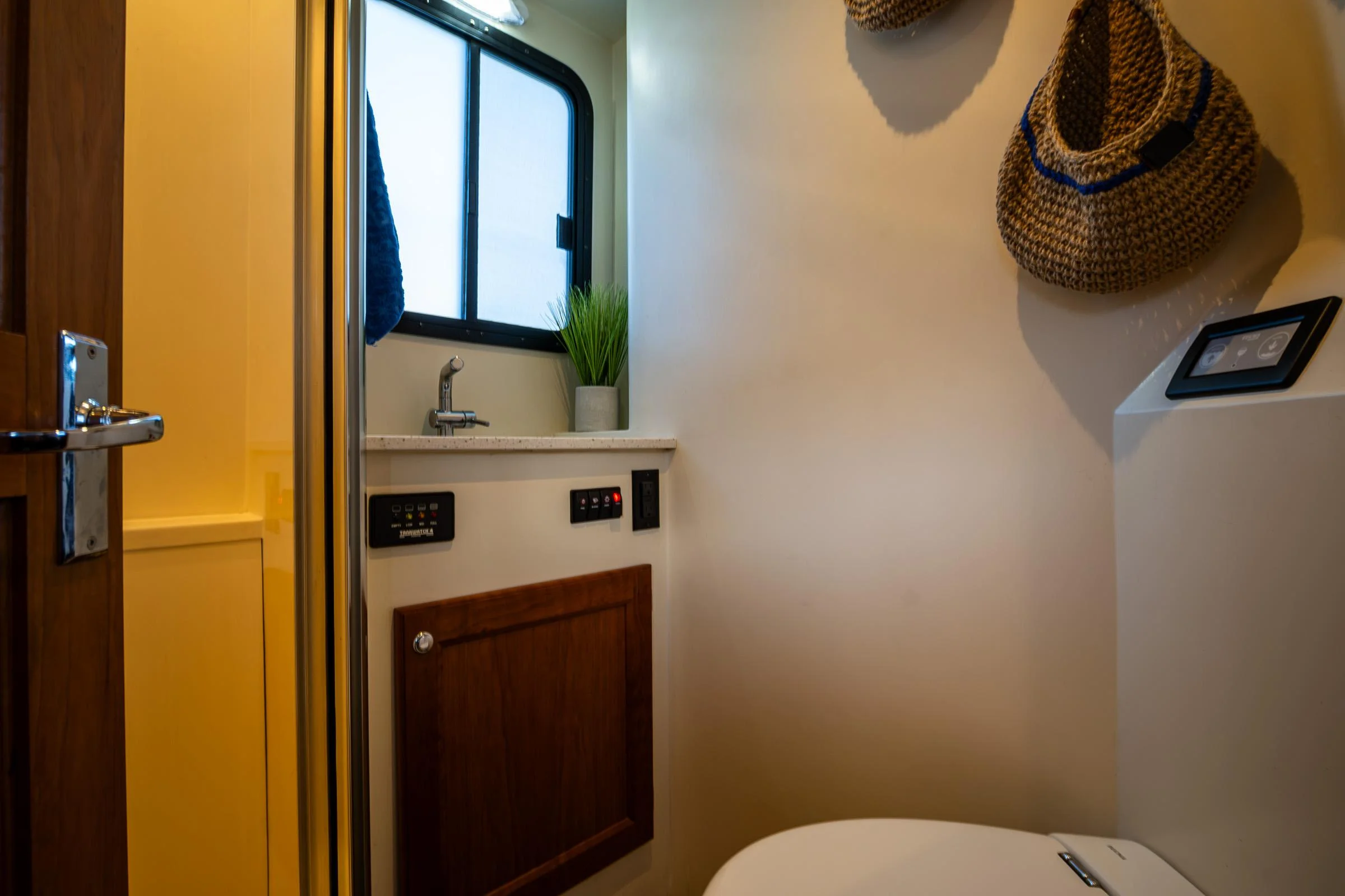

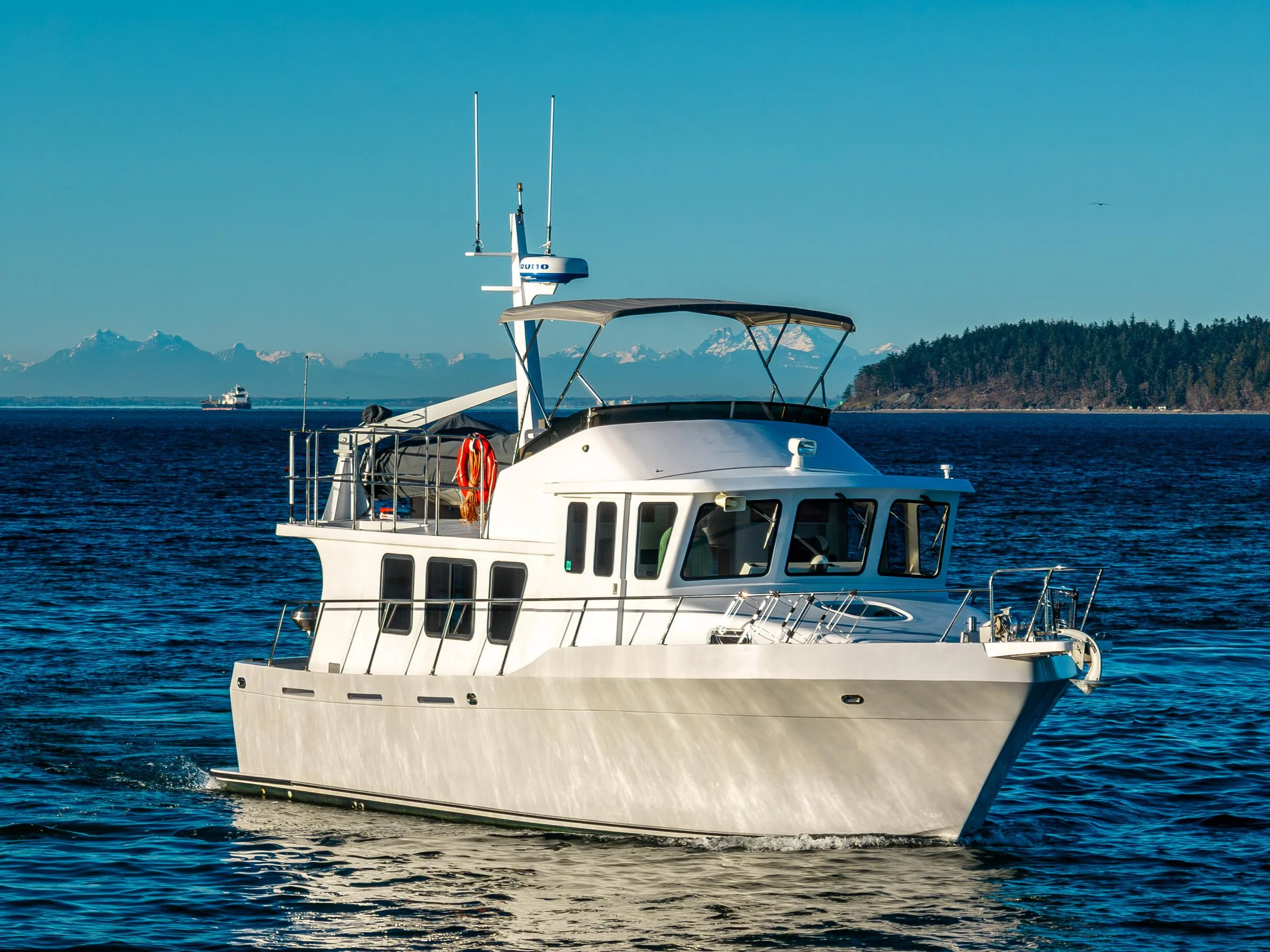

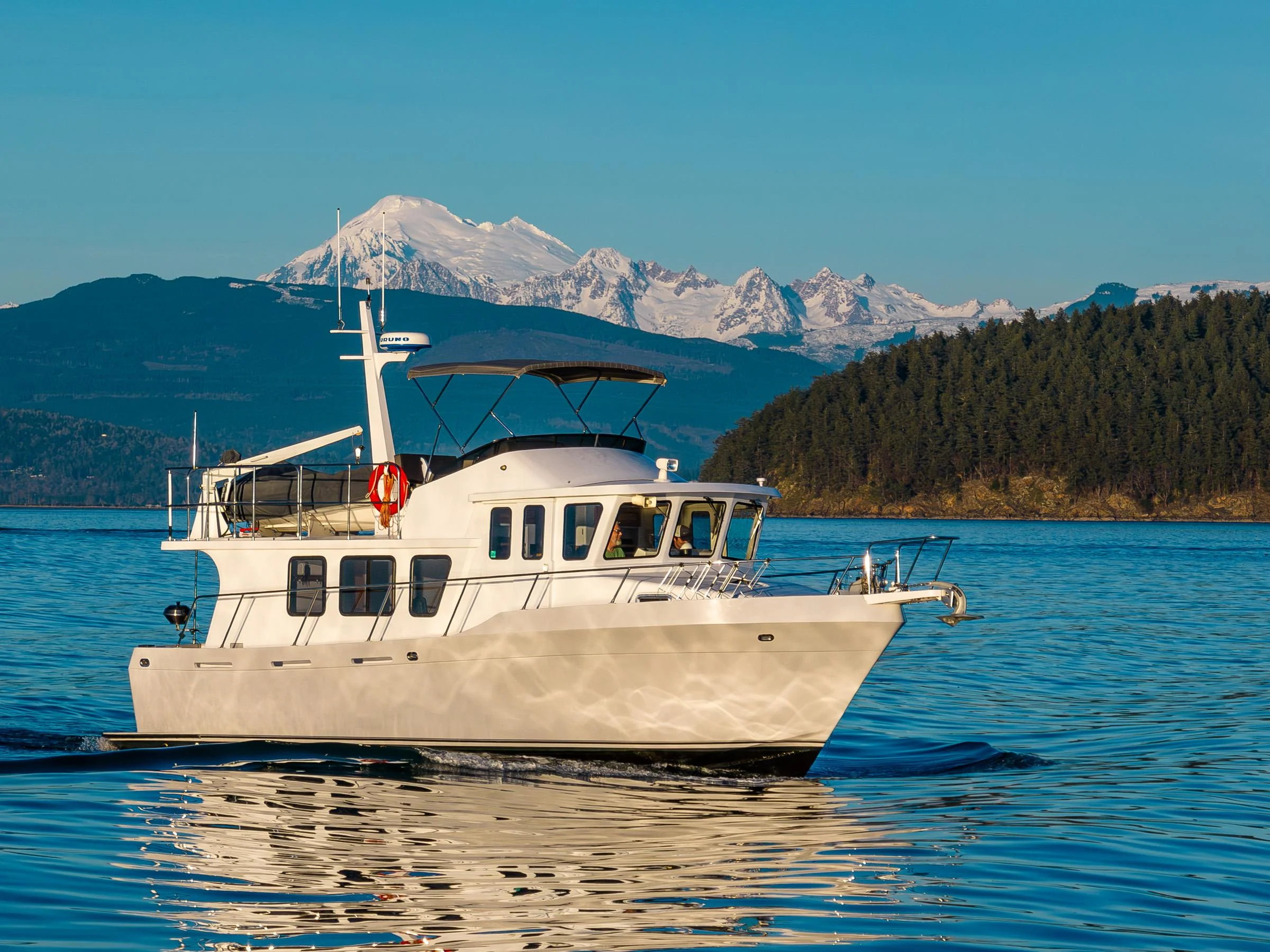

“Patience” is a ruggedly built, custom, semi-displacement fiberglass trawler,  with storage galore and ample tankage, she’s perfect for extended PNW cruising.  Only the finest materials and equipment were used both inside and out – with no exterior wood to maintain!  Features like, reliable single GBTA5.9-M2 Cummins power with only 263 hours, Northern Lights 5KW generator with only 31 hours, Side Power bow thruster, Webasto hydronic diesel furnace w/4 radiators and fans, Isotemp hot water heater, Force 10 3-burner gas cook top & oven, Nova Kool AC/DC Fridge/Freezer, Magnum 2,800-watt inverter, Furuno navigation package and autopilot at both upper and lower helm stations, 10’ Zodiac w/9.9 Yamaha 4-stroke, (2) Tecma heads, oh yeah, one is in an on-deck full head w/stall shower that is accessed from the main salon!

"Patience" is truly a turnkey yacht with loads of features you would find on vessels twice her size. If you are in the market for a Pilothouse Trawler you owe it to yourself to view this magnificent little ship.



2019, Glen Lewis Custom 39, Pilothouse Trawler Yacht

General Specifications:

LOA: 39’6”

LOD: 36’

Beam: 12’

Draft: 4’3”

Style: Pilothouse Trawler

Hull Type: Hard chine, semi-displacement w/long keel and keel hung rudder

Construction: Fiberglass (FRP) hull and cabin w/Corecell and Kevlar reinforcement in places Vinyl Ester resin layup and epoxy coated below waterline, ISO resin layup above waterline.

Interior: Cherry wood and moulded fiberglass. bead board and cherry overhead, settee made from high end teflon material,

Displacement: 20,000 lbs.

Cruise: 7 knots @ 1,400 rpm, 12 knots @ 2,100 rpm

Main Engine: Only 263 hrs.

Cummins Marine Turbo Diesel, 6 cylinder, 300 hp, model GBTA5.9-M2, serial #45164113

Marine Gear: Twin Disk MG5050

Engine Controlls: Kobelt cable with 2 stations.

Prop Shaft: 2” diameter SST Aquamet alloy

Propeller: Osborne, 28” X 22” bronze, right hand, 3 blade

Genset: Only 31 hrs.

Northern Lights, Lugger diesel, 3 cylinder, 5KW, model M673 LD3, serial # 6732-42987C

Alternator: Delco 105 amp

Inverter/Charger: Magnum MS2812, 2800 Watt, 12V Magna Pure Sine

Battery Charger: ProMariner ProSport HD 6 Amp single bank waterproof marine battery charger for generator

Batteries:

Main Start, 2 x 12V group 27

Genset Start, 1 x 12V

House, 6 x HD Trojan

Isolation Transformer: Charles Marine 3.6 KVA

Tankage:

Fuel - 320 gallons in 2X 160 gallon each, 5052 marine grade aluminum

Water – Cold: 206 gallons in 2@55 + 3@32 HDPE; Hot: 11 gallons, Isotemp

Black - 40 gallons, HDPE

Grey - 18 gallons, HDPE

Propane – 2@20 lbs., w/Trident Marine vapor detector

Bow Thruster: Side Power, SP55, 7”, 12V

Ground Tackle:

Windlass: Lofrans Tigres, 12V windlass with helm control and foot switches

Anchor: Rocna Vulcan, 44 lbs.

Chain/Rode: 180’, 5/16” hi-tensile chain + 270’, 5/8” double braided rode

Domestic Equipment:

Stove: Force 10, 3-burner with oven, propane

Refrigeration: Nova Kool RFS7501, 12VDC, 110VAC fridge/freezer

Heater: Webasto Thermo 90ST diesel boiler with 4 remote radiators & fans

Navigation Equipment:

Furuno NAVnet 3D MHD 12 radar/plotter/sounder (1 lower helm, 1 upper helm)

Furuno 4kW 36 nautical mile Radome DRS4D

Nav Pilot 711C Auto pilot

Radio: Icom IC-M506 DSC VHF (lower helm), Icom IC-M324 DSC VHF (upper helm)

Ritchie 3” compass

Tender:

10’ Zodiac, Yamaha 9.9, 4 Stroke

Accommodations:

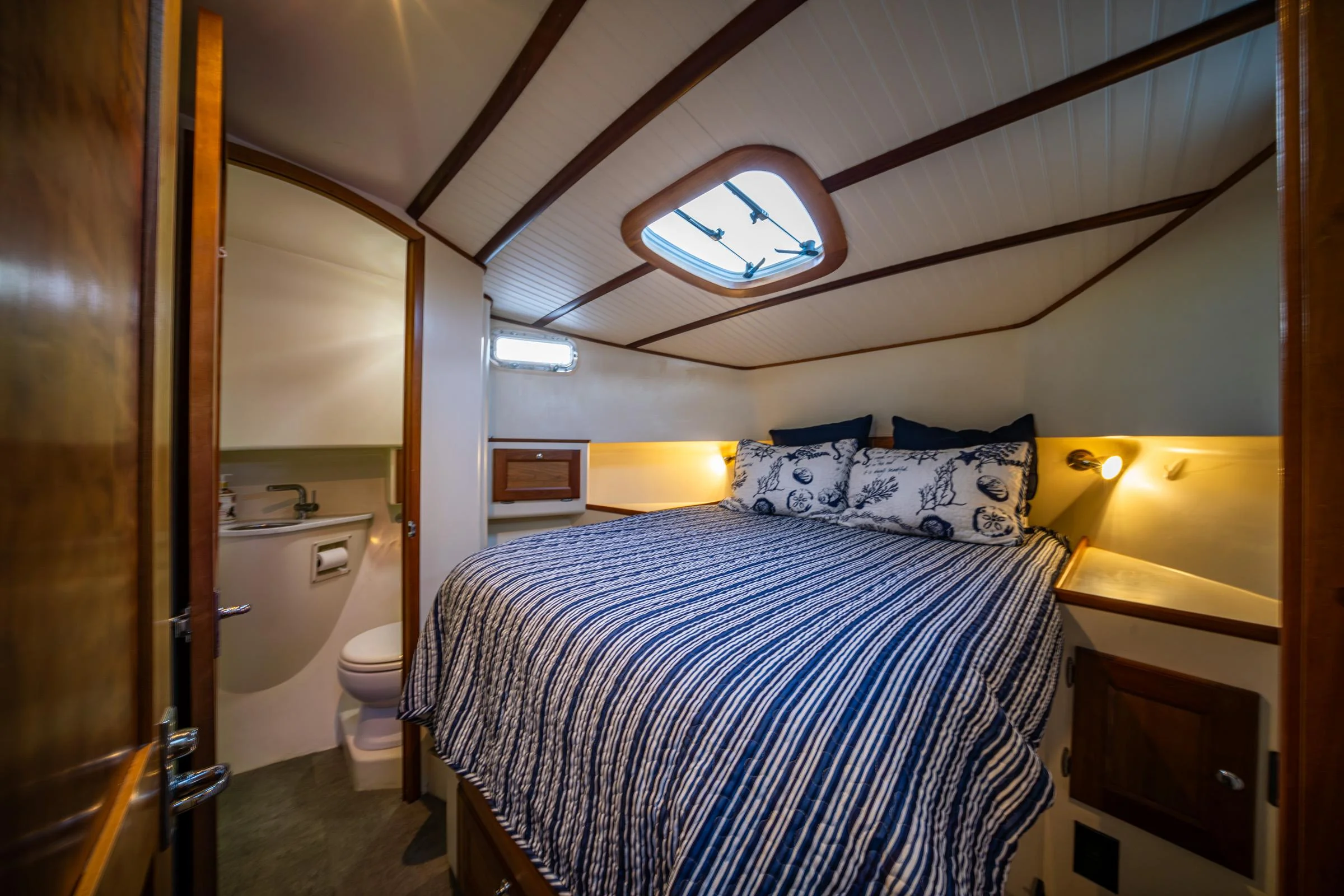

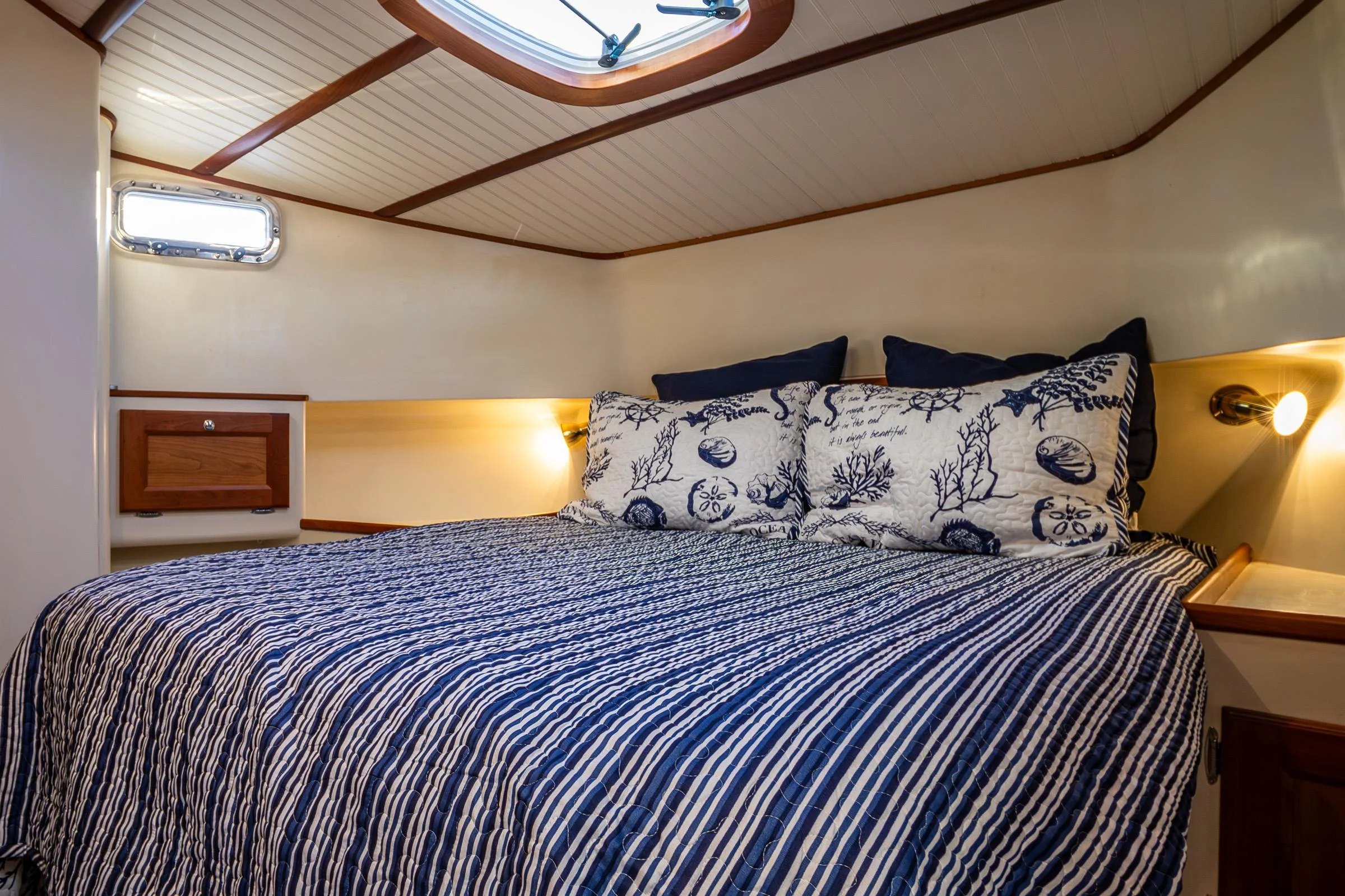

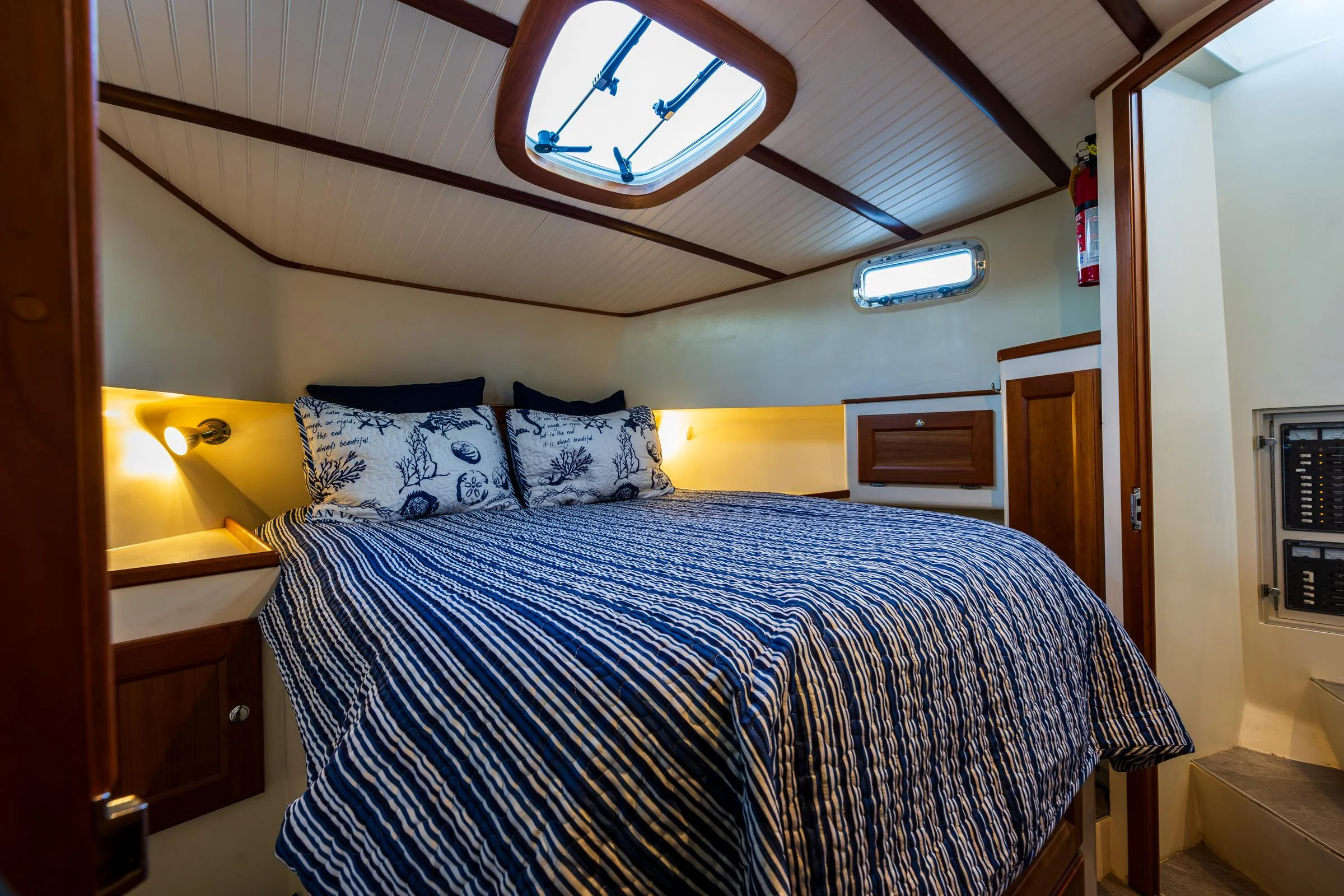

• Center line forward master queen bed

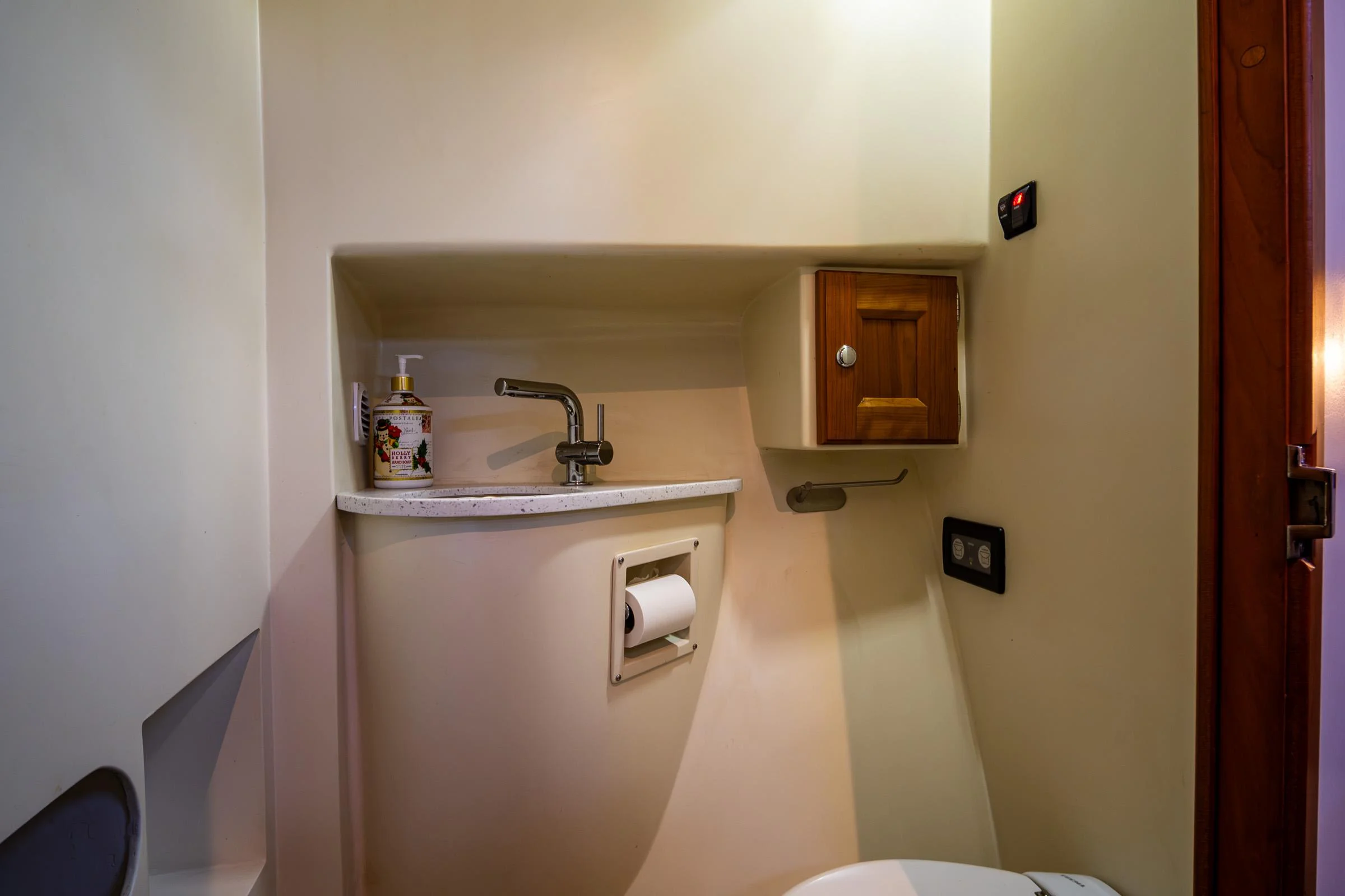

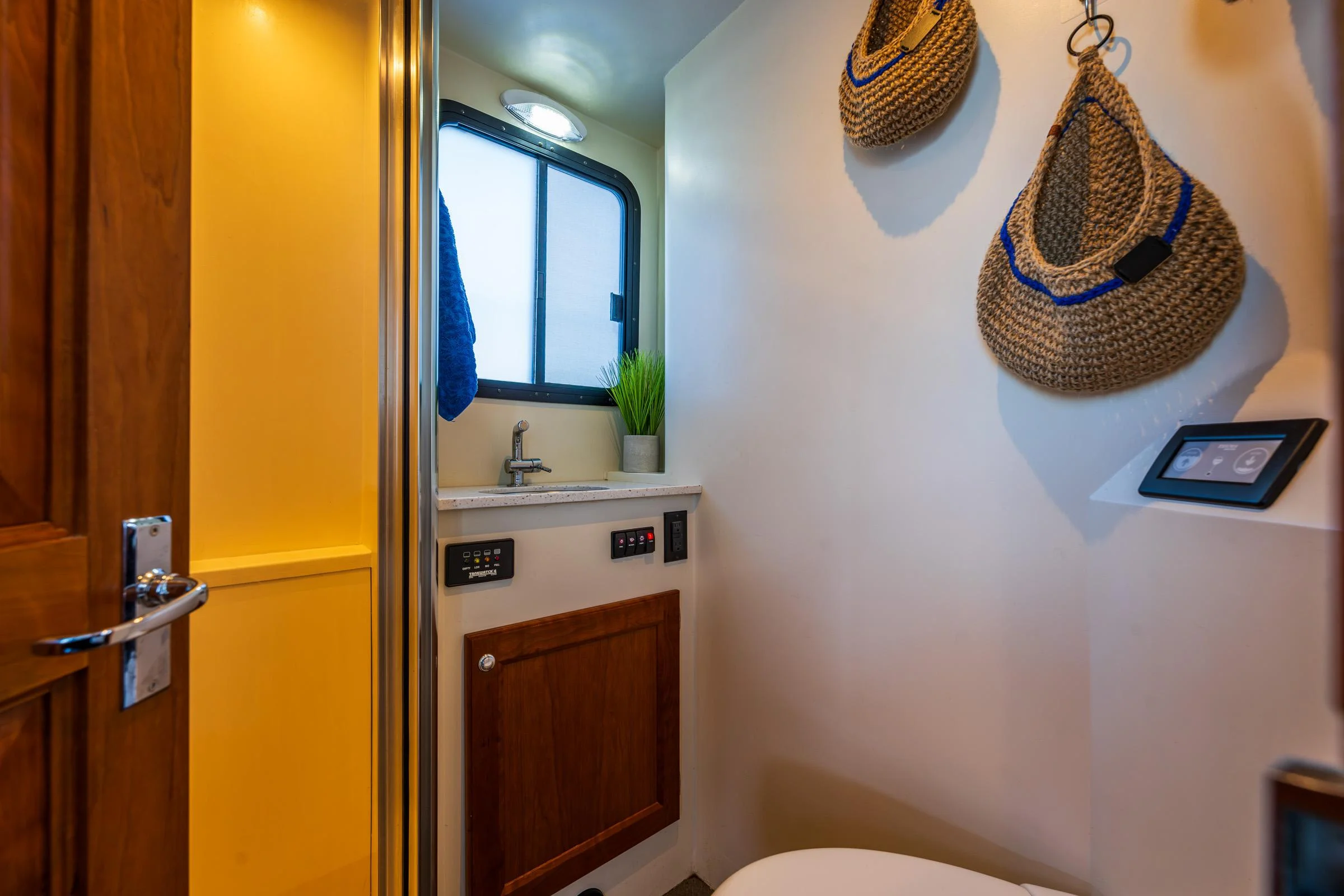

• En-suite with vanity and Tecma toilet with integrated waste macerator.
• Hanging locker.
• Under bed clothing drawers.
• Remote controlled LunaSea model LED lighting.
• Solid Cherry wood custom joinery work.
• Overhead skylight opening hatch with screen, trimmed in solid Cherry wood.
• Stainless steel port lights with screens.
• Wall mounted individual reading lights.
• Individual bedside counters.
• Access to forward compartment, then into compartment to chain locker.
• Bow Thruster access under master bed.
• Forward access doors to the electronic control room and 2nd doors into forward engine room.
• Toilets are Tecma silent vacuflush.
• Storage beneath seating.
  * Table drops down making a large double bed.
  * All upholstery is the brand name "Serge Ferrari One" teflon material. It is used in Ferrari cars, and is very durable with ultimate protection from sun and sea.
• Wabasto model Thermal 90 ST furnace, with 4 forced air vents.

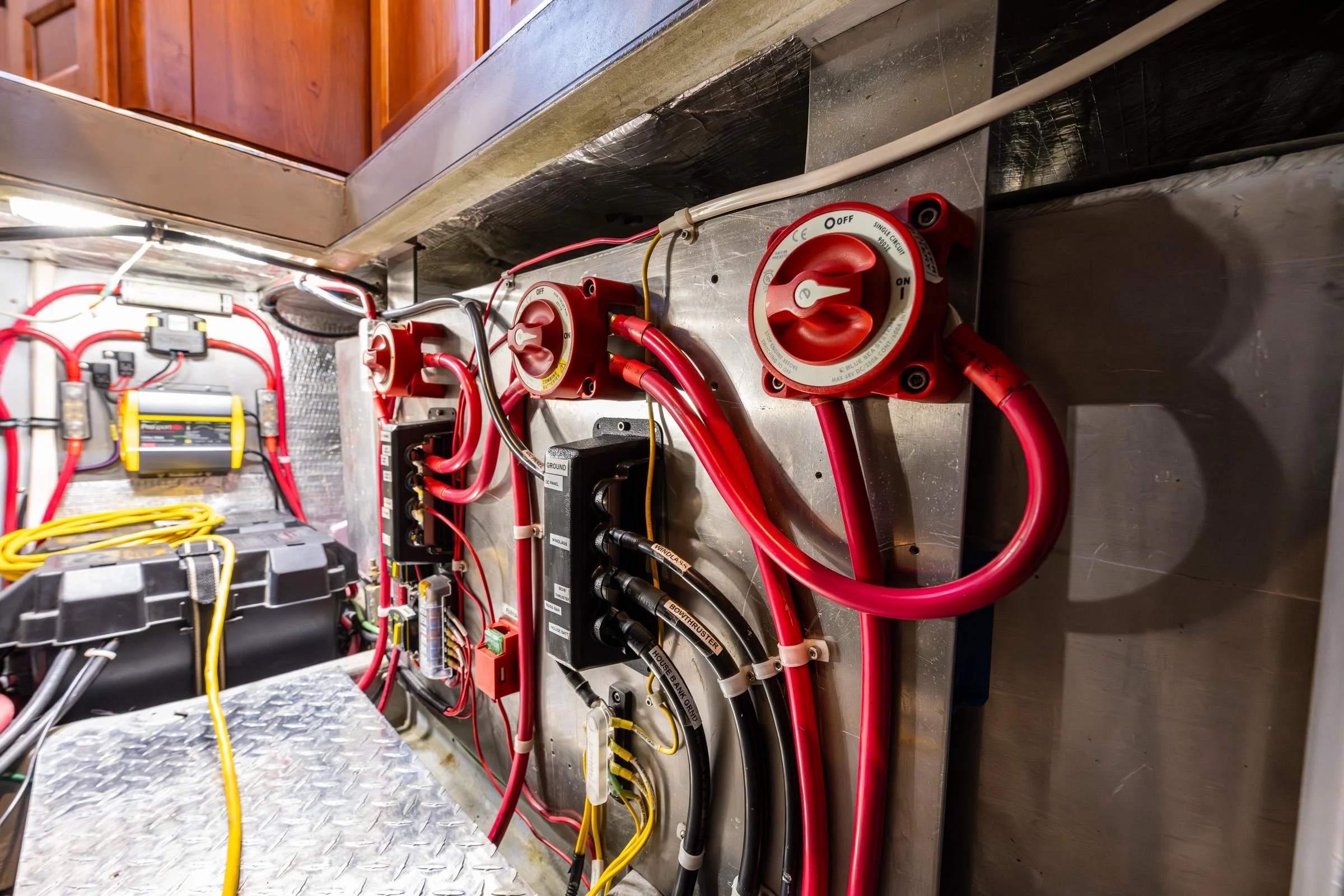

Electrical:

• All house and starting batteries are enclosed in approved HDPE boxes.
• Genset 1 x 12 v aft saloon.
  * Start battery 2 x 12 v aft saloon.
  * House batteries 6 x HD Trojan port side and centre line engine room.
• 3-way battery switches.
• All marine grade wiring completed to ABYC standards.
• ProMariner ProSport HD 6 Amp Single Bank Waterproof Marine Battery Charger.

Electronics:

• Furuno Navnet 3D MFD12 Multi-functional display. Dual helm stations.
• Radar / chart plotter.
• Furuno 4kW 36 nautical mile radome DRS4D
• Knot meter.
• 2018 Ritchie Navigator compass.
• DFF-1 Fishfinder.
• 600/1 kW nav net depth sounder.
• GP-330B GPS.
• 2019 Nav Pilot 711C auto pilot.
• Kobelt model 2091 single lever dual station engine controls.
• Airmar B 258 1 kW transducer.

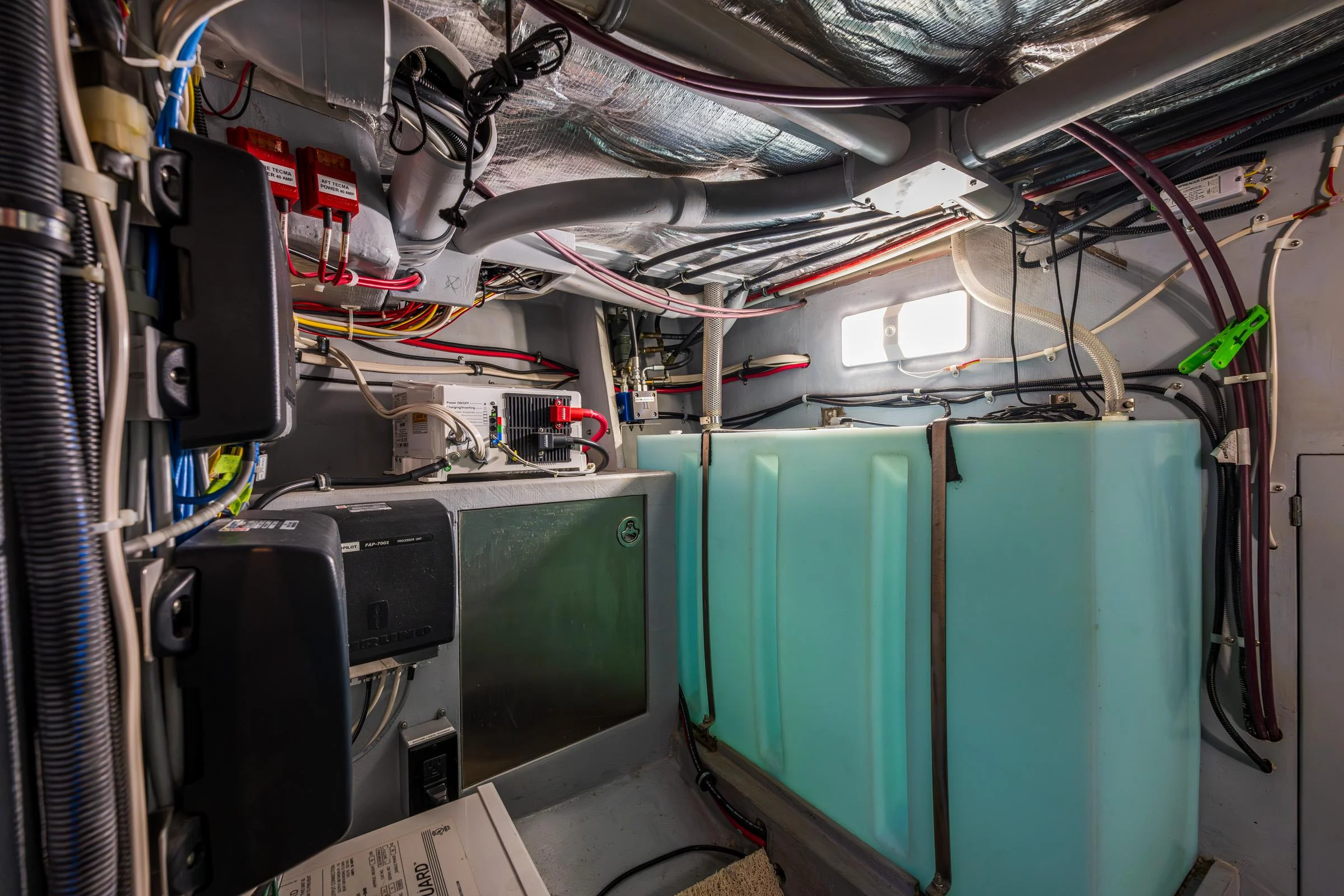

• Separate control room for electronics. * Control units for Furuno...Auto pilot..Network Sounder.
• Magnum 2812 watt Magna Sine inverter.
• Charles Marine 3.6 KVA Isolation transformer.

Deck Equiptment:

• Yamaha 2020 electric start model F9.9. 5 EHB.

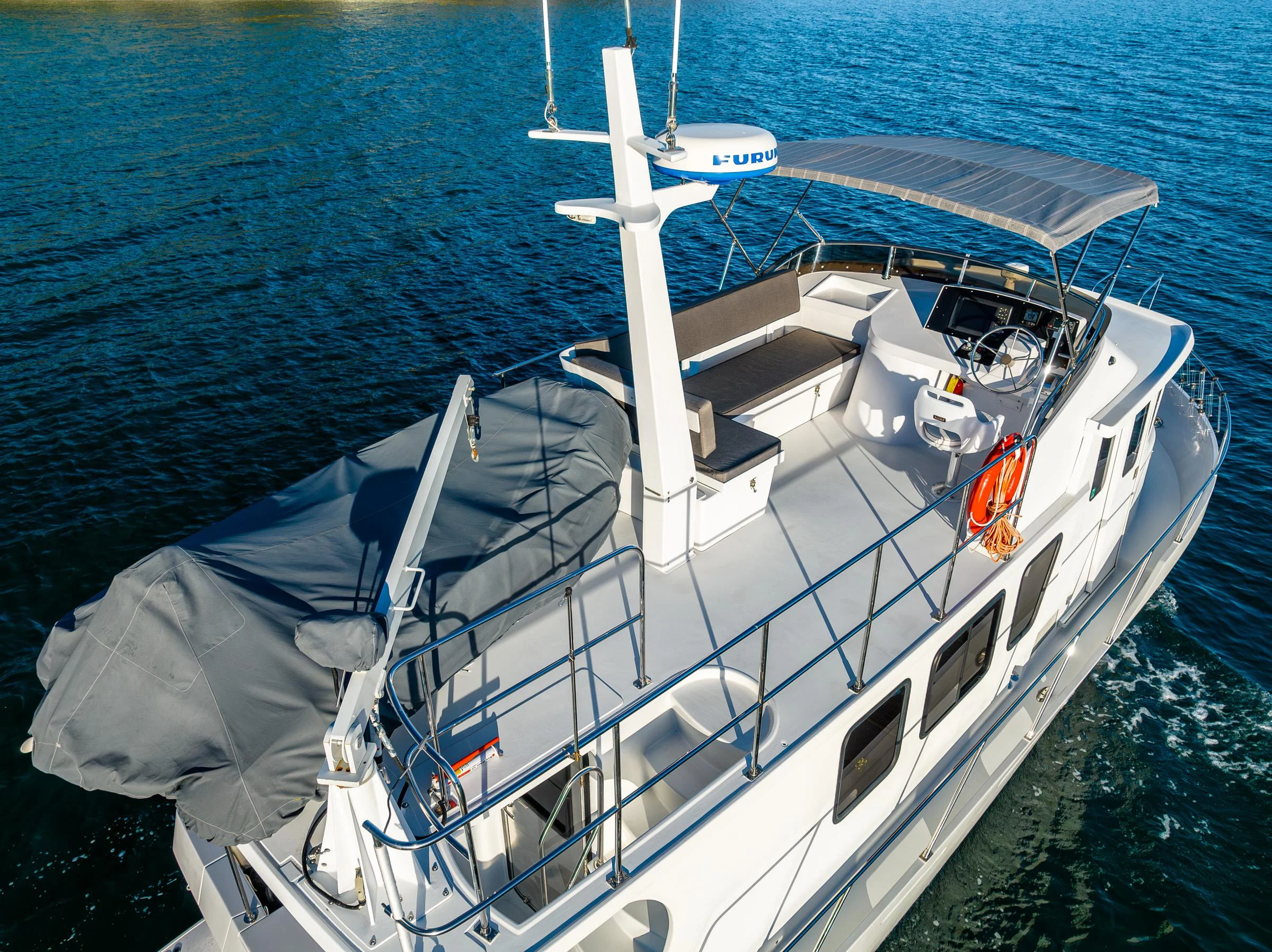

• 2020 Zodiac C300 DL 12 ft inflatable with Aluminium bottom.

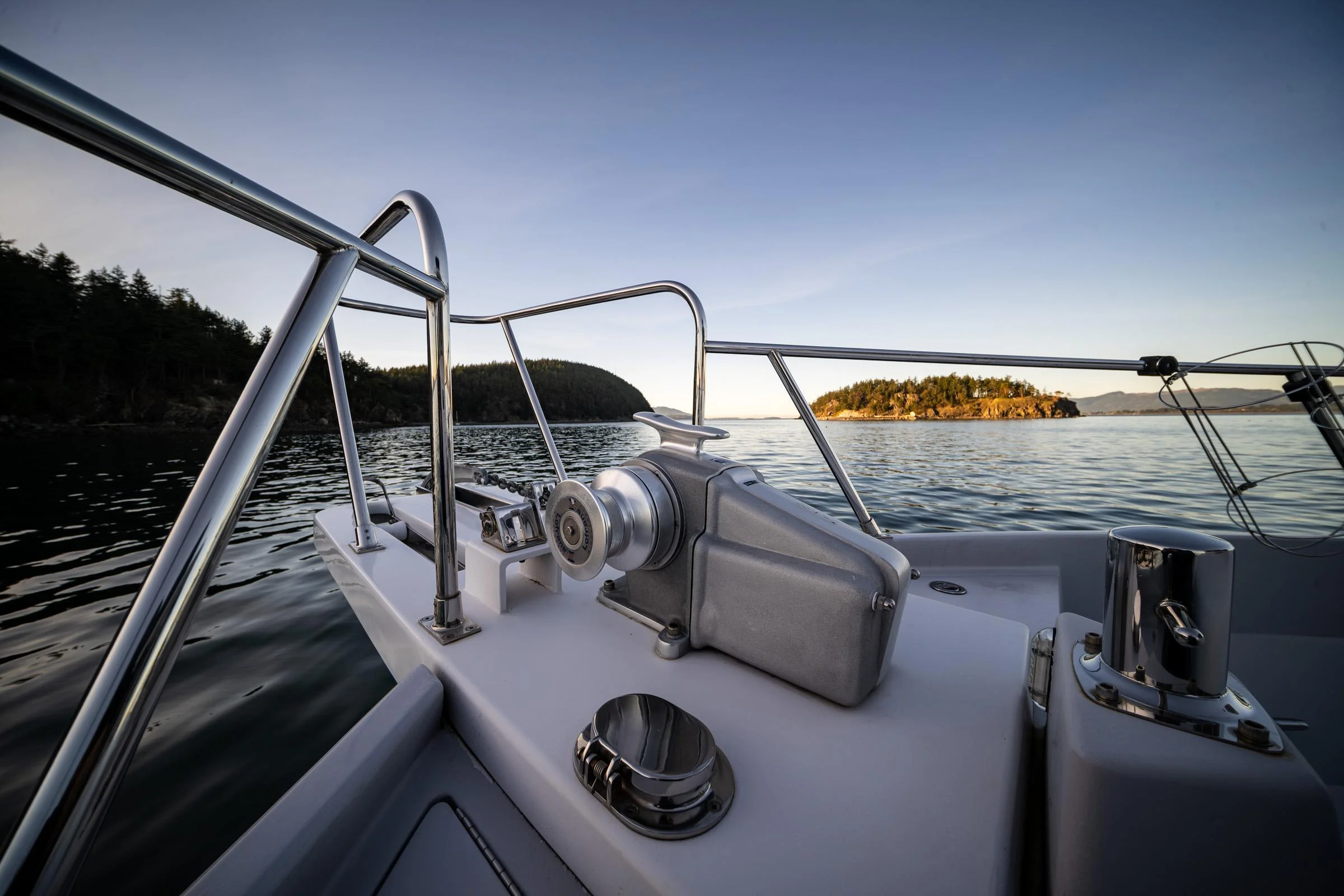

• Lofrans Tigres 12 volt windlass.

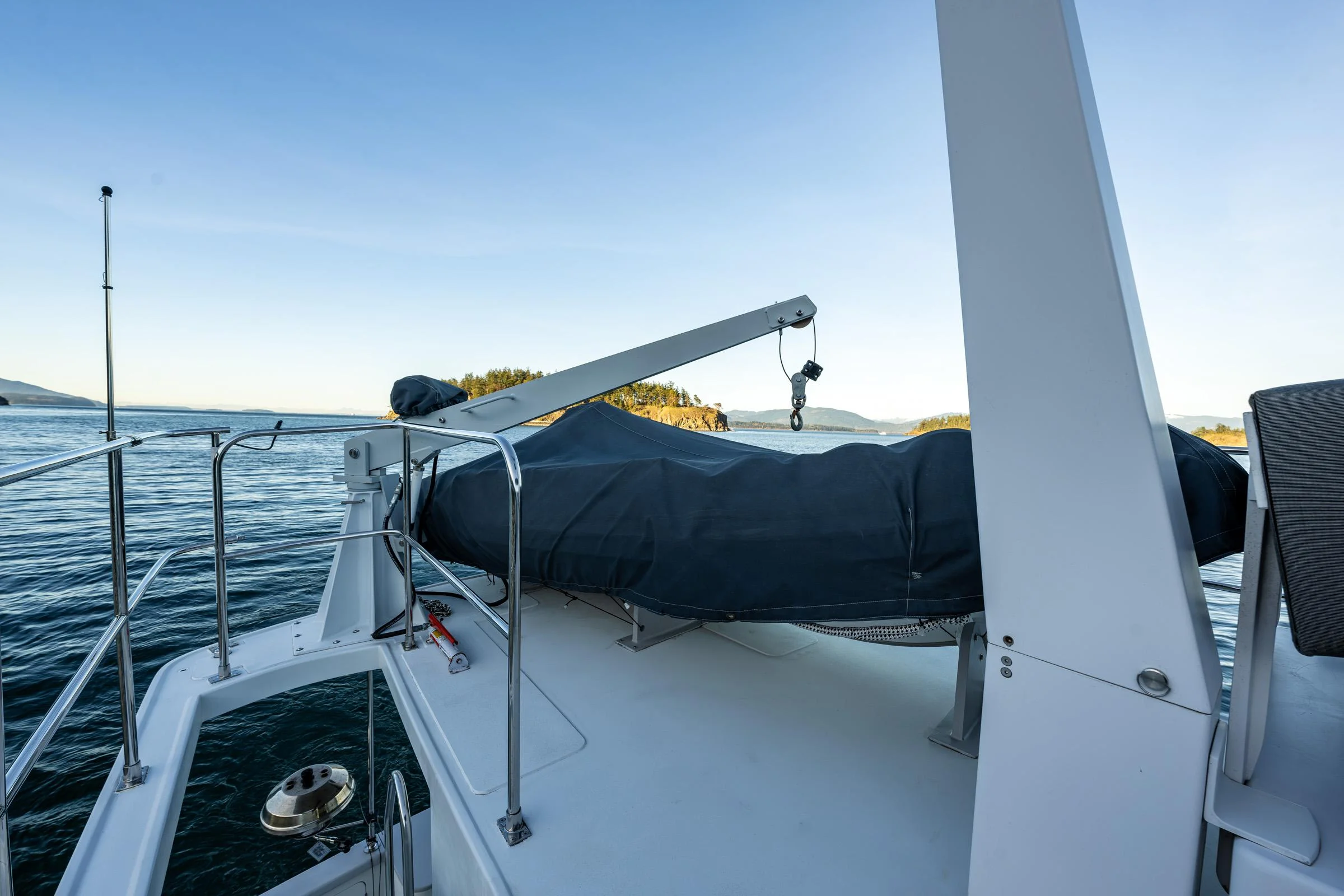

• Remote controlled custom made Aluminium crane 12v and manual.
• Up / Down deck mounted foot switches. Also controlled from Pilothouse and Fylbridge.
• Rocna Vulcan 20 kg anchor on bow roller. Spare Claw anchor in saloon bilge to port.
• 180 ft 5/16" Hi-tensile chain with 270 ft 5/8" double braided line.
• 400 ft 3/8in stern tie floating line yellow/black on reel.
• 3/4 in heavy duty tow bridle with floats and 80ft high strength 1/2 tow rope with s.s. eyes
• 2 complete sets of docking lines 8pcs.
• 4 point throwing grapple with 50ft of rope
• Heavy duty bow pulpit.
• Folding radar mast for covered moorage
• Stainless steel hand rails all around decks.
• 8 large fenders.
• Custom Stainless steel adjustable boarding ladder.
• 50 ft 30 amp shore power cable, mounted on bow deck centre line for port or starboard deployment.
• Lazarette wash down pump Jabsco powermax.
• Fish storage box.
• Storage lockers.
• Down rigger mounting brackets.

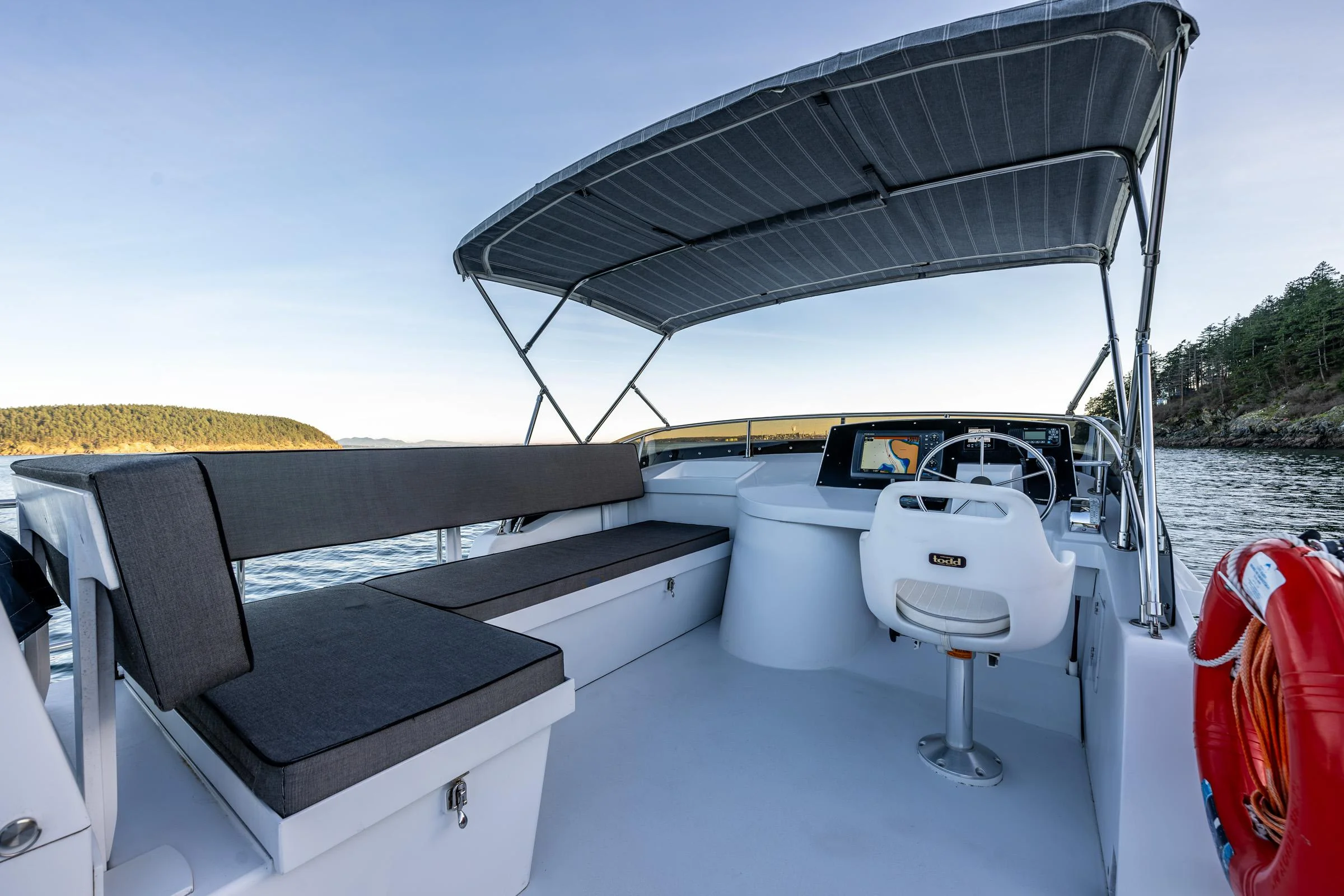

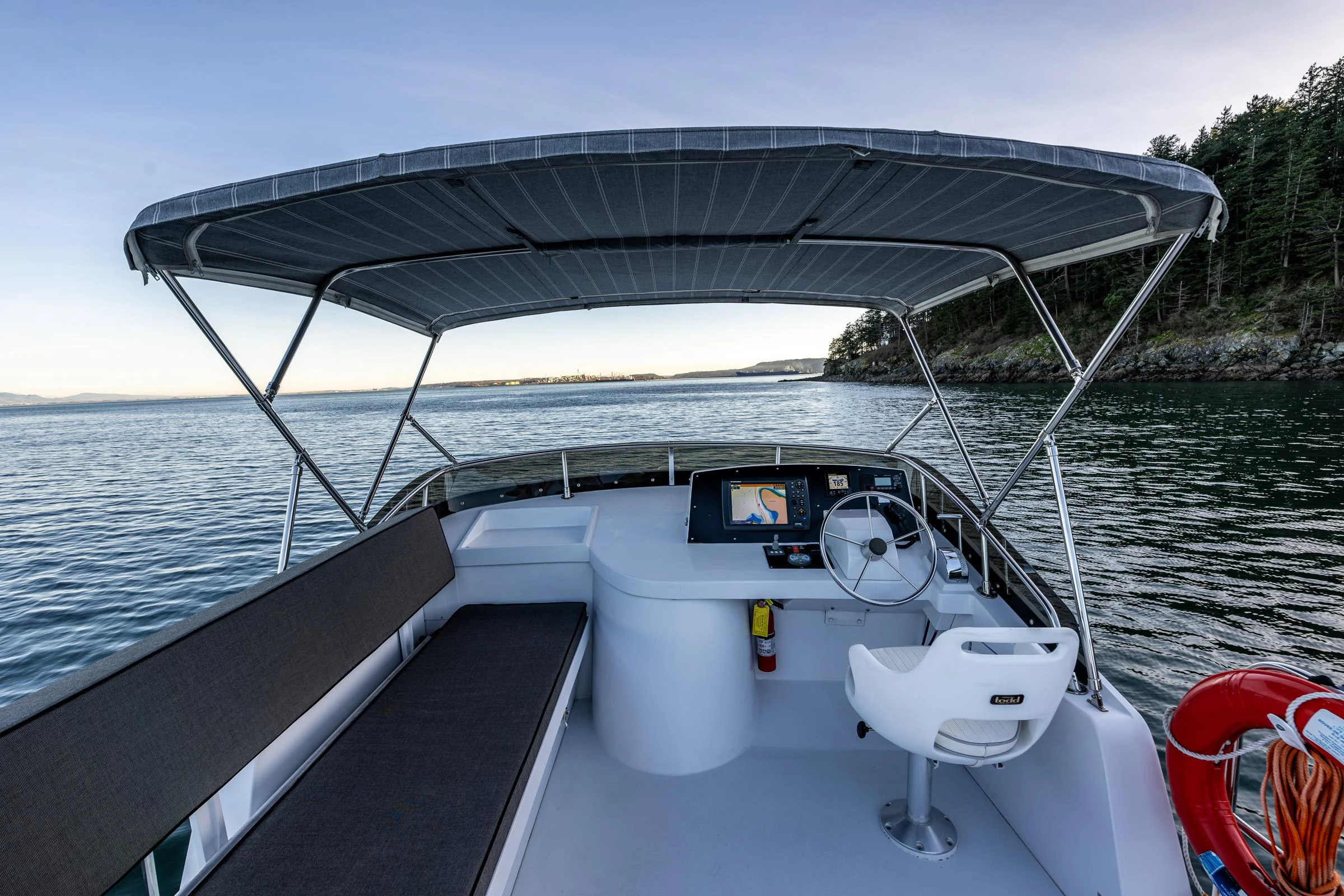

• Bimini stainless steel tube framing.
• FG helm station cover with 2 keyed locks. Stores under seats
• Full seat cushions.

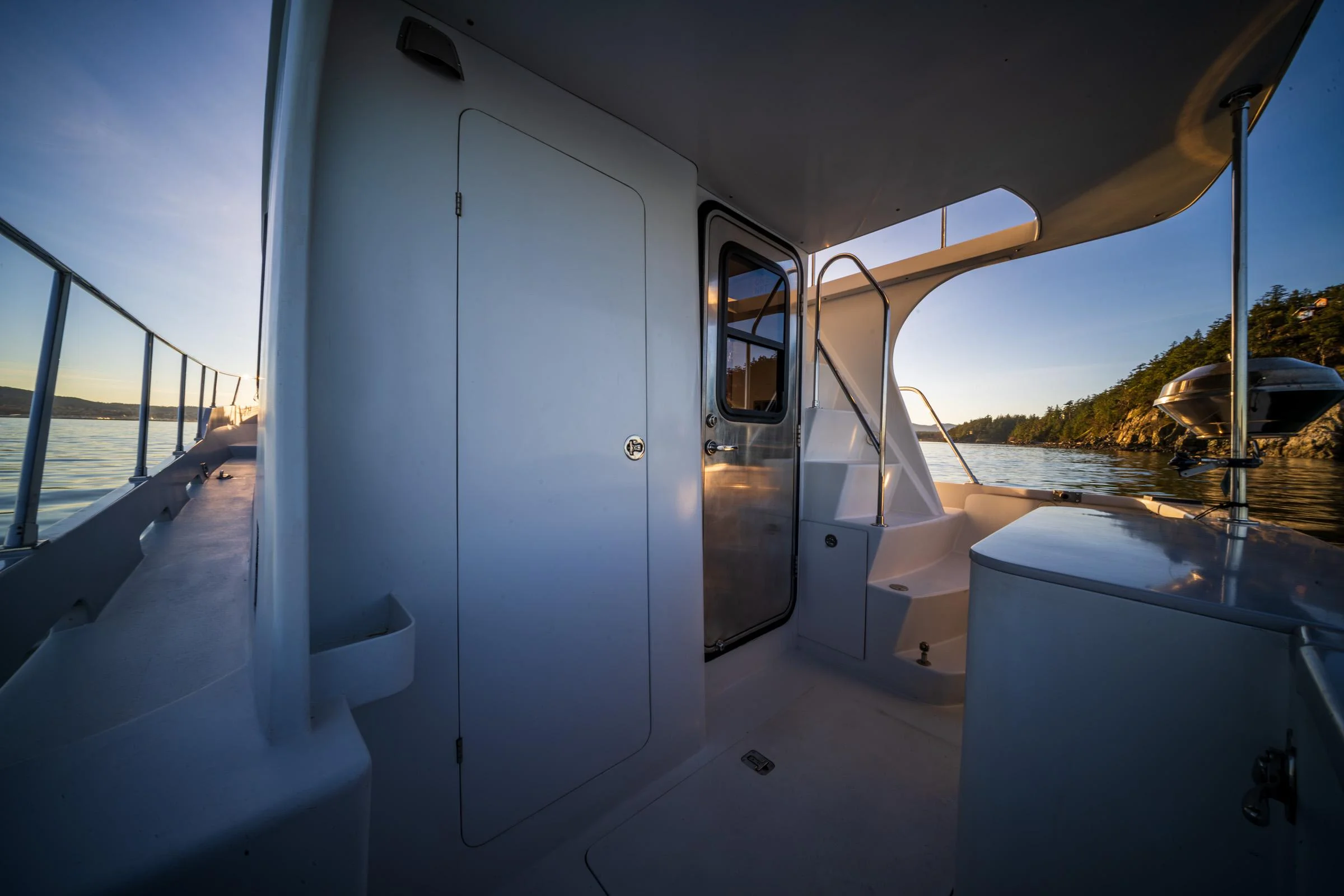

• AJR Marine stainless steel clad, keyed aft saloon door, with drop down window..screened.
• All Stainless steel framed opening port lights with screens.
• SST framed Skeg hung rudder.
• Sea cocks and thru hulls are Bronze below waterline and Stainless steel above.

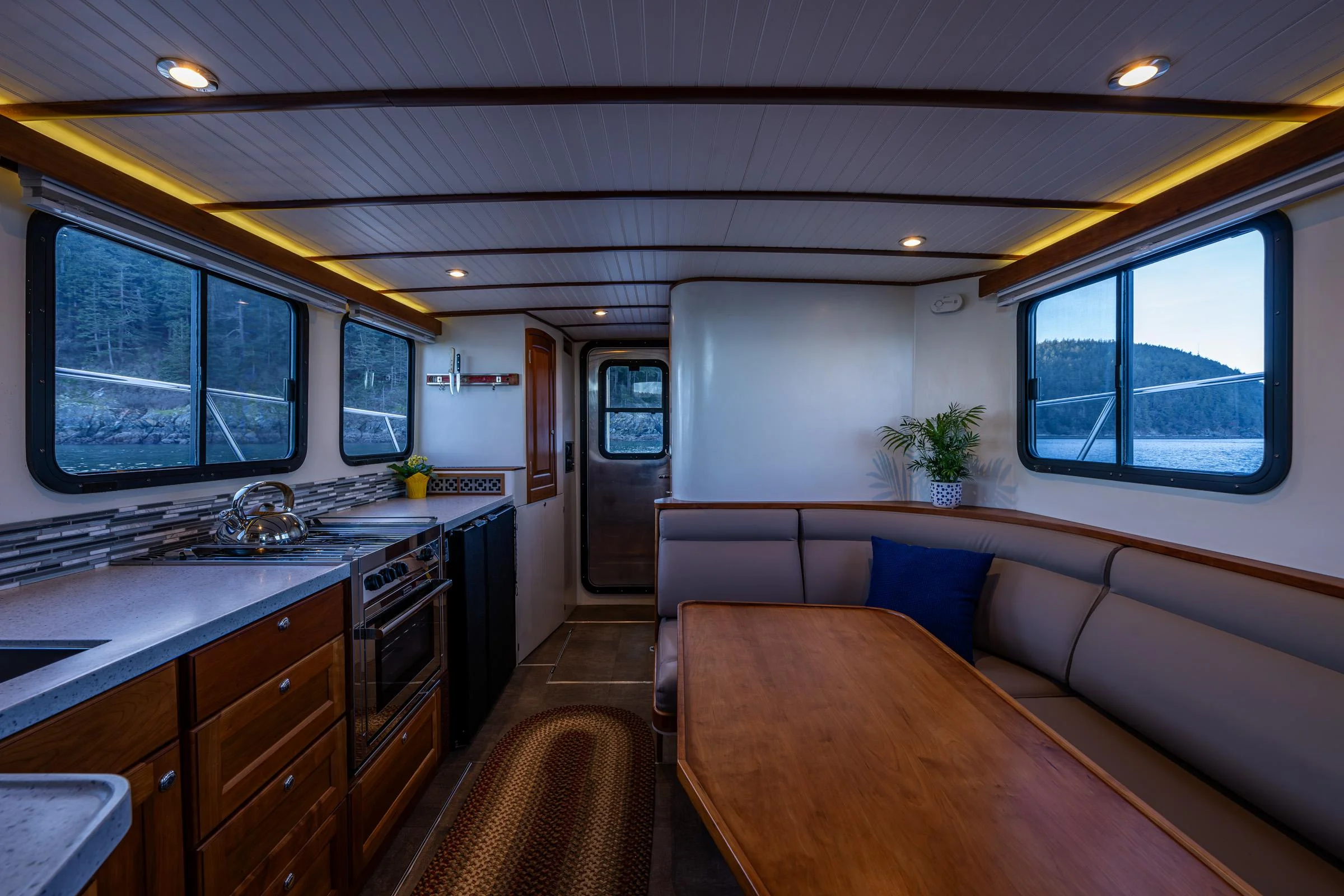

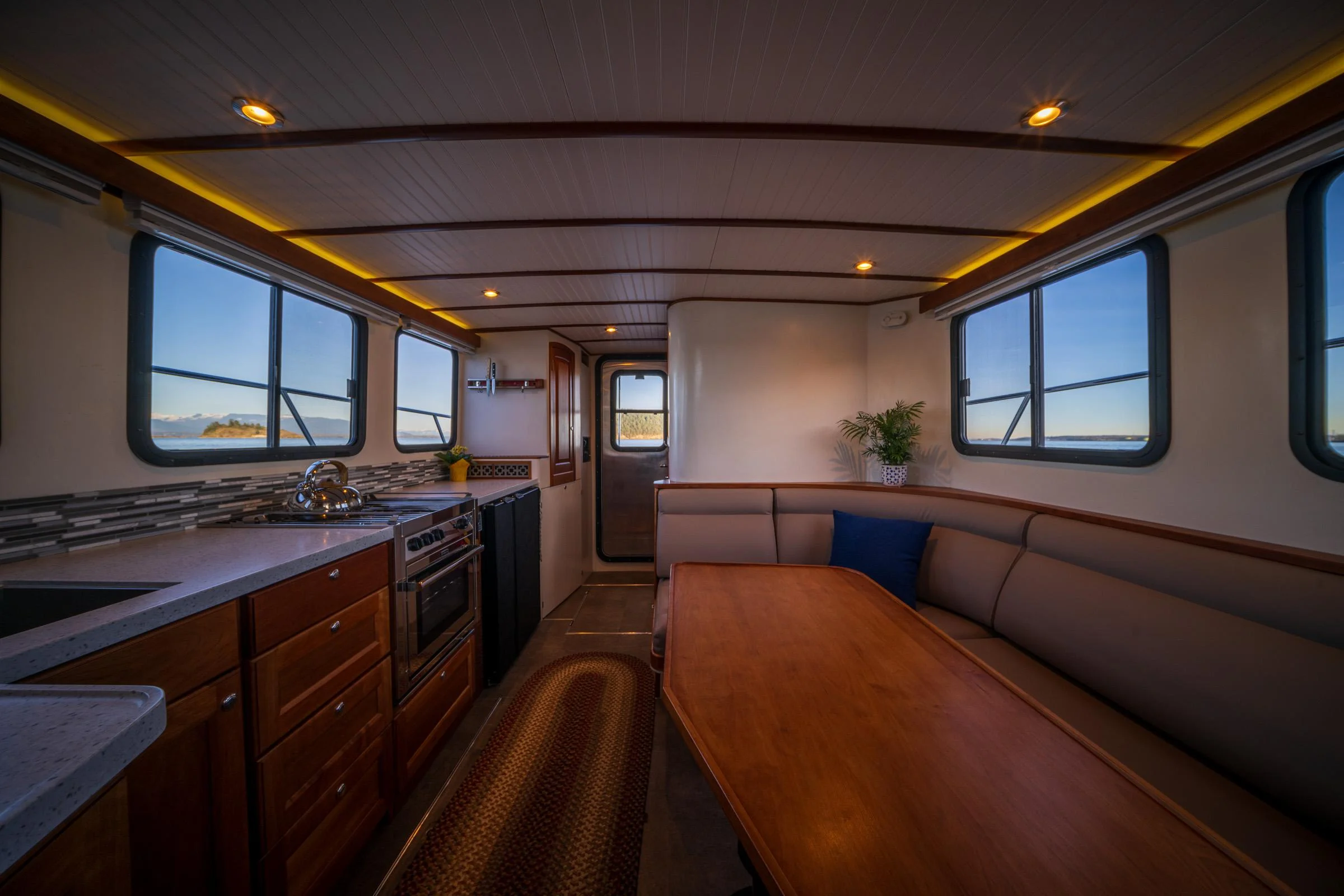

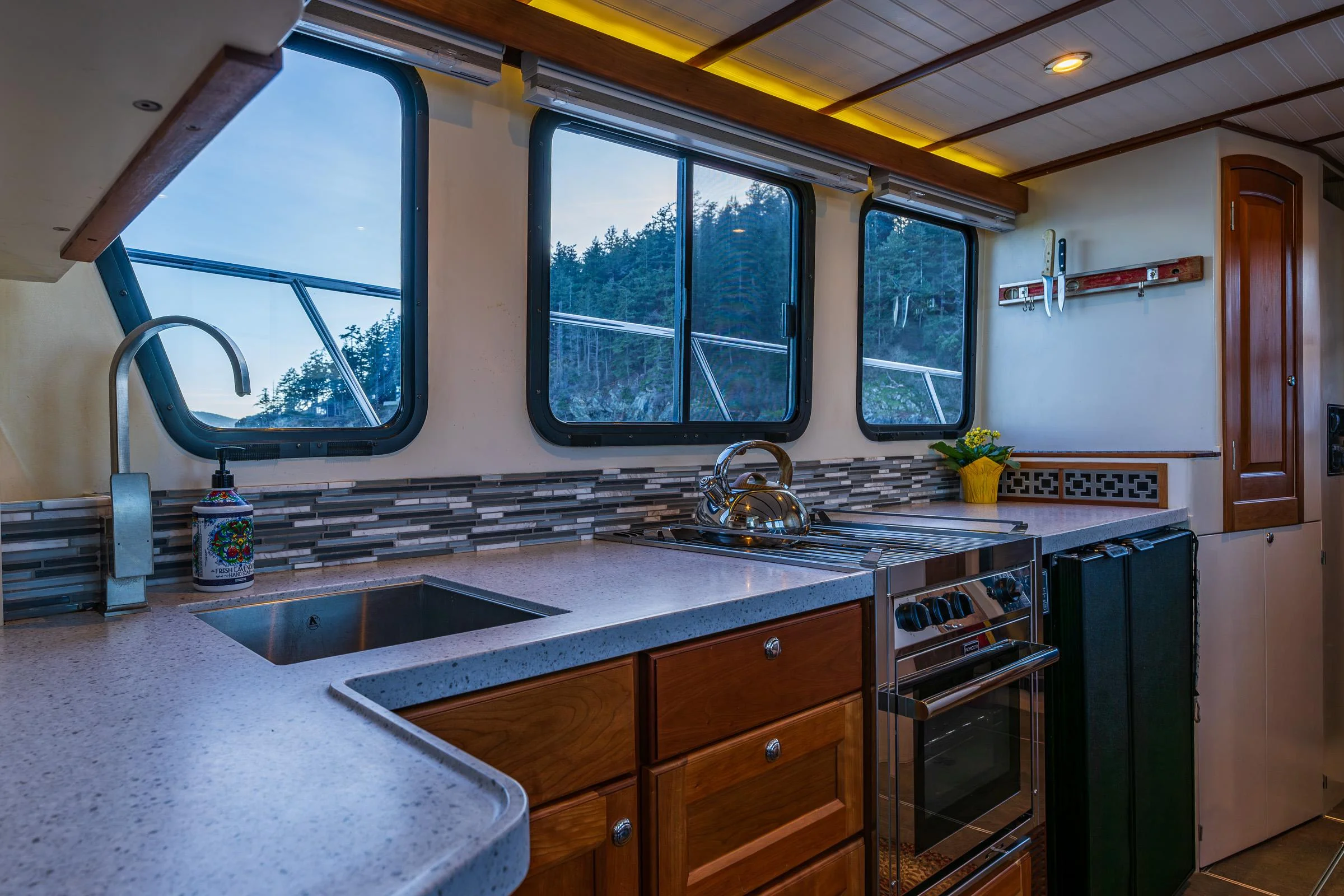

Galley:

• Solid Cherry joinery work.
• Undersink cupboard and plenty of drawer storage.
• Pressure water system.
• Stainless steel deep sink.
• 3 burner Force 10 propane stove with oven.
• 2014 Nova Kool model RFS 7501, 7.5 cubic ft (212 Litre) AC / DC frig with built in freezer.
• Sliding windows port and starboard with screens by AJR Marine.
• Corian counter tops.

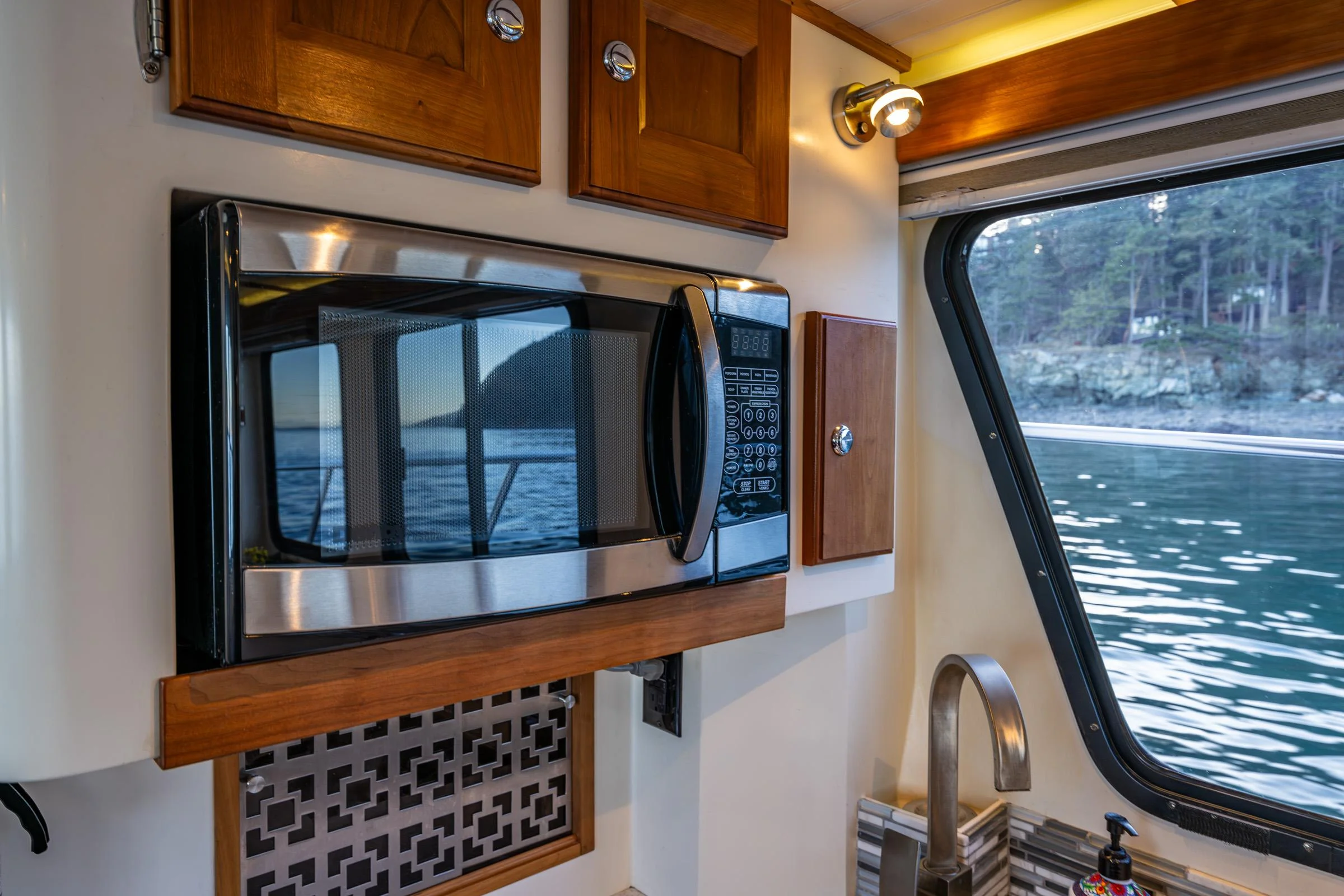

• Built in Danby microwave oven, with small liquor cabinet below.

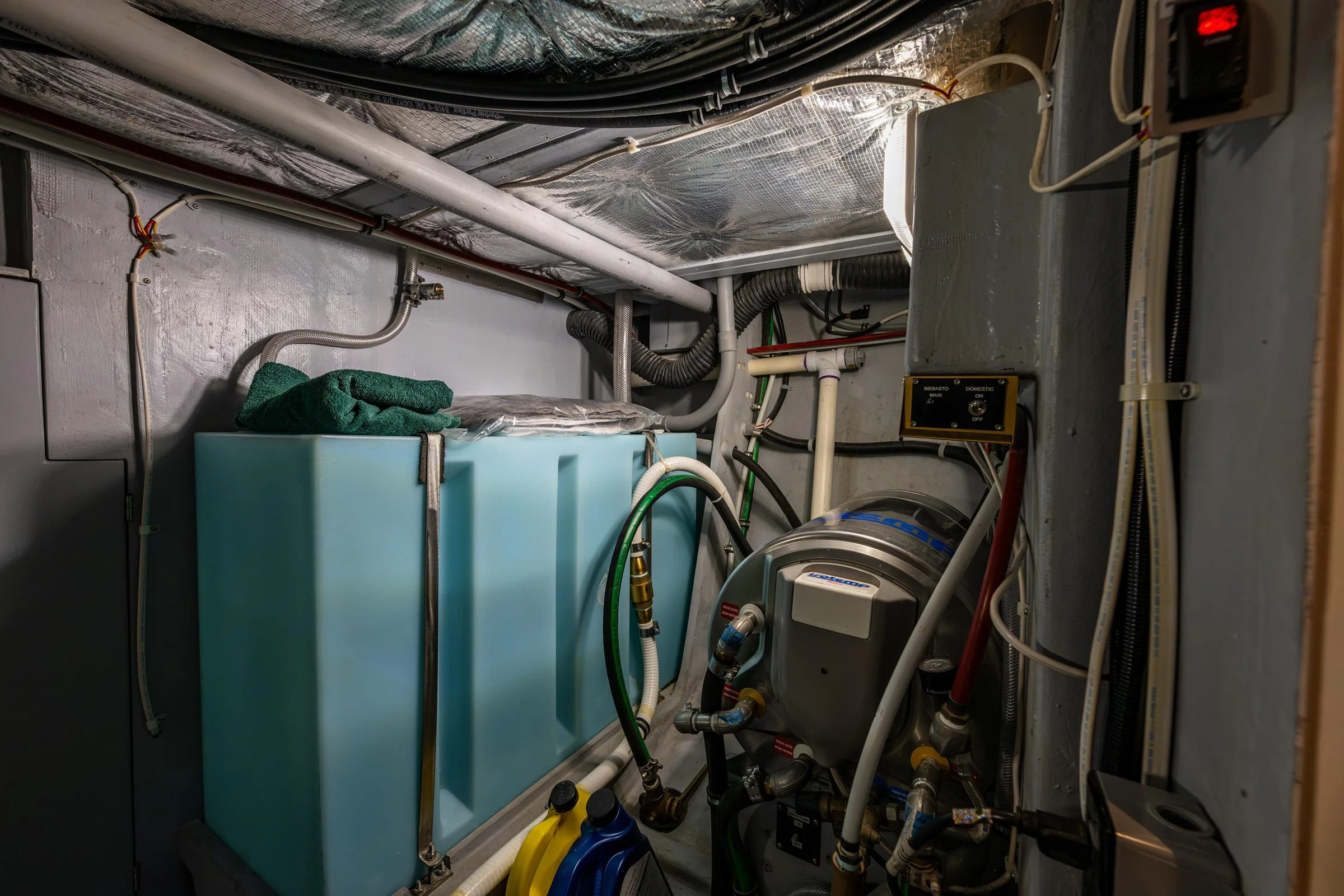

• Isotemp basic 11 gal domestic hot water tank, heated by engine/AC/DC power.
• Jabsco 6 gpm pressure water pump.
• Bi-fold concealed door closes off pilothouse for night cruising

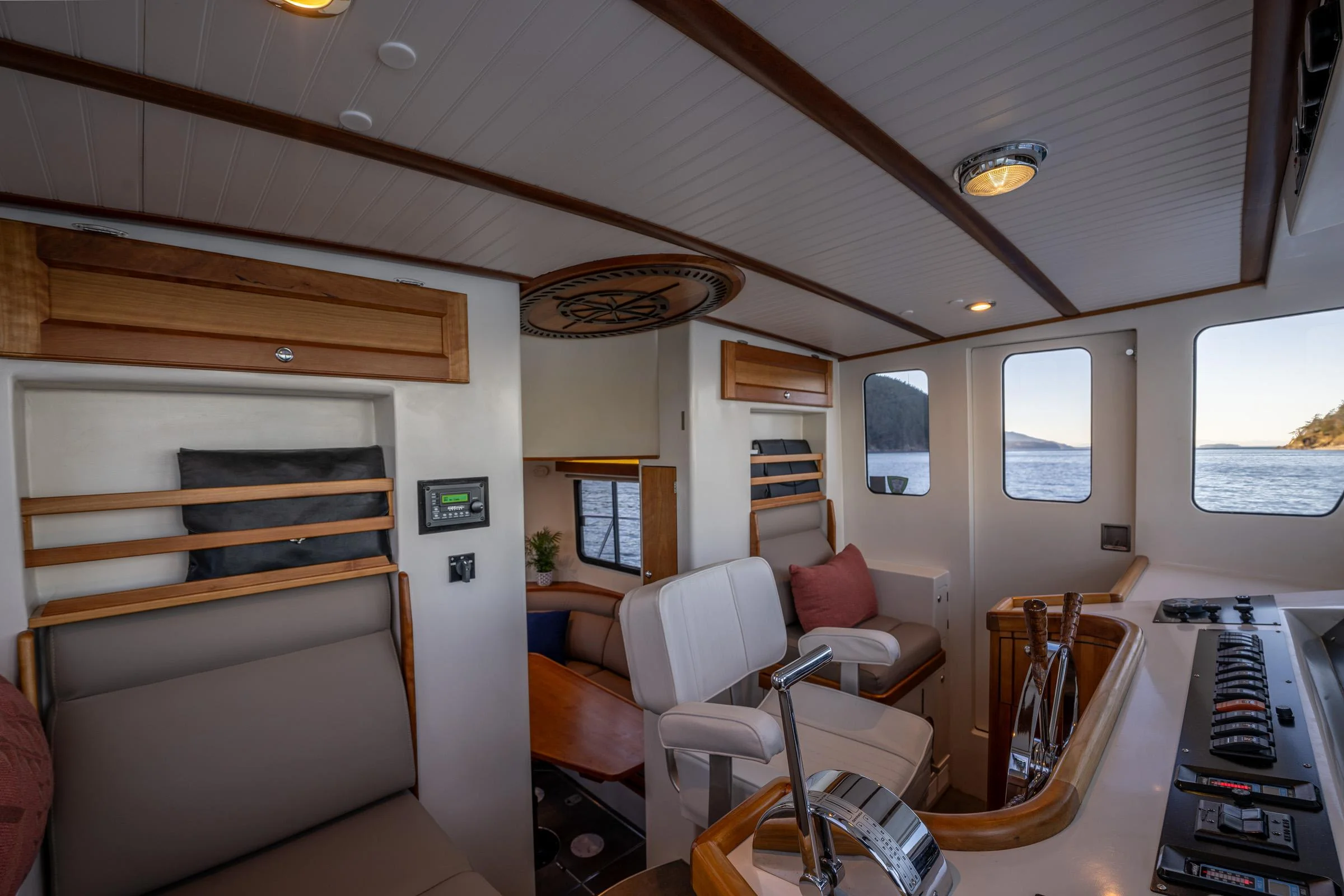

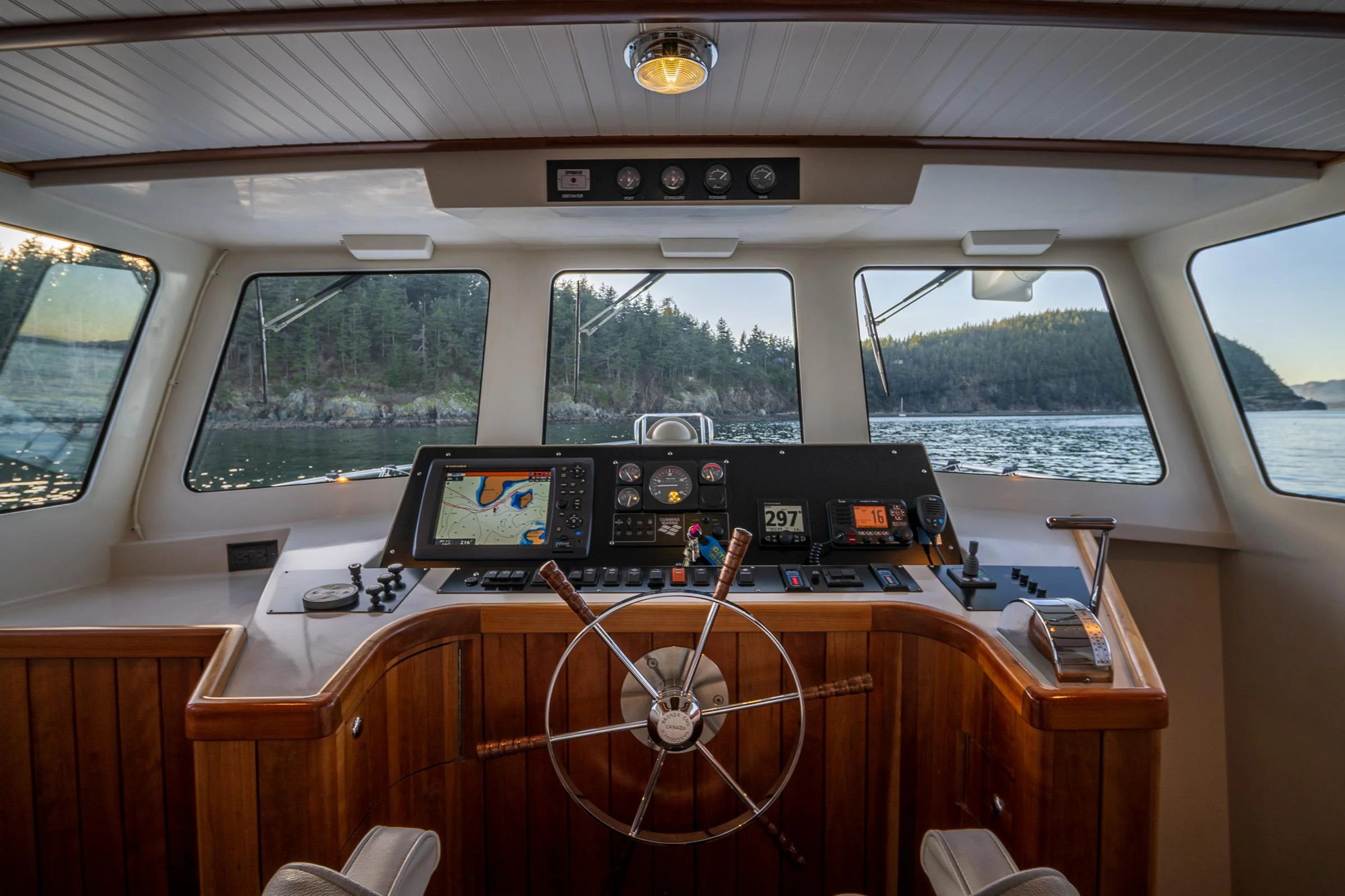

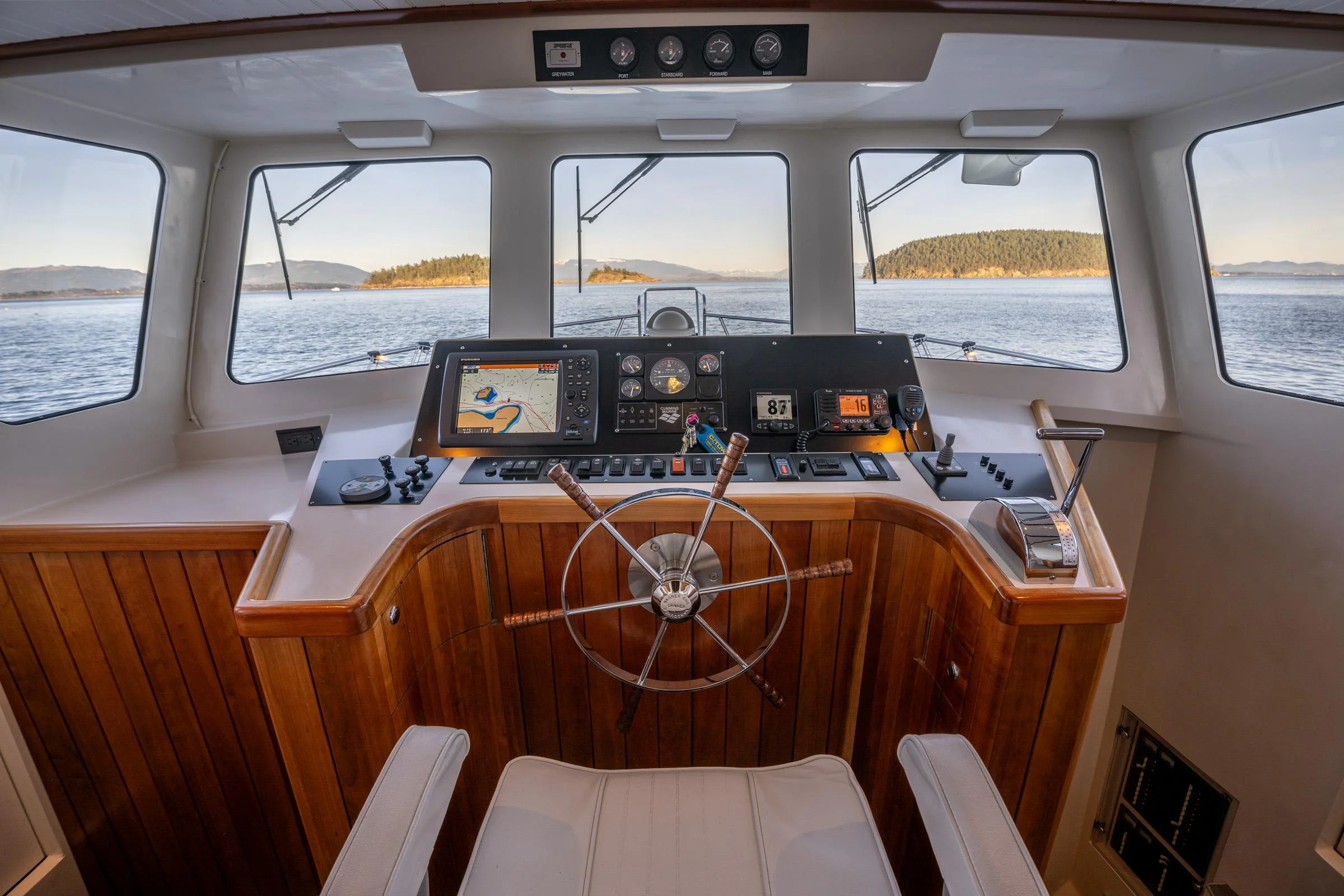

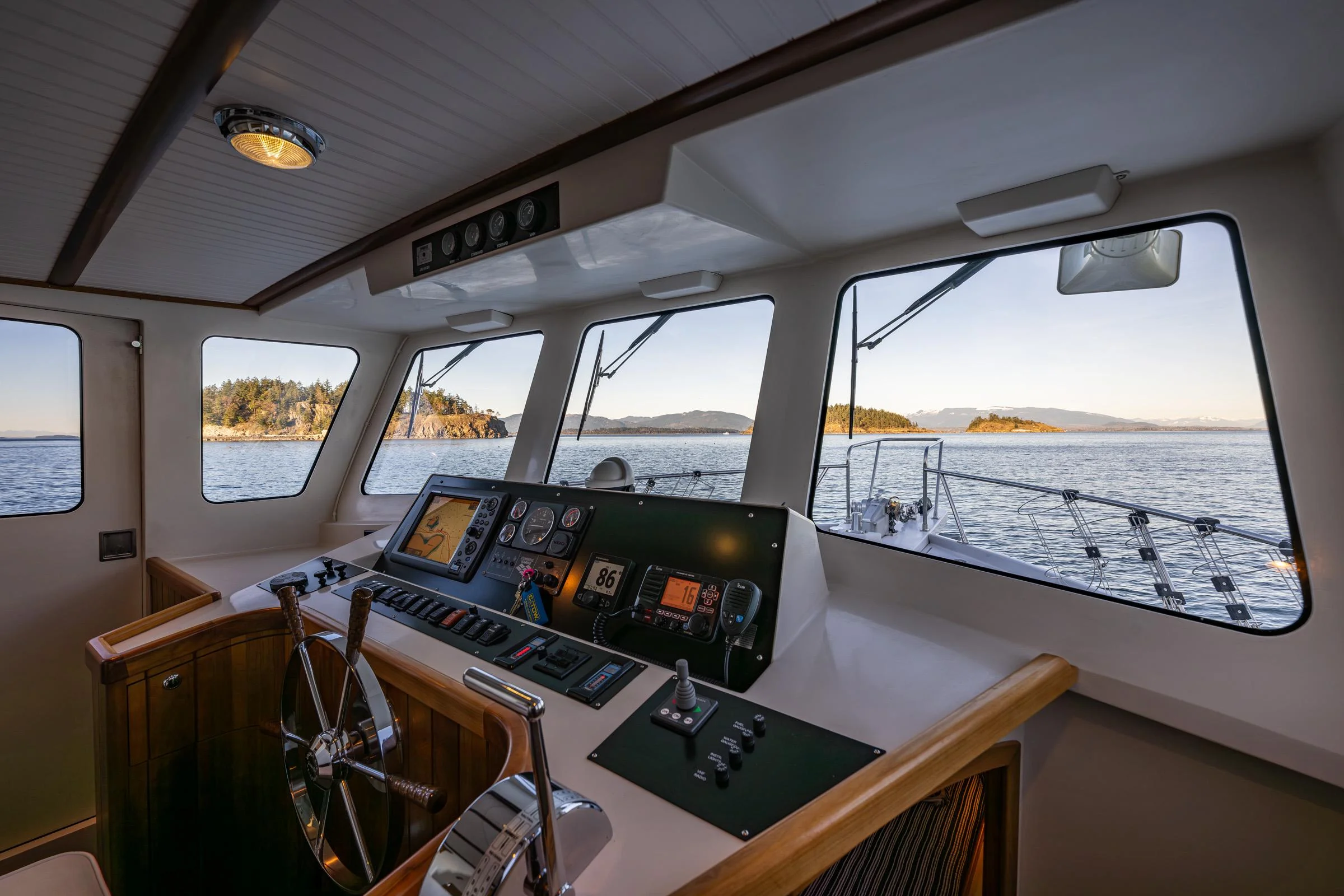

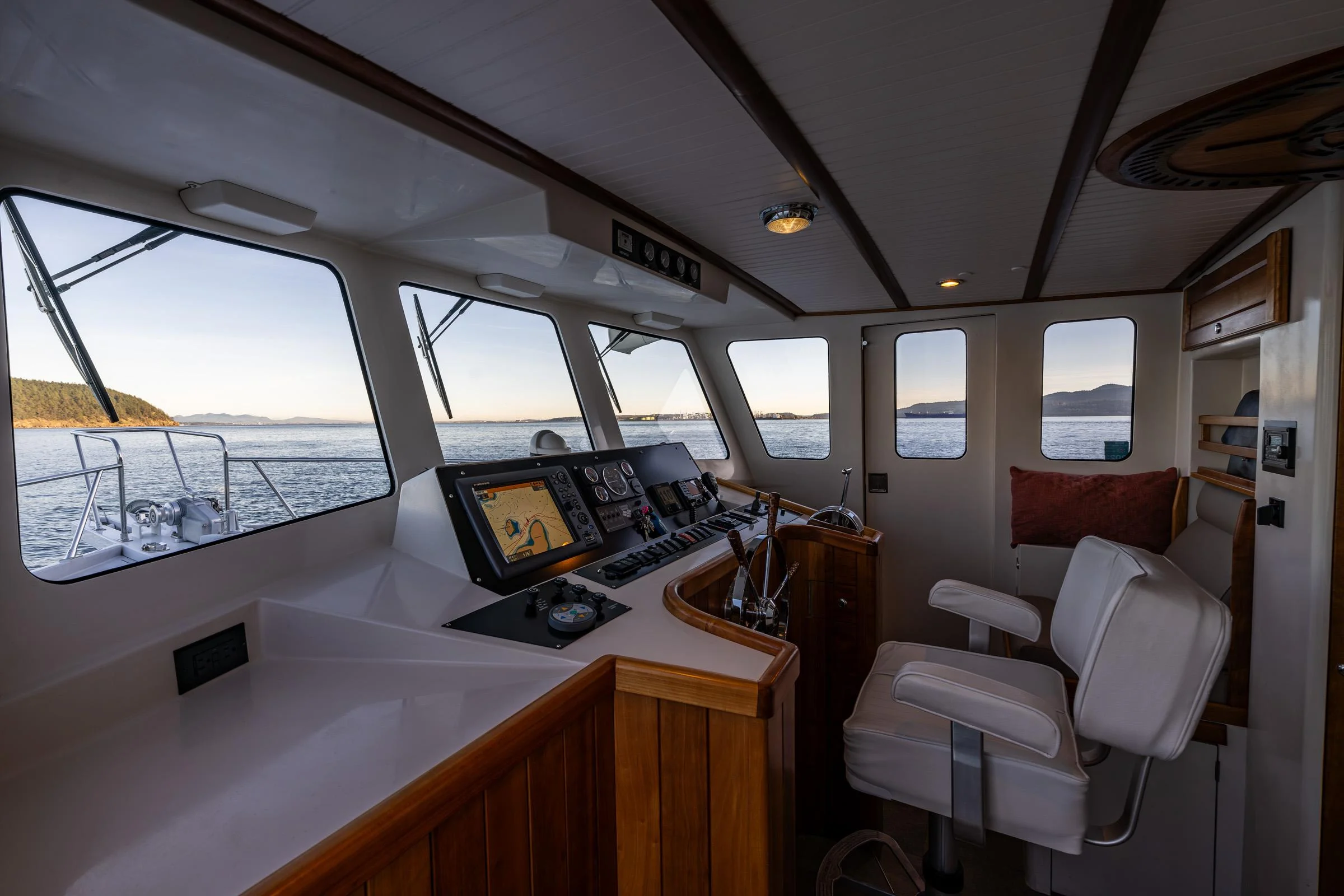

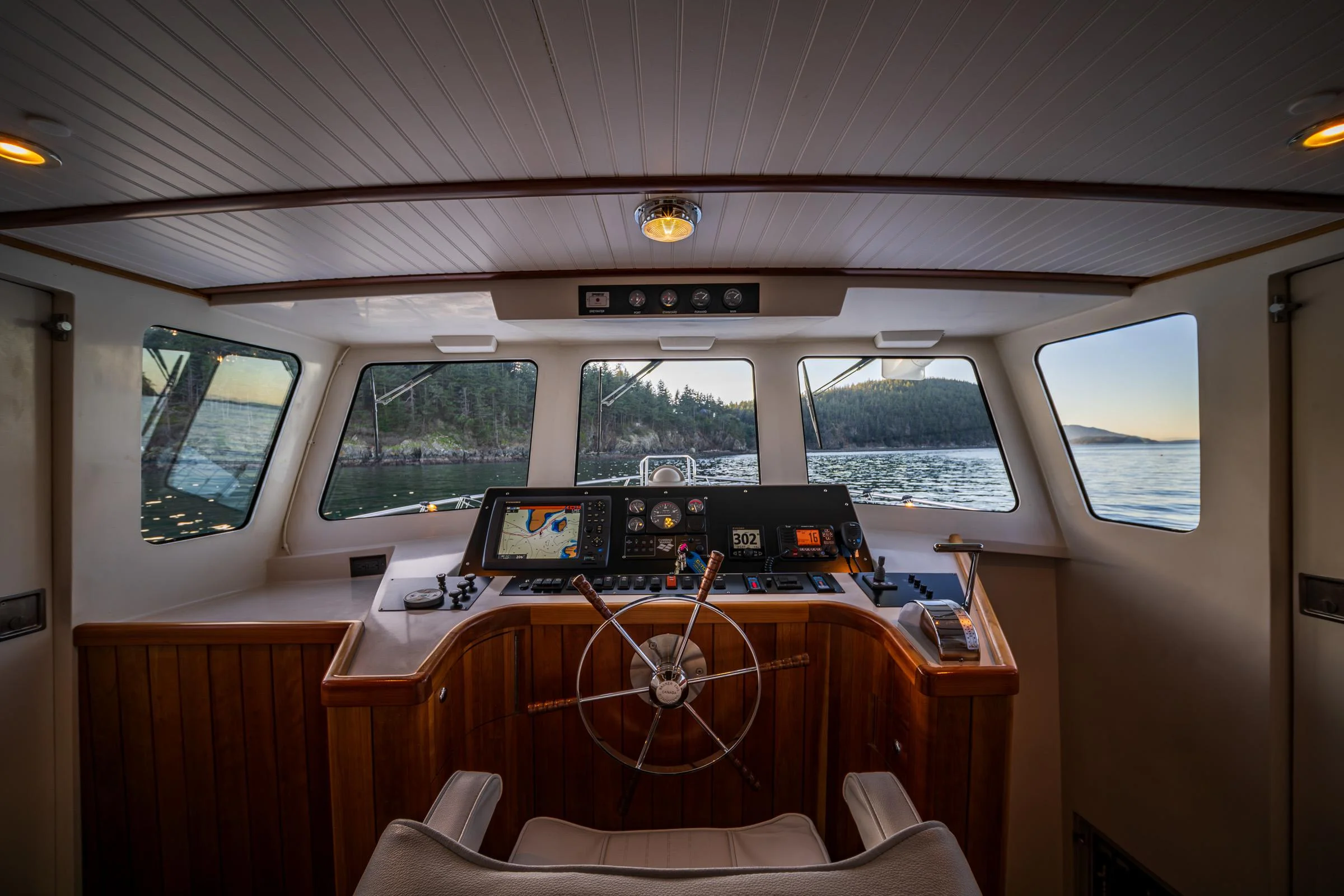

Pilothouse:

• Bennett trim tabs.
• Side Power model SP-55S bow thruster.

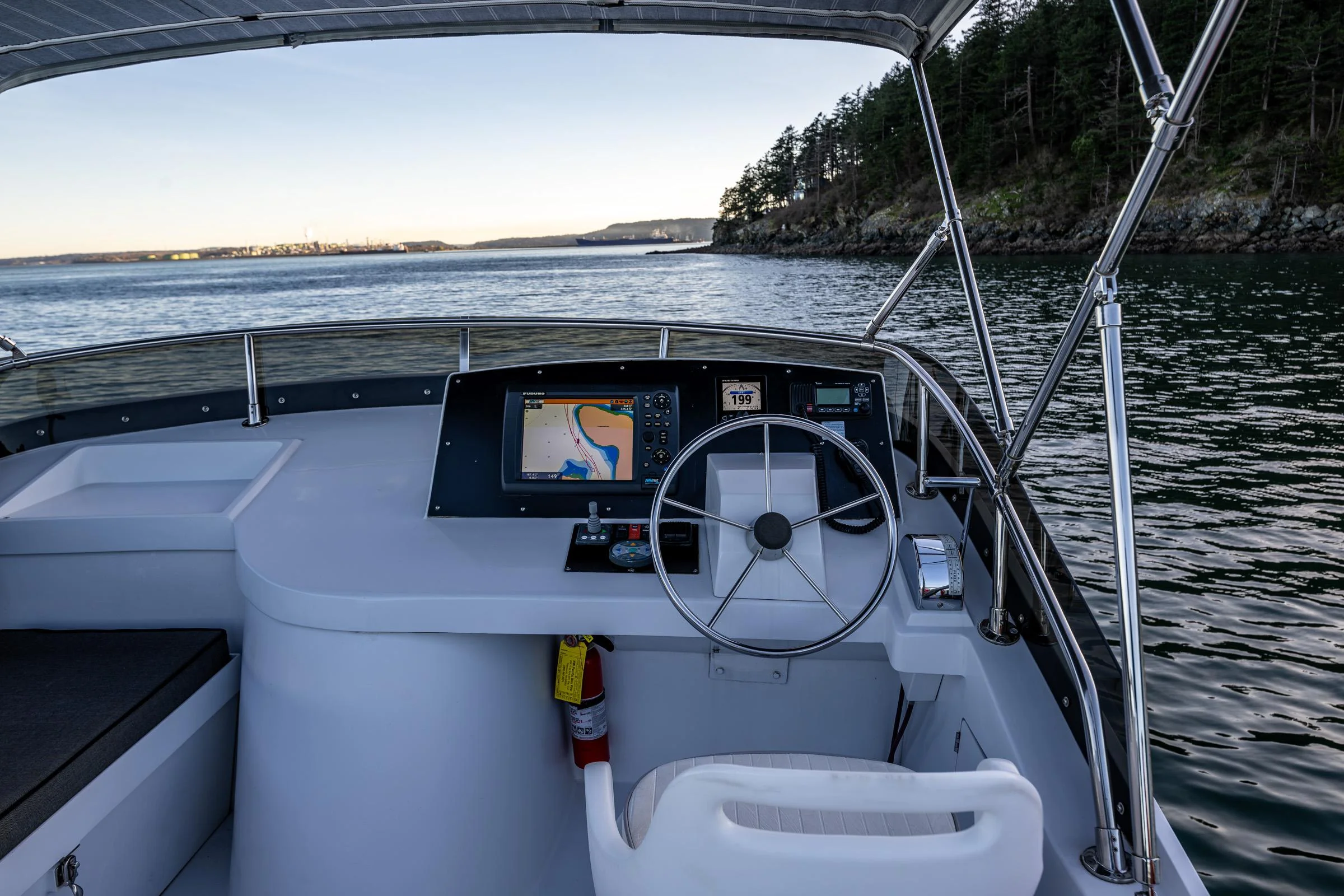

• Electronic controls and windlass are dual station Pilot House and Flybridge controlled.
• Sliding port and starboard doors.
• 2 person seating to port, 1 person to starboard.
• All Cherry wood joinery.

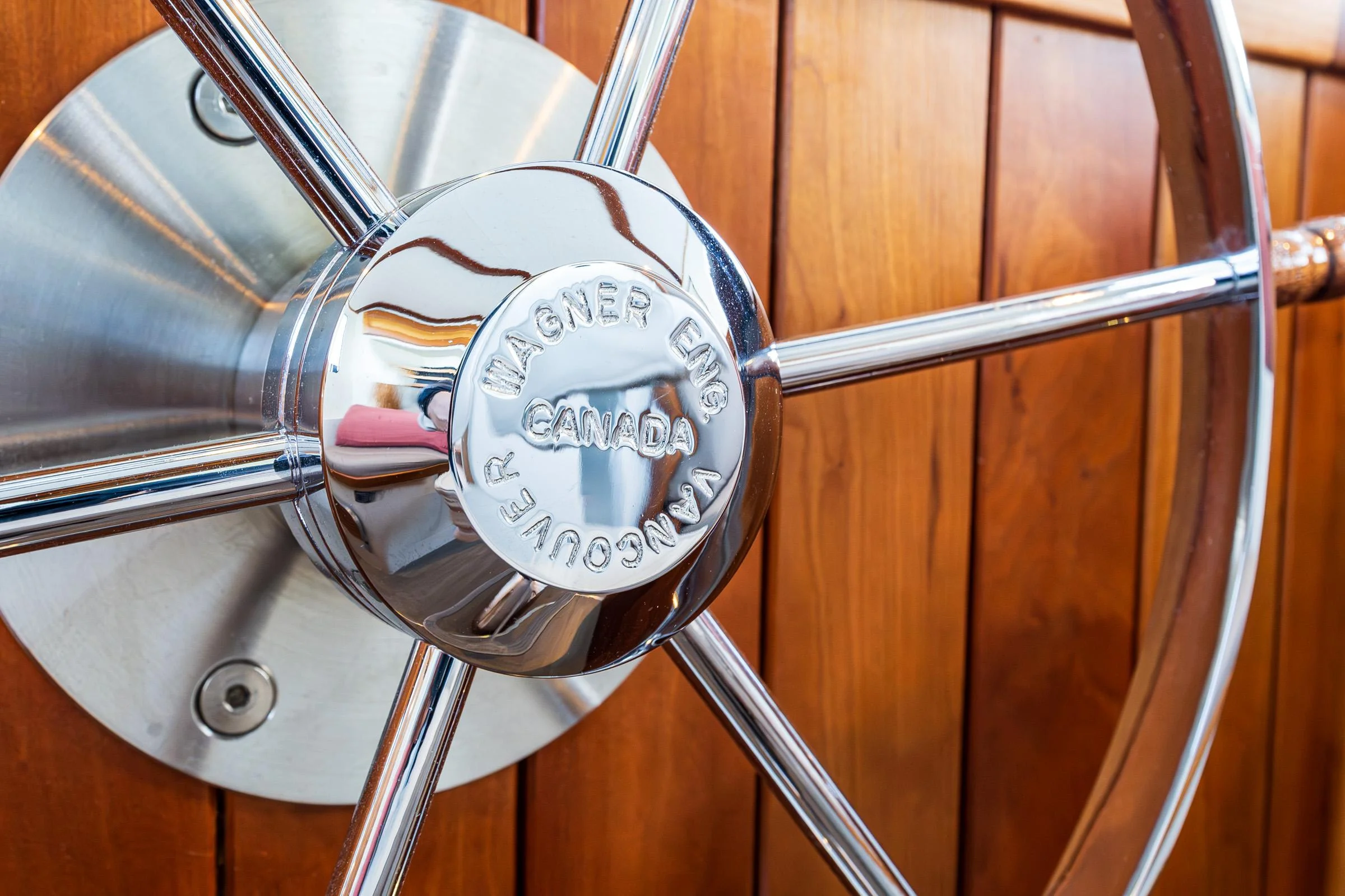

• Stainless steel spoked helm wheel.

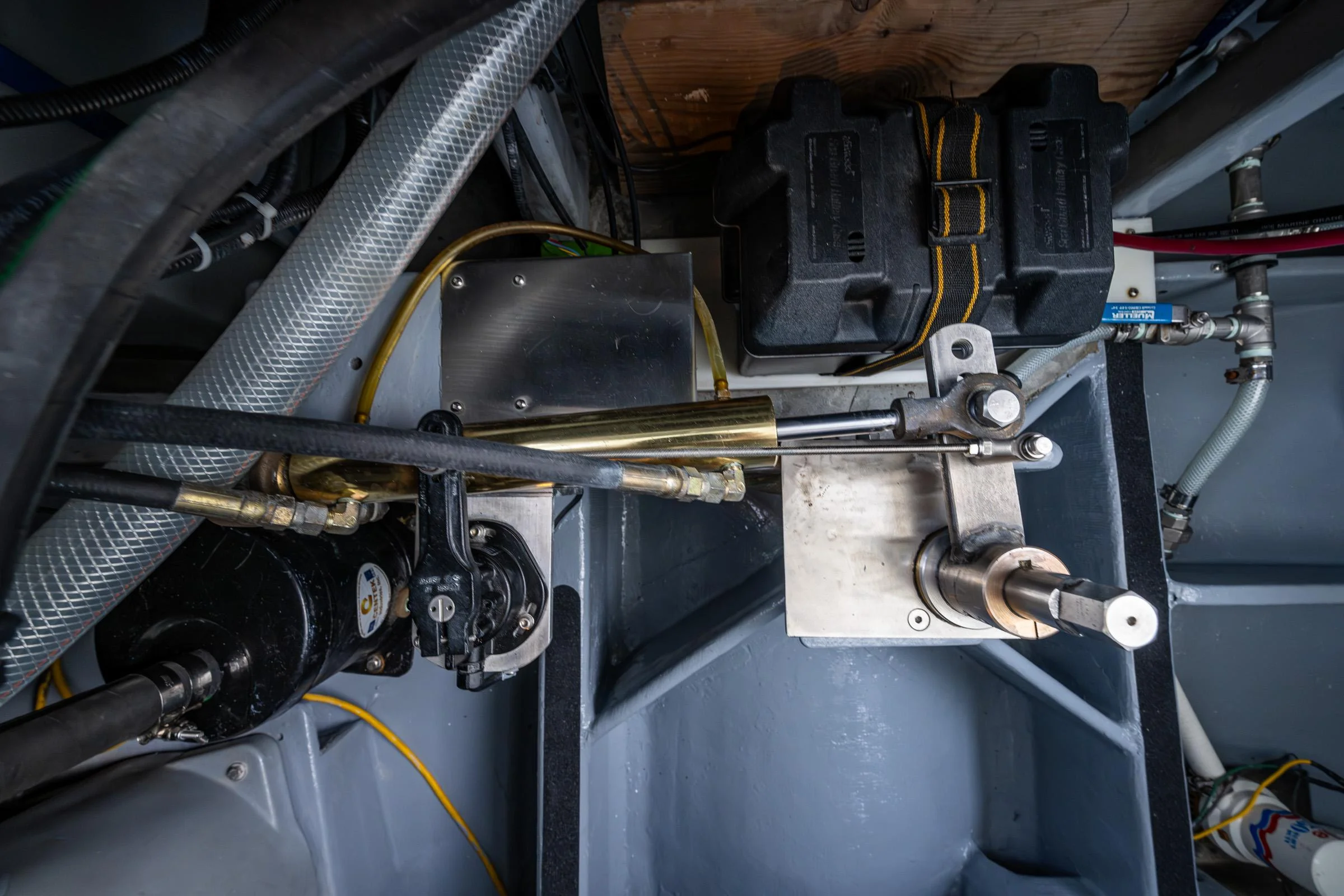

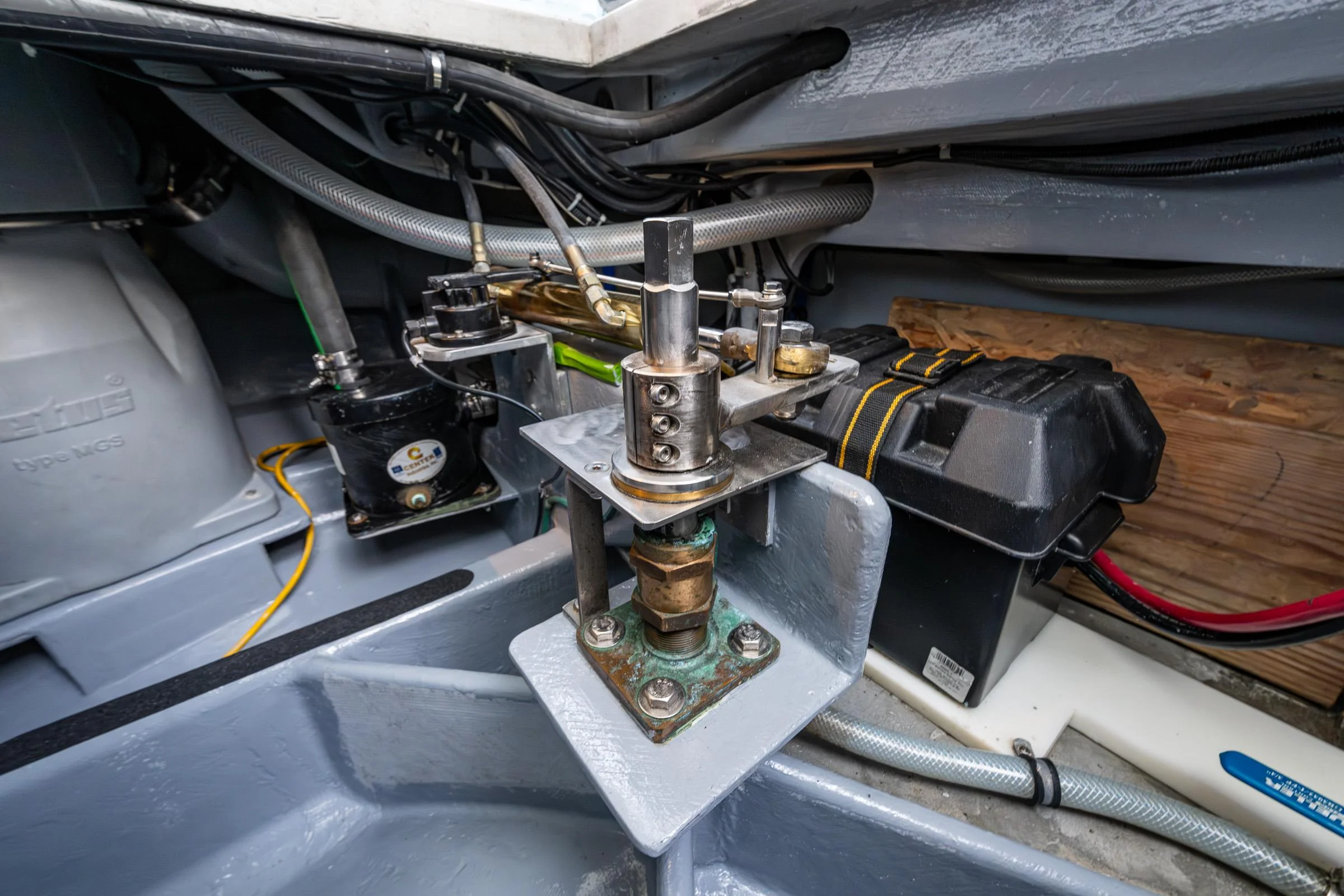

• Hydraulic steering.
• Flood and spot light dual station touch controls
• Arrigon traditional Captains Chair UDG-1P.
• Cushioned inserts transforms into a single pilot house bunk to port.

Safety Equipment:

• USCG equipment all up to date.
• Trident marine approved propane sniffer.
• CO alarms in accommodation spaces.
• Fire extinguishers placed throughout
• GPS and VHF FG antenna's.
• ABYC approved bonding system.
• Custom removable swim ladder.

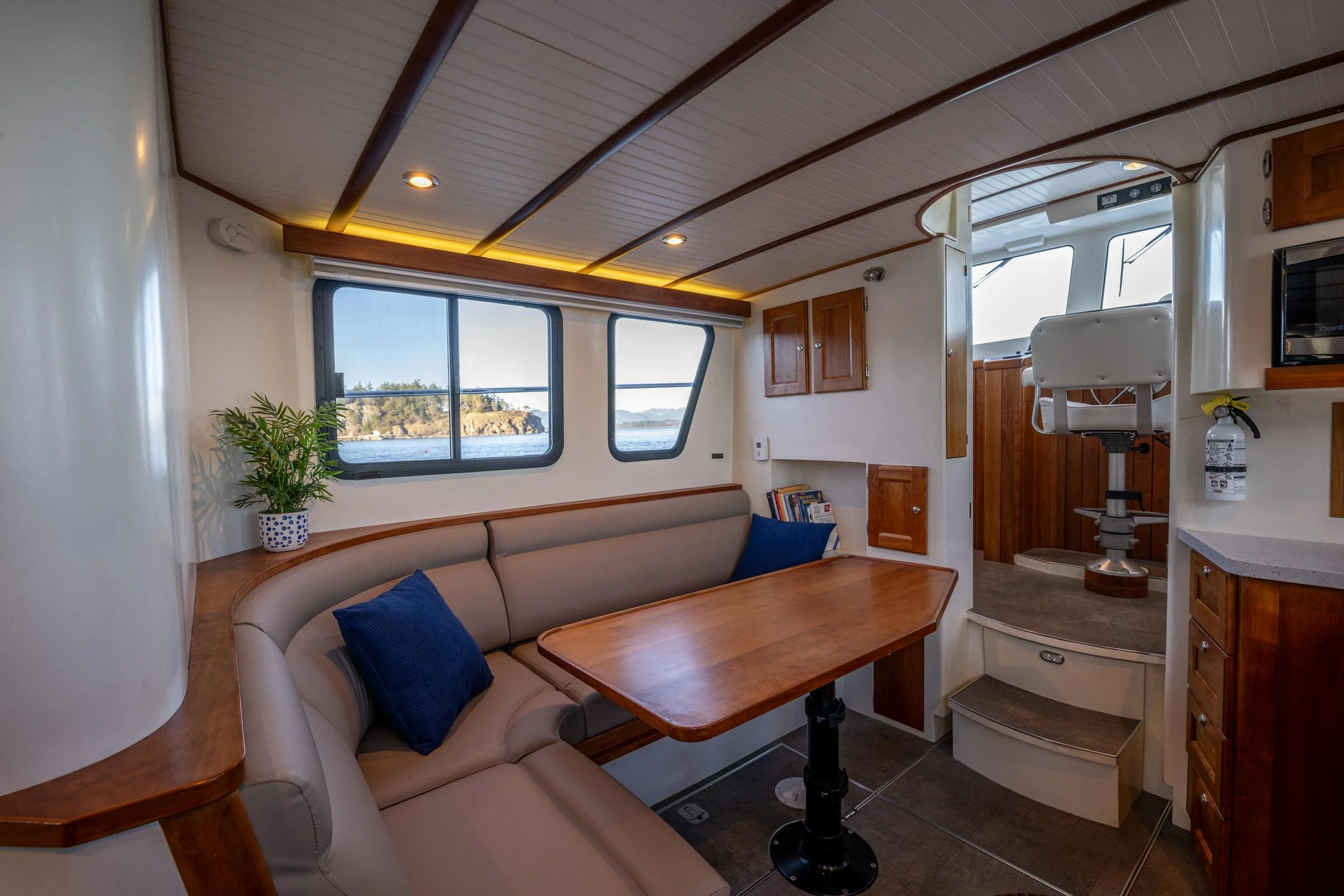

Salon:

• Waterproof tile flooring throughout.
• Painted white bead board overhead with cherry batons. 6'-5" headroom.
• Solid Cherry wood dinette table.
• Custom port and starboard folding window blinds.
• Drop down dinette table forms double bed.

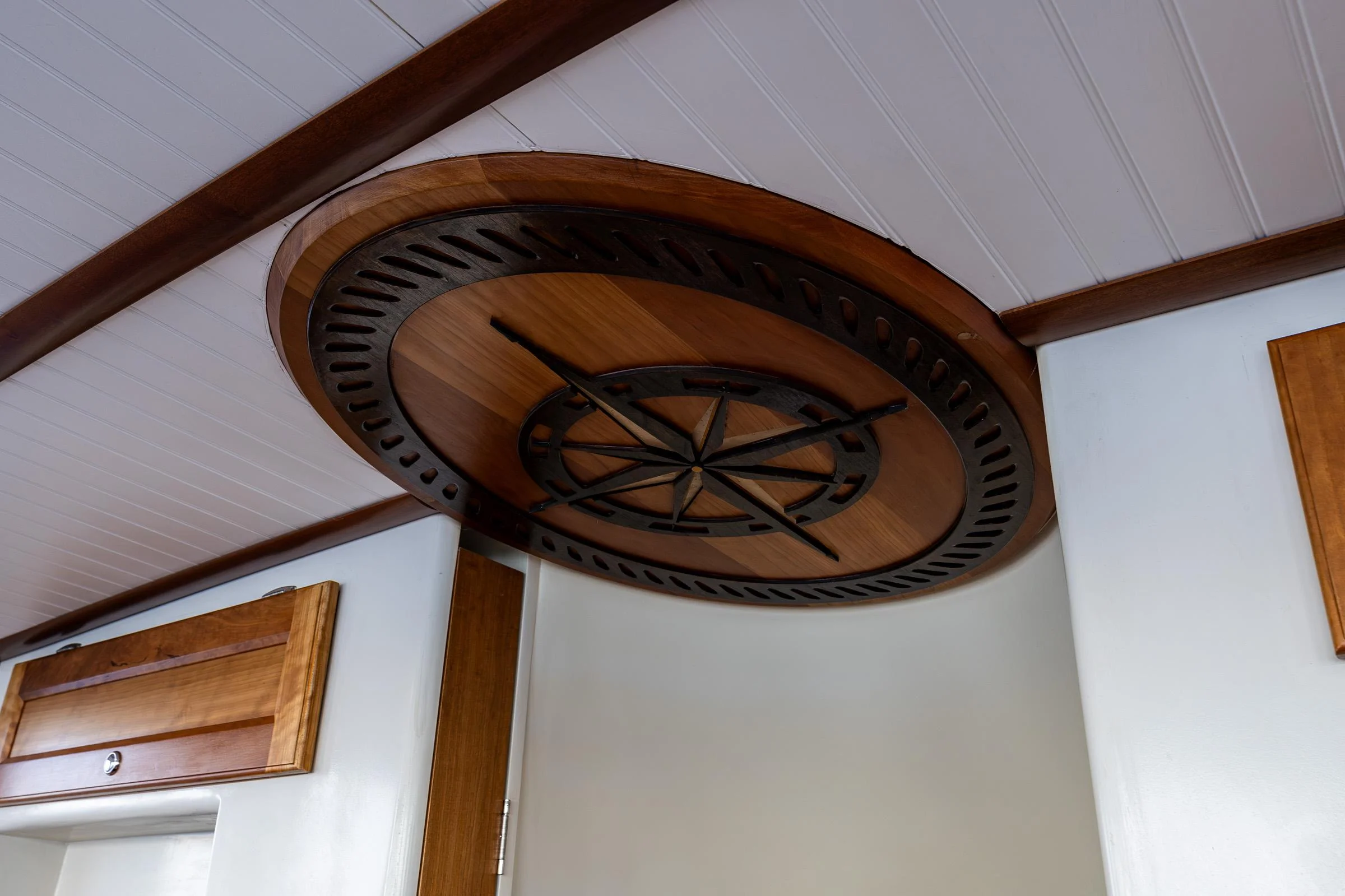

• Custom cherry wood compass rose overhead feature.

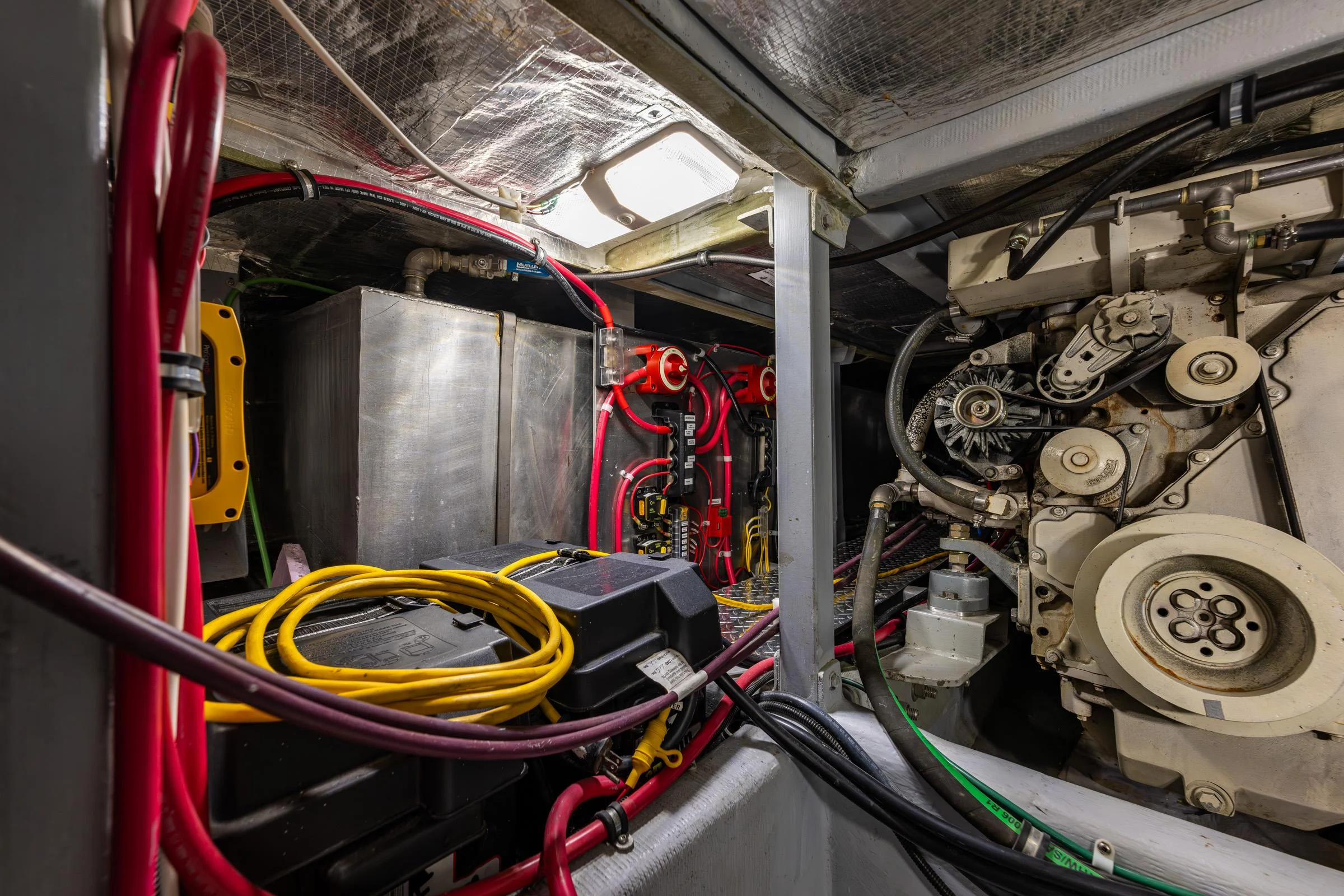

Machinery and equipment:

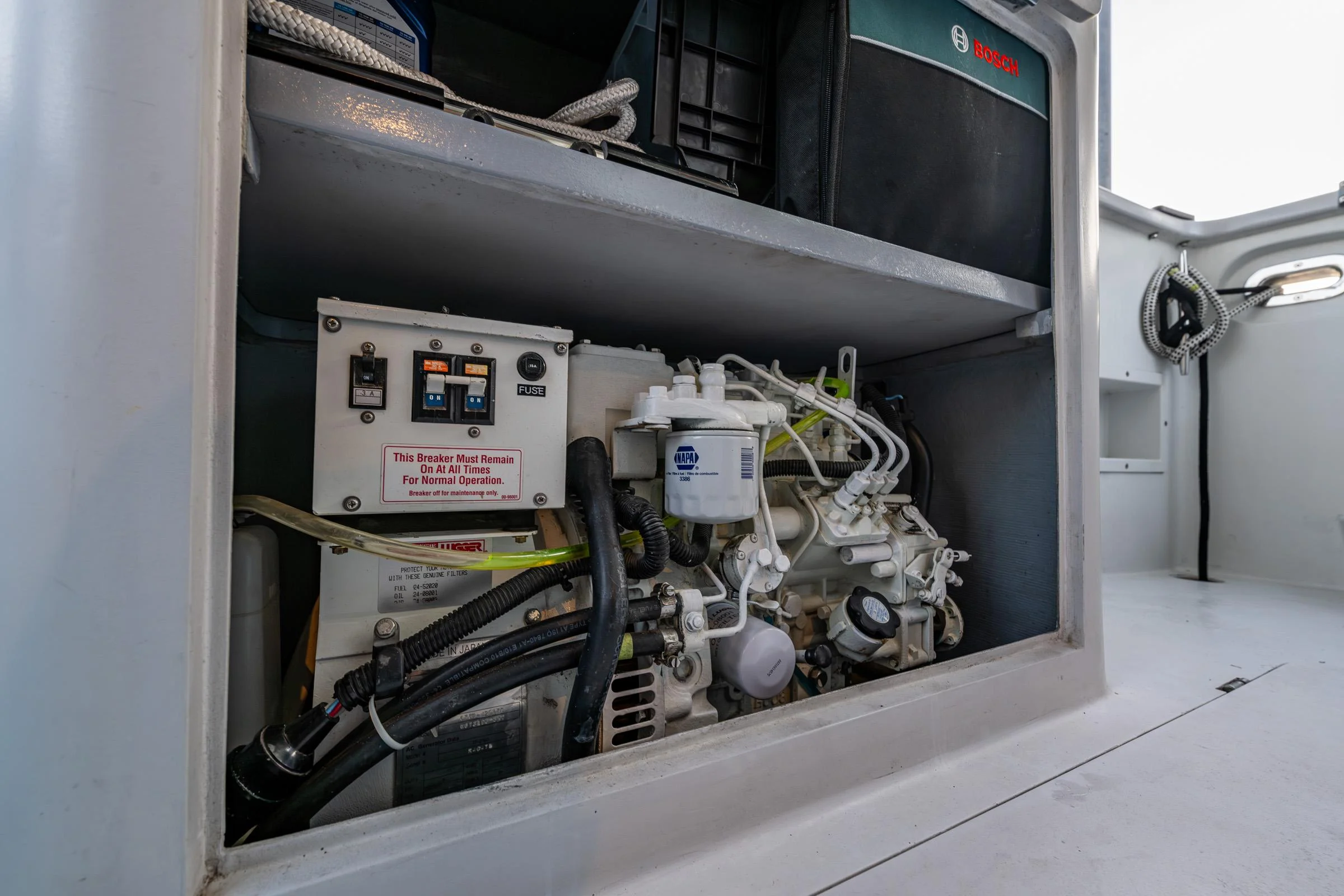

• Northern Lights model M673 LD3 3cyl, 5 kW Lugger genset with only 31 running hours.

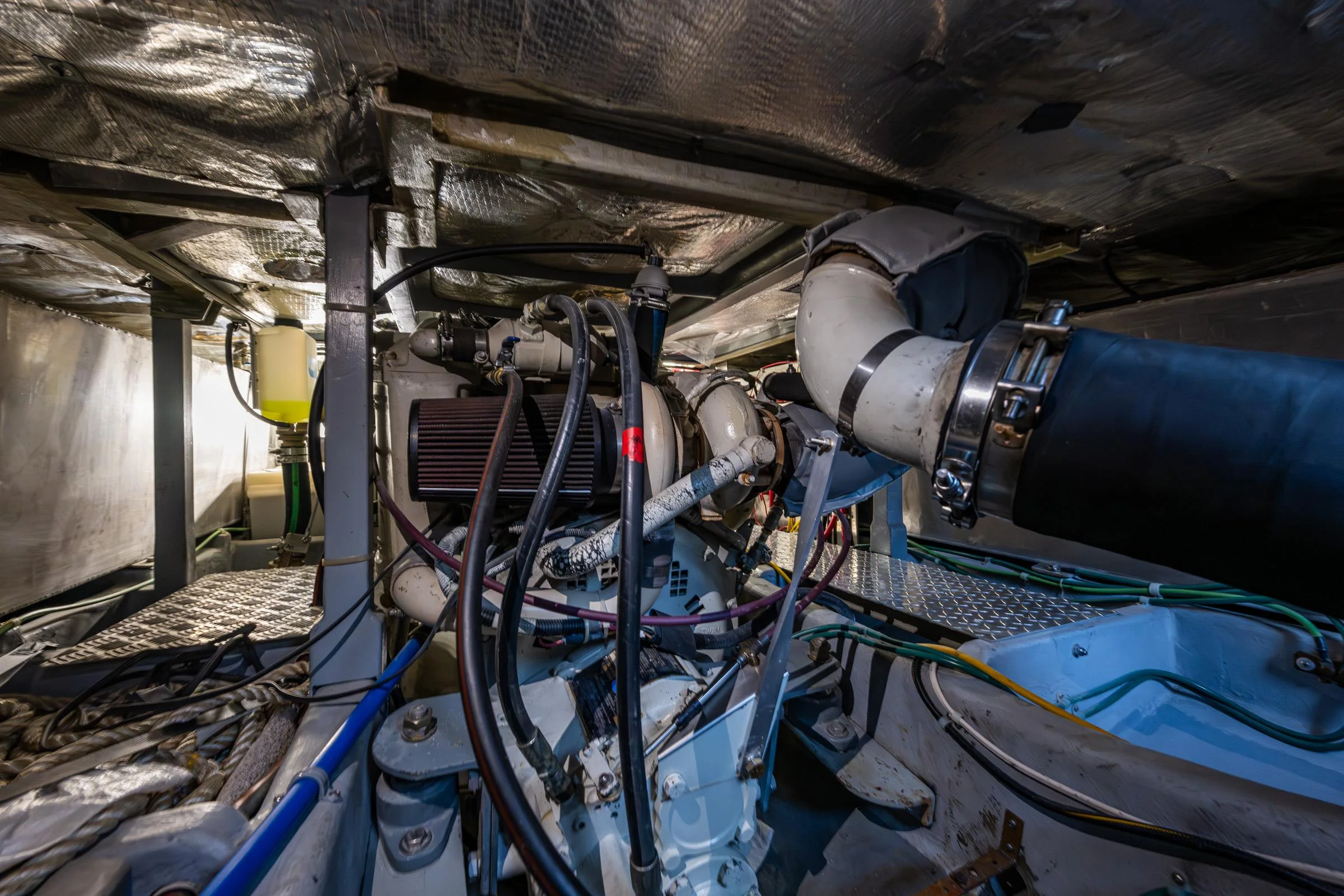

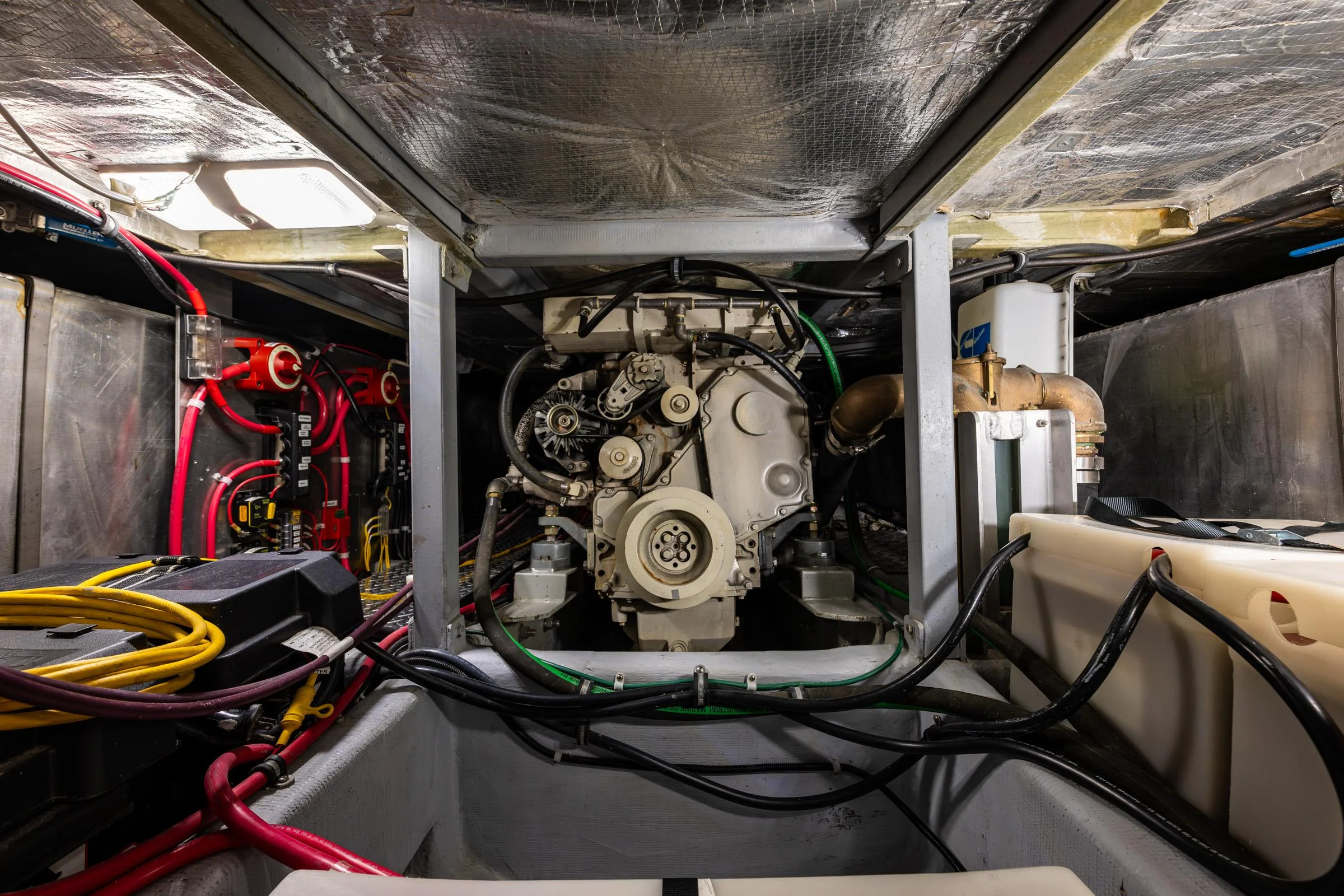

• Cummins 300 hp, 6 cylinder marine diesel. Model GBTA5.9-M2, with only 263 original running hours. Fresh water cooling by heat exchanger, with heavy duty bronze cooling water intake valve and filter.
• Fuel consumption is approximately 3 gal / hr at 8 knots, and 1600 rpm.

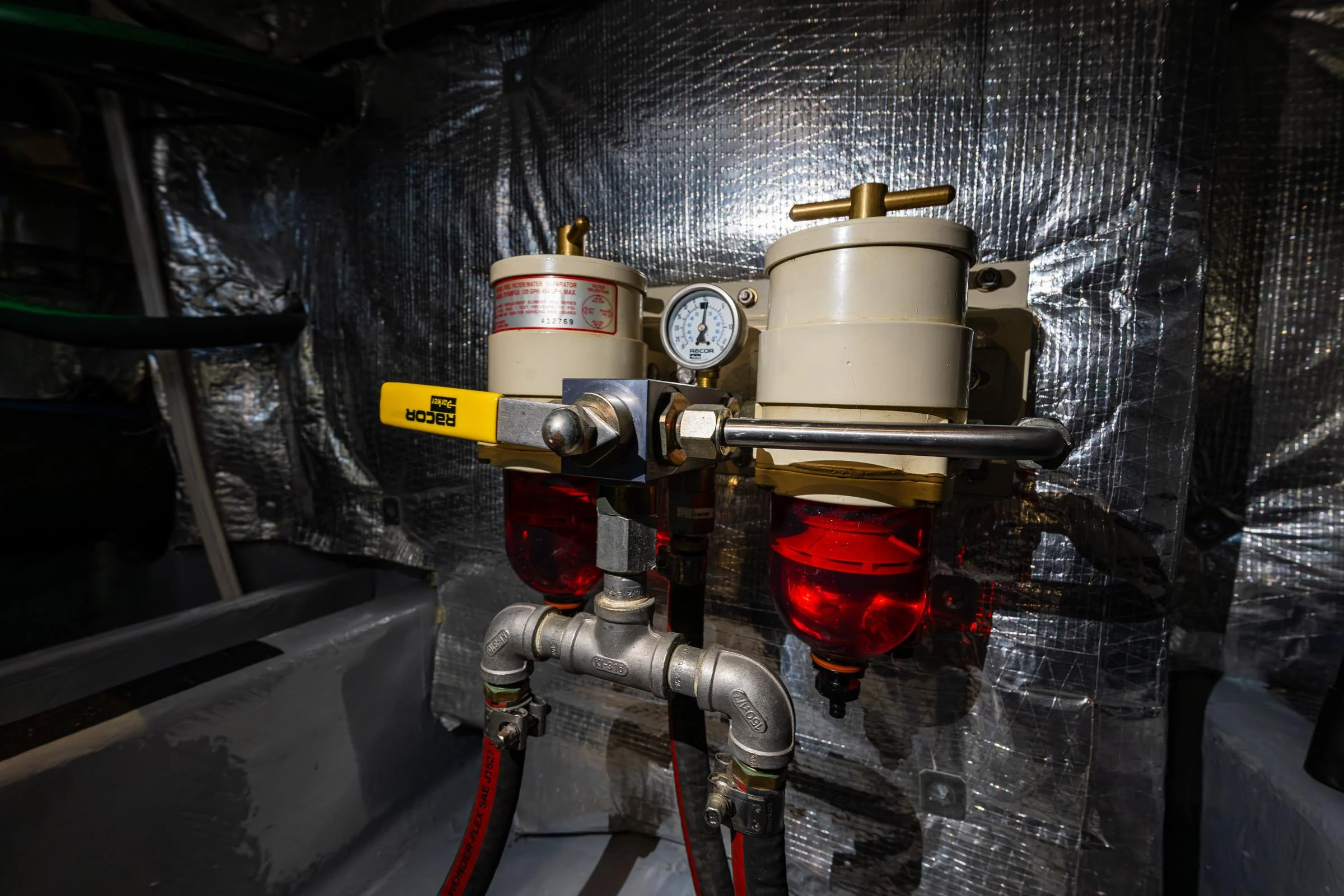

• 2 Racor fuel filters.
• Wet exhaust discharges starboard side of transom above the waterline.
• Vetus water lift muffler.
• Delco 105 amp alternator.
• Twin Disc model 50/50 marine reduction gear.
• Auto pump engine oil change system and oil filters easily accessed from under saloon sole, beside battery switches.
• Rule 2000 auto / electric bilge pump.
• All other bilge spaces have auto / electric pumps. 2 @ 1000 gph & 1 @ 1750 gph.
• 2019 Dripless shaft seal.
• 2" diameter SST Aquamet alloy prop shaft.
• 28" x 22" Bronze right hand 3 blade propeller.
• Side Power model SP55S bow thruster, dual station controlled.
• Heavily insulated main engine exhaust pipe.
• Heat and sound control blanket insulation throughout engine room.
• Engine room blower fan.
• Spare through hull and discharge for water maker.
