General information
- Generator 13 kW
- Air Conditioning BTU 60,000
- Water maker Predisposition
- Dishwasher in galley
- Washer dryer combo unit
- Miele appliances with microwave combo and cooktop
- Hi-lo system with TV 42"
- Raymarine AIS 650
- Raymarine Gold Package (Fly: 2 x chart plotter Ray marine a125, RMK-9 remote control, i70, p70R autopilot, Raymarine Open array HD 4kW 48” Color, VHF 2nd station.

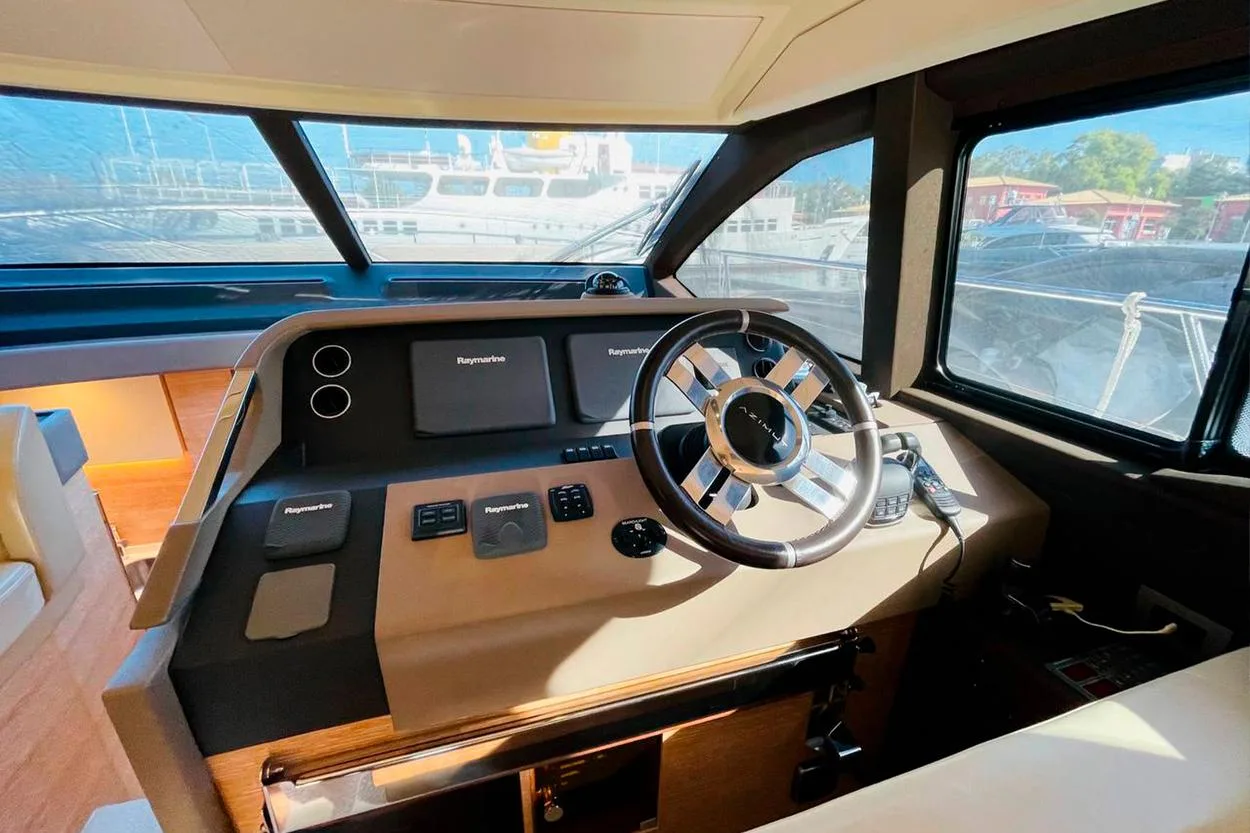

- Main helm: 2 x chart plotter Raymarine a125, RMK-9 remote control, i70, p70R autopilot, VHF Ray260, Ray marine VCM100 voltage converter module, SMART DST800 transducter in hull (depth / speed / temperature), HS- 5 network switch, EV-1 autopilot sensor core)
- Easy Docking maneuvering joystick for engines and trusters Xenta
- Electric mooring winches
- Painted hull color Miami Silver Met (MA048.17)
- Teak on cockpit and swimming platform
- Telescopic electro-hydraulic gangway
- Tender Williams 285 (2016 work hours 30)
Engines
- Manufacturer VOLVO Penta
- Model D11 - 670 mHp
- Type Diesel engine
- Max. power 2x 493 kW
Propellers
- Model 4 blades
- Building material NiBrAl
- Diameter 740 mm
- Pitch 1,400 mm
- Profile C-foil

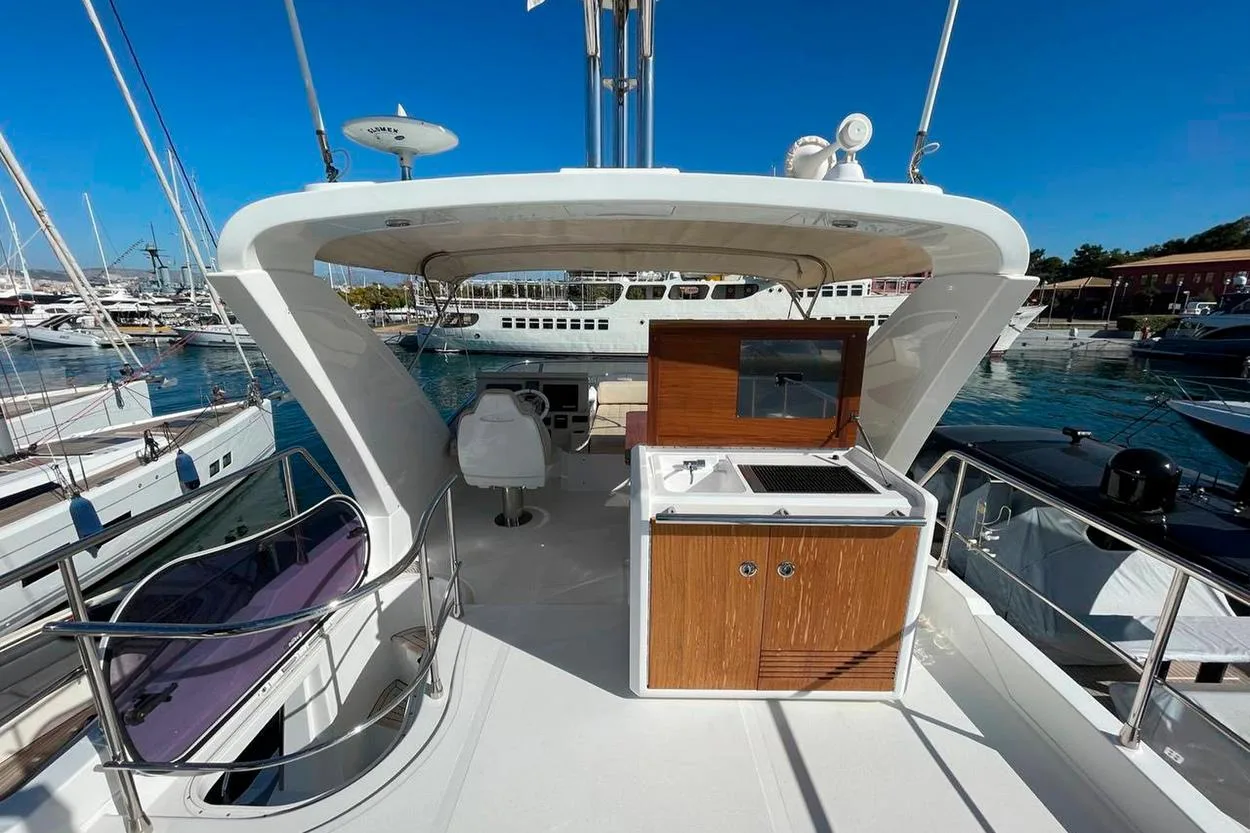

Flybridge
- Smoked plexiglas windbreak with stainless steel and aluminum frame
- Adjustable steering wheel (4-spoked steering wheel white painted)
- C-shaped sofa connected to sunbed area
- Teak table with central stainless steel leg

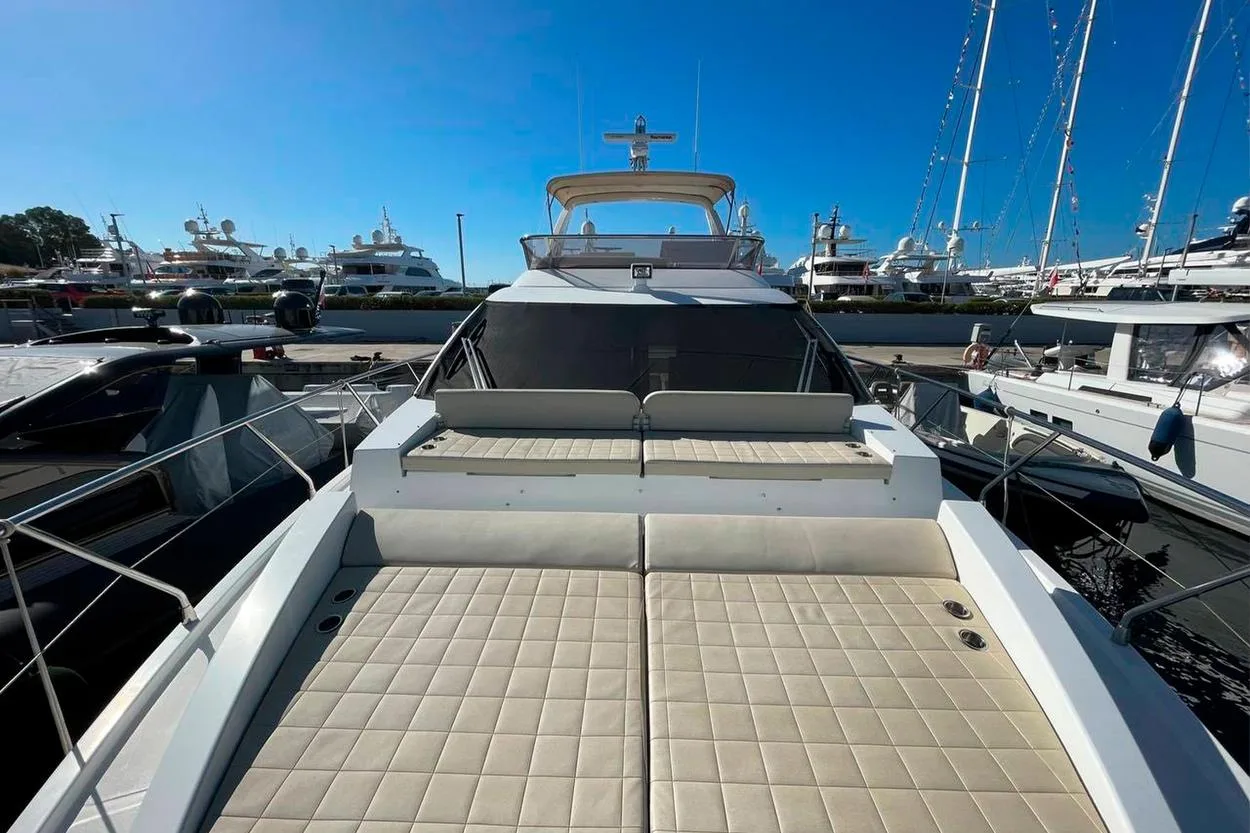

Bow
- DELTA 25kg galvanized steel anchor
- 75 m long high strength 10 mm gaged chain
- 2000W winch
- 2 stainless steel cleats L. 300 mm oval tube
- Chain washing pump
Platform
- Hydraulic platform
- Swimming ladder
- Installable tender

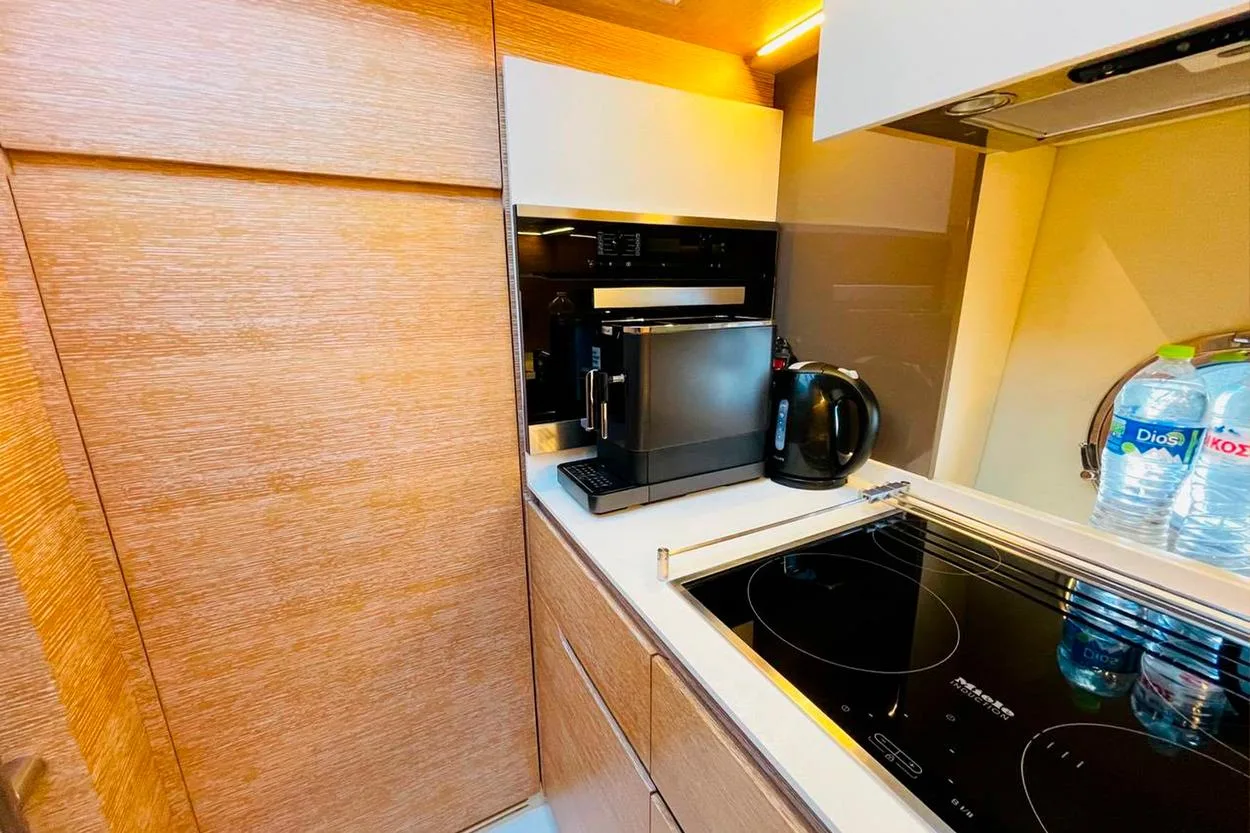

Galley
- Microwave oven + grill
- 1 stainless steel sink
- Refrigerator + 220-liter upright freezer
- Openable porthole

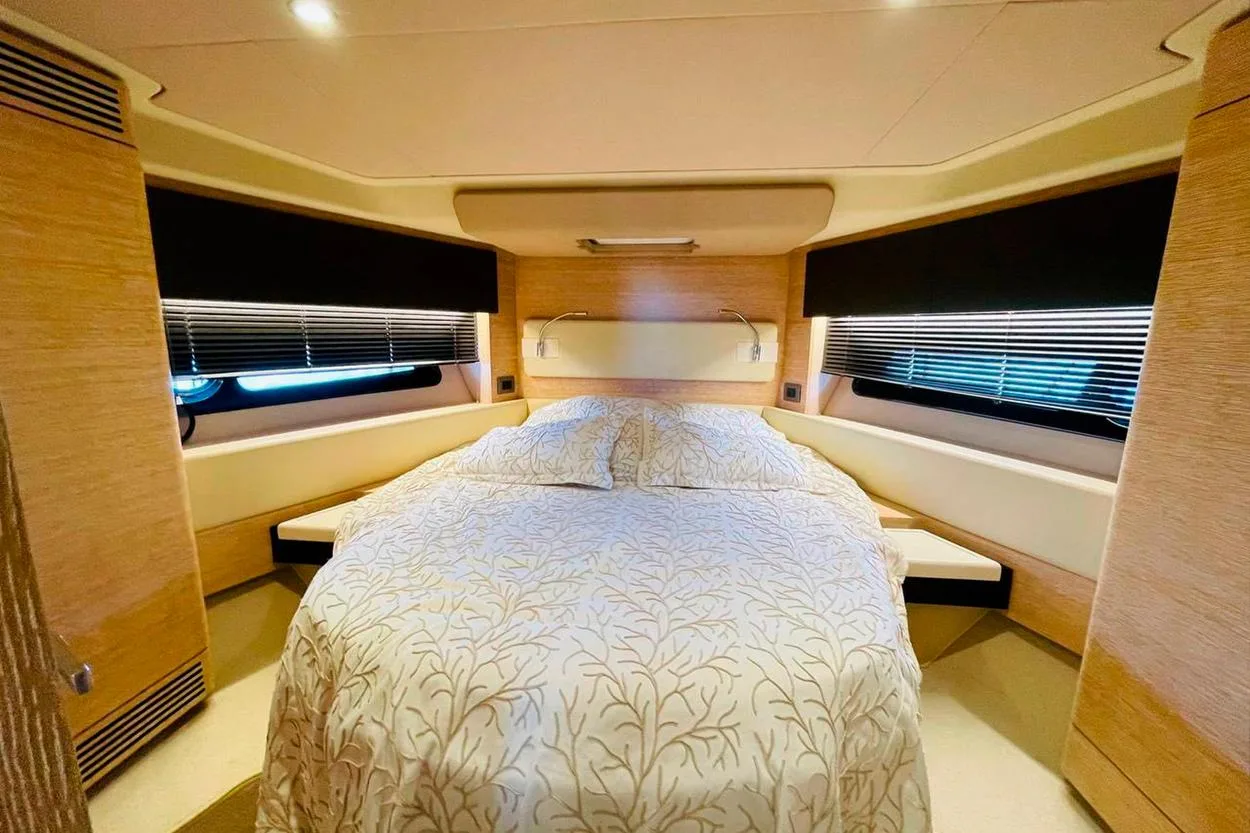

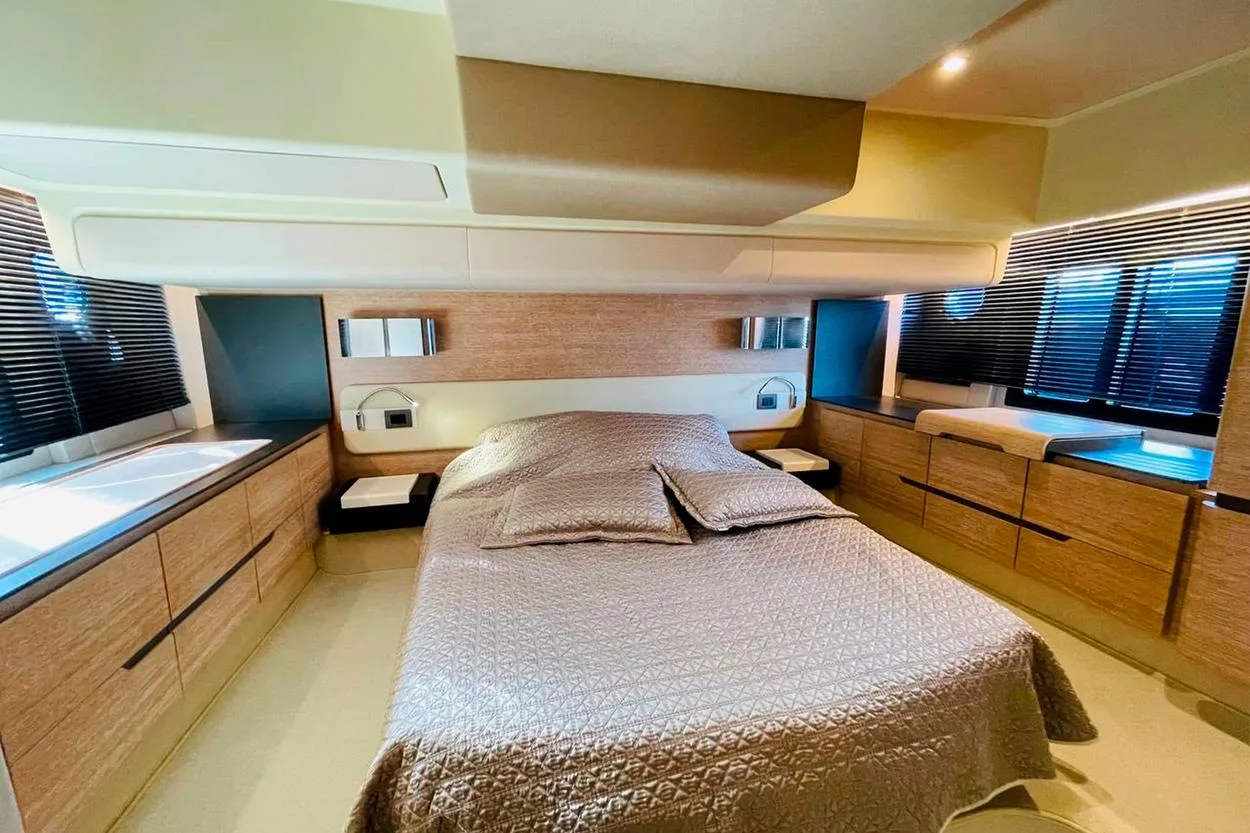

Owner’s cabin
- Double bed placed in the center astern with headboard
- 2 bedside tables
- Vanity unit with mirror
- Provision for TV system
- 220 V sockets
- Air conditioning system control panel (if A/C installed)
Starboard side guest cabin
- 2 fixed bunk beds
- Sockets
- Air conditioning system control panel (if A/C installed)
VIP cabin
- Air conditioning system control panel (if A/C installed)
- 220 V sockets
Electric system / Generator / Shore power sockets / Batteries
- Shore-powered power supply
- - 230V-50Hz AC
- - 24V DC from battery bank
- - 12V DC for VHF equipment and cigarette lighter socket
- 1 standard 3.5 kW 230V generator in engine room
- 1 50A socket astern
- 1 for air conditioning (OPT)
- Services: 6 AGM type batteries, 270 Ah 24V DC,
- Engines: 4 AGM type batteries, 180 Ah 24V DC,
- Generator: 1 AGM type batteries, 70 Ah 12V,
- 24 V battery charger: 24/60 3 Out- 60A-10A-10°
- 12V battery charger:12/15 2 Out- 15°
Fuel system
- 2 aluminum tanks in engine room with a capacity of 1100 l and a total capacity of 2200 l
- Electronic fuel level indicator on starboard tank
- Remote diesel shut-off (engine and generator) via 24V solenoid valve
- Pipe connecting the two tanks to adjust the fuel level
- Fuel drawing tap on starboard tank
Fresh water system
- 590 l polyethylene tank located under the bed in owner's cabin
- 1 water heater, 40 l
Seawater system
- Engine cooling system: includes 2 x 2" seawater intakes with filter and valve (1 per engine)
- Generator cooling system: includes 1x1" seawater intake with filter and valve
- Air conditioning cooling system: 1x1" seawater intake with filter and valve
- Chain wash pump: 1x 1/2 " seawater intake with filter and valve
Ventilation/extraction
- Head ventilation: forced extraction by way of 24V extractors
- Engine room:
- - Natural air intake through air duct with water separator (1 each side)
- - Forced ventilation: 2x24V extractors (1 each side)
Other systems
- Steering system: hydraulic power steering with 2 round profile rudders.
- Trim tab system: consisting of 2 AISI 316 blades, operated by a hydraulic cylinder, 24V electro-hydraulic control unit
Equipment
- 1 telescopic boat hook
- 5 anchor lines
- 18 m fender lines
- 1 anchor chain stopper
- 6 fenders
- 6 black fender covers
- 1 Owner's Manual
- 1 white book, 2014 edition, English
- 1 AZIMUT warranty service booklet
- 1 bottle of "MONSORDO MAGNUM"
- 3 float key-rings
- 1 bag (with logo) for storing the manuals
- 1 remote control holder (with logo)
- 1 routine maintenance kit for steels
- 1 pin wrench for locking stainless steel pins
